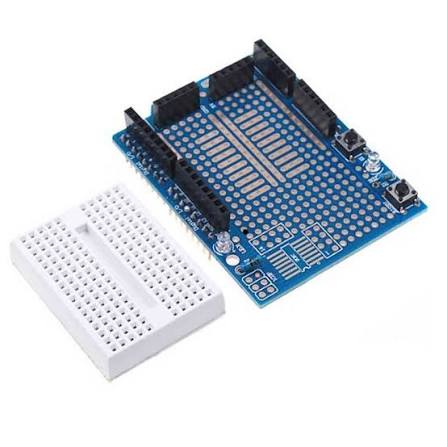

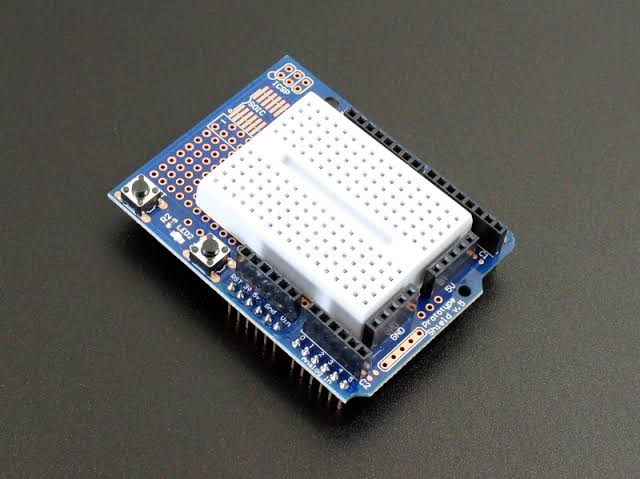

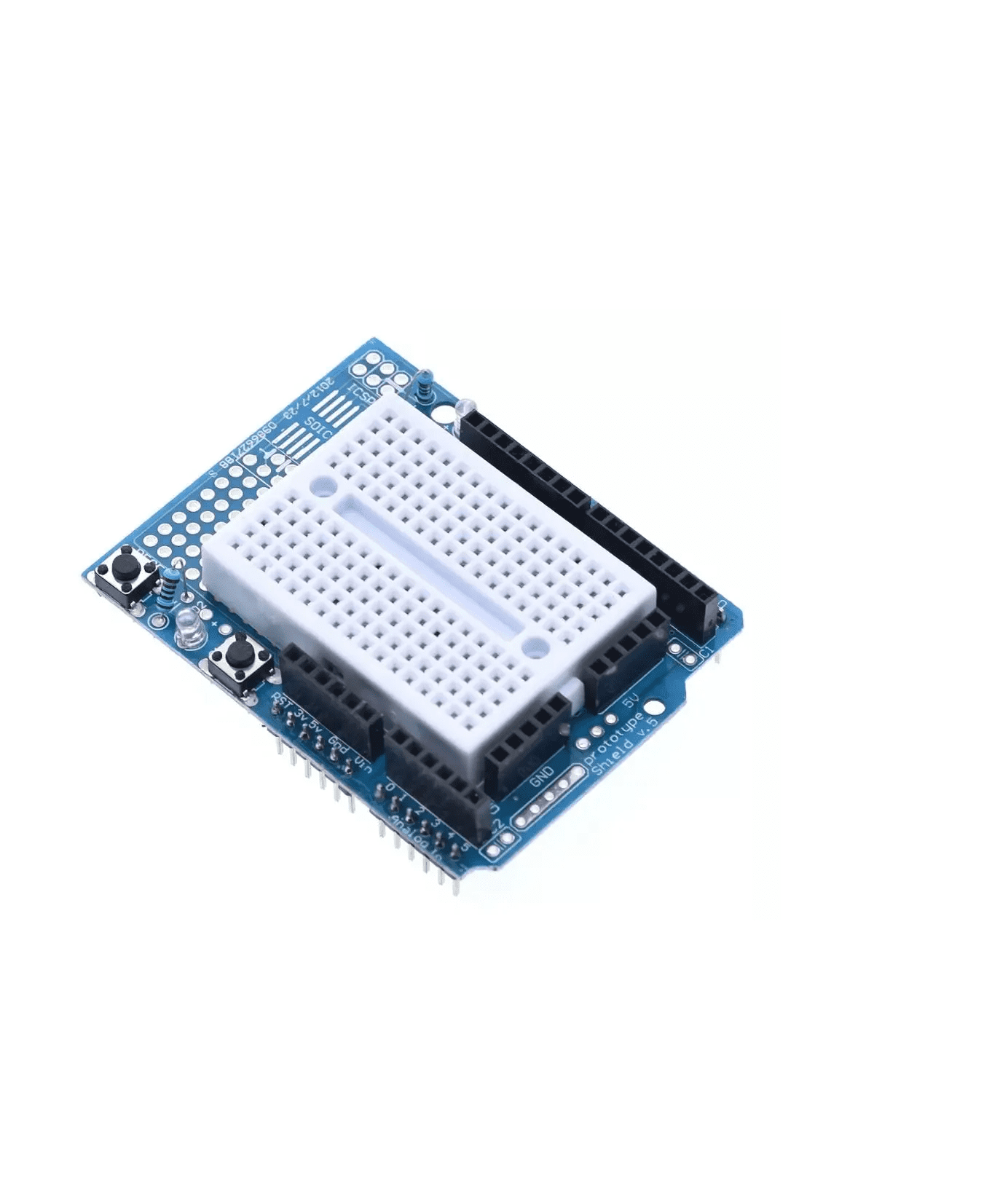

SPIDER Automation UNO Proto Shield with SYB-170 Mini Breadboard | Arduino Prototyping & Development Expansion Board
Description
The SPIDER Automation UNO Proto Shield Prototype Expansion Board with SYB-170 Mini Breadboard is engineered to streamline custom circuit design and hardware testing for Arduino Uno developers. By combining a flexible solderless breadboard with a robust, gold-plated prototyping area, this expansion board allows you to quickly evaluate circuit concepts or permanently solder custom components directly onto a single, integrated module.
Designed with full pin breakouts, power rails, onboard indicator LEDs, push buttons, and surface-mount chip areas, this shield delivers the ultimate workspace for building, testing, and deploying custom microcontroller circuits without messy wiring setups.
Key Features
- Standard Prototyping Grid: Features a clean 0.1″x0.1″ grid layout with large, durable gold-plated pads.
- Removable Mini Breadboard: Comes with a 170-point SYB-170 breadboard attached via double-sided adhesive for quick solderless testing.
- Complete Pin Breakout: All Arduino I/O pins and power lines are fully brought out for easy access.
- Onboard User Interface: Includes a dedicated reset button, an extra general-purpose button, and two 3mm LEDs (red and green) with current-limiting resistors.
- IC & Surface-Mount Support: Accommodates up to 20-pin DIP integrated circuits and up to 14 SOIC surface-mount parts.
- Stackable Design: Supplied with stacking headers, plain headers, and a pass-thru ICSP header to stack multiple shields or connect an AVR programmer.
- Power Stability: Integrated 0.1μF capacitors on both sides ensure clean power delivery.
Benefits
- Rapid Circuit Validation: Test ideas on the fly using the mini breadboard before committing to permanent soldering.
- Clean Modular Assembly: Combines your custom circuit and Arduino Uno controller into a single, compact, and professional unit.
- Versatile Prototyping: Supports both through-hole and surface-mount components on a single shield.
-
Enhanced Durability: Gold-plated pads and heavy-duty construction ensure long-lasting performance in test benches and R&D labs.
Applications
- Embedded Systems Prototyping: Building and testing custom electronic circuits for Arduino-based projects.
- Educational & Laboratory Training: Ideal for teaching microcontroller circuit design, electronics, and physical computing.
- R&D Test Benches: Rapidly prototyping sensor integration, signal conditioning, and custom control interfaces.
-
Custom Automation Builds: Creating dedicated controller sub-assemblies for industrial and hobbyist automation systems.
Package Includes
- 1 x UNO Proto Shield Prototype Expansion Board
- 1 x SYB-170 Mini Breadboard
- 1 x Stacking Headers & Plain Header Set
Specifications
| Item Type | Prototyping Expansion Shield with Breadboard |
| Brand / Series | SPIDER Automation |
| Model Type | Expansion Shield |
| Compatibility | Arduino Uno |
| Breadboard Specs | 170 Tie-Points | Size: 48 × 34 mm |
| Shield Dimensions | 70 × 54 mm |
| Board Weight | 30 g |
| Shipping Weight | 0.033 kg |
| Shipping Dimensions | 9 × 5 × 2 cm |
