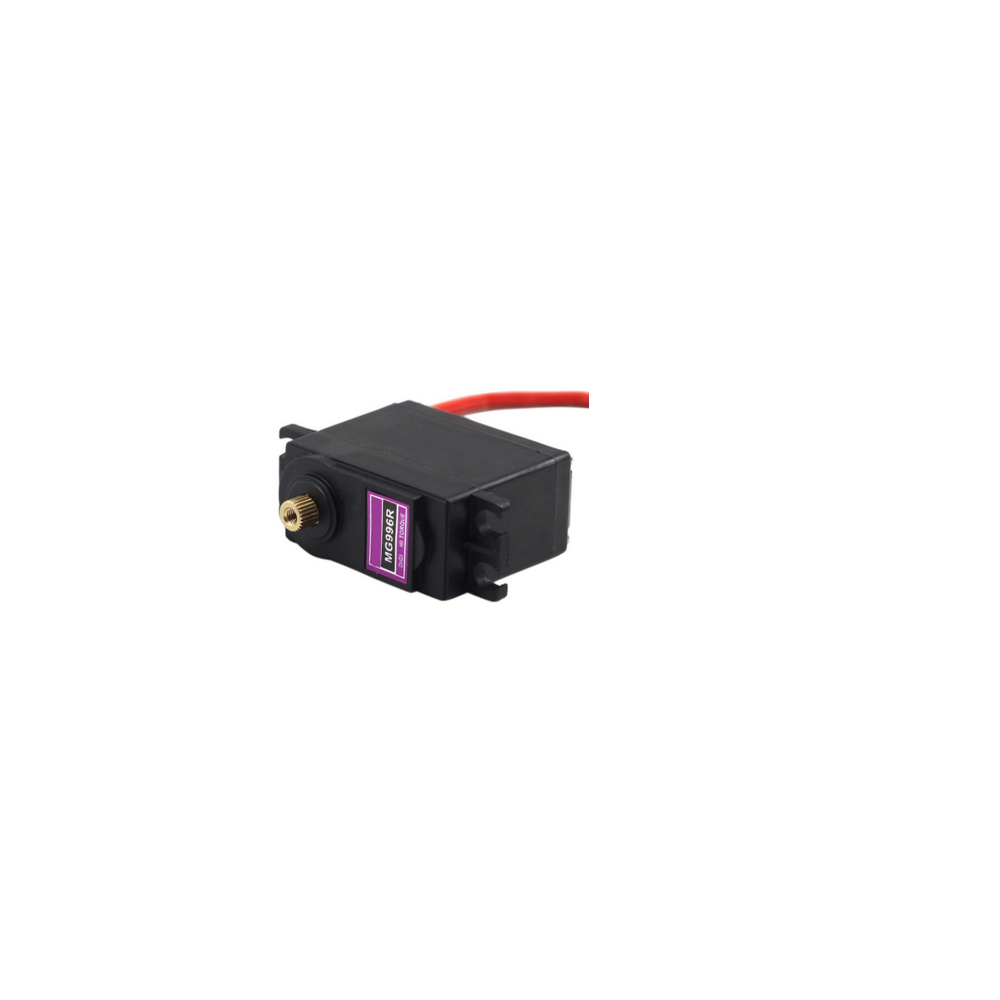

(SPIDER Automation) TowerPro MG996R Digital High Torque 360-Degree Continuous Rotation Metal Gear Servo Motor (9.4-11 KG)

TowerPro MG996R Digital 360-Degree Servo Motor (9.4-11 KG) | Standard Servo Motor | RC Models & Robotics

Description

Bring heavy-duty continuous movement to your builds with the SPIDER Automation TowerPro MG996R Digital High Torque 360-Degree Continuous Rotation Servo Motor. Upgraded with an aluminum 6061-T6 gear set and shaft that outperforms traditional copper components in both strength and weight, this CE and RoHS approved digital servo delivers robust stall torque ranging from 9.4 to 11 kg-cm. Featuring a universal “S” type JR connector compatible with a wide array of radio control receivers and an included accessory set, it is an ideal motion solution for robotics, automated platforms, and custom hobby projects.

Key Features

• 360-Degree Continuous Rotation: Full rotational freedom optimized for continuous drive wheels, mobile robot platforms, and rotating mechanisms.
• Upgraded Aluminum 6061-T6 Components: Upgraded internal gear set and shaft forged from aluminum 6061-T6, offering higher strength and lighter weight than copper.
• 9.4 to 11 kg-cm Torque Range: High-strength pulling force scaling from 9.4 kg-cm at 4.8V up to 11 kg-cm at 6.6V DC input.
• Universal JR Plug Compatibility: Versatile “S” type connector fitting most receivers including Futaba, JR, Hitec, GWS, Cirrus, Blue Bird, Corona, Berg, and Spektrum.
• CE & RoHS Certified: Manufactured to meet standard compliance and safety guidelines for electronic components.

Benefits

• Cost-Effective High Torque: Provides accessible heavy-duty continuous rotation performance at an affordable, budget-friendly price point.
• Comprehensive Accessory Package: Ships complete with servo arms, fastening screws, and parts compatible with Futaba mounting standards.
• Fast Control Response: Features responsive operating speeds down to 0.15 sec/60° at 6.6V for agile directional adjustments.
• Standard Color-Clear Pinout: Easy-to-follow wiring harness featuring Red (Positive), Brown (Negative), and Orange (Signal).
• Reliable Thermal Window: Engineered to operate smoothly across an ambient temperature range from 0°C to 55°C.

Applications

• Continuous Drive Robots: Wheel drive actuators for small mobile robot chassis, rovers, and automated transport carts.
• Rotating Sensor Mounts: Continuous scanning mechanisms for ultrasonic distance finders, LIDAR units, or surveillance cameras.
• Custom RC Modifications: Specialty winch systems, motorized mechanical props, and non-centering accessory controls.
• Mechatronic Prototyping: Arduino and microcontroller-based educational test rigs and automated mechanical displays.
• Interactive Exhibits: Moving mechanical art installations, automated showcase displays, and dynamic interactive props.

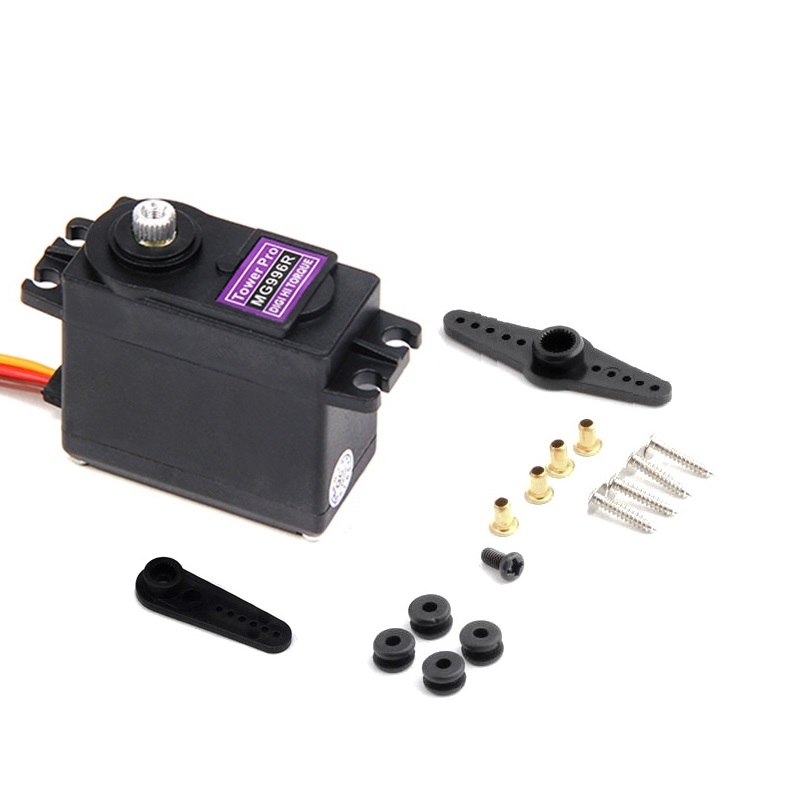

Package Includes

• 1 x TowerPro MG996R Digital High Torque Servo Motor
• 1 x Set of Accessories & Parts (Servo Arms & Mounting Screws)

Specifications
