SPIDER Automation TowerPro MG945 12KG Metal Gear Servo | Digital Servo Motor | RC & Robotics
Description
Bring reliable motion control and precise actuation to your hobby builds with the SPIDER Automation TowerPro MG945 Digital High-Speed Servo Motor. Built with upgraded 6061-T6 aluminum and metal gear sets for enhanced structural strength, this affordable digital servo delivers solid holding power ranging from 10 to 12 kg-cm. Designed with a universal “S” type connector and a 32 cm wire harness, it integrates effortlessly into a wide array of remote-controlled vehicles, aircraft, and mechatronic setups.
Key Features
- 10 to 12 kg-cm Torque Rating: Balanced pulling and holding strength to manage standard robotic resistance and steering setups.
- Upgraded 6061-T6 Components: Servo gear set and shaft built with high-grade aluminum, offering superior strength and lighter weight than copper.
- Metal Gear Train: Durable internal metal gears designed to handle routine operational friction and mechanical stress.
- Universal “S” Connector: Broad compatibility matching most standard receivers including Futaba, JR, Hitec, Spektrum, and more.
- Generous Wire Length: 32 cm cable configuration allows flexible routing across your custom chassis or mechanical assembly.
Benefits
- Cost-Effective Reliability: Delivers dependable digital actuation performance at an accessible budget point.
- Wide Receiver Compatibility: JR plug layout fits seamlessly with multiple leading remote-control brands.
- Complete Accessory Kit: Ships with matching servo arms, hardware, and accessories for immediate installation out of the box.
- Optimized Operating Window: Performs efficiently across a 4.8V to 6.6V DC voltage spectrum for standard power setups.
- Certified Quality Standards: Built to CE and RoHS approved safety and environmental manufacturing guidelines.
Applications
- RC Aircraft & Gliders: Standard control surface movement, flaps, and throttle positioning.
- Robotics & Automation: Multi-purpose robotic joints, automated educational kits, and mechanical test jigs.
- Custom RC Vehicles: Steering mechanisms and throttle controls for standard cars, trucks, and crawlers.
- Mechatronic Prototyping: Custom experimental hobby rigs requiring standard pulse-width positional control.
- Interactive Displays: Small-scale moving models, educational automation demos, and moving mechanisms.
Package Includes
- 1 x TowerPro MG945 Digital High-Speed Servo Motor

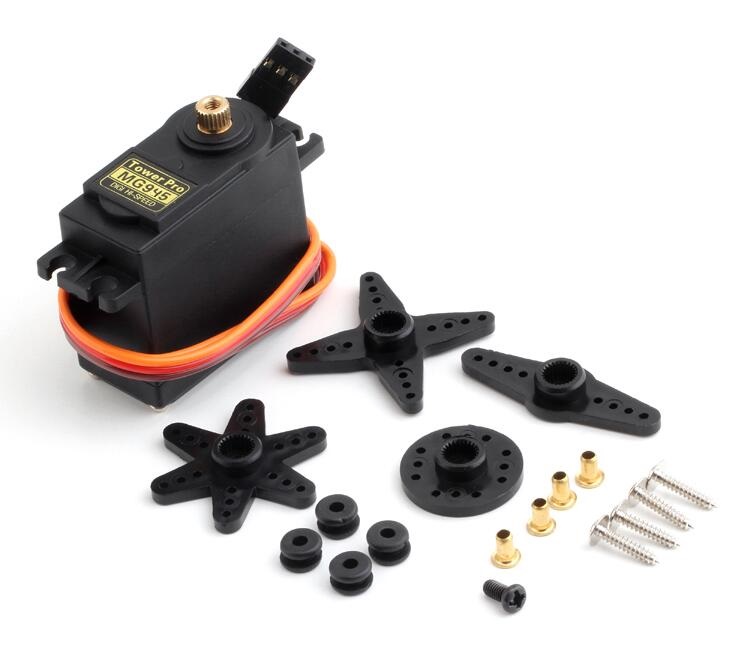

- 1 x Accessories Set (Servo Arms & Screws)
Specifications
| Parameter | Specification |
|---|---|
| Item Type | Digital Metal Gear Servo Motor |
| Brand | SPIDER Automation |
| Model Series / No. | MG Series / MG945 |
| Torque Rating | 10 kg-cm to 12 kg-cm |
| Operating Voltage Range | 4.8V ~ 6.6V DC |
| Stall Torque @ 4.8V | 10.0 kg-cm |
| Stall Torque @ 6.6V | 12.0 kg-cm |
| Operating Speed @ 4.8V | 0.23 sec / 60° (at no load) |
| Operating Speed @ 6.6V | 0.20 sec / 60° (at no load) |
| Operating Temperature Range | 0°C ~ 55°C |
| Gear & Shaft Material | Metal Gears / Upgraded 6061-T6 Aluminum Shaft & Gears |
| Power Supply Method | Through External Adapter |
| Connector & Wire Type | 32 cm Wire with Universal “S” Type JR Plug |
| Physical Length | 40.7 mm |
| Certifications | CE & RoHS Approved |
| Shipping Weight | 0.067 kg |
| Shipping Dimensions | 13 x 10 x 5 cm |
