TowerPro MG90S Micro Digital 360-Degree Servo Motor (1.8-2.2 KG) | Micro Servo Motor | RC Models & Robotics
Description

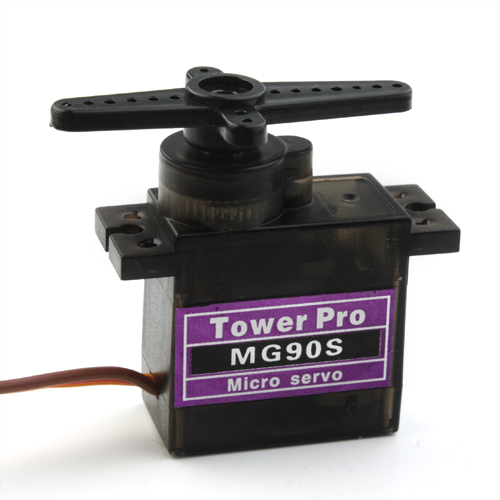

Add continuous motion and compact power to your small-scale builds with the SPIDER Automation TowerPro MG90S Micro Digital Metal Gear 360° Continuous Rotation Servo Motor. Combining high resolution, accurate positioning, and fast control response, this micro servo delivers reliable holding and driving power ranging from 1.8 to 2.2 kg-cm. Built with durable internal metal gears and optimized for 4.8V to 6.6V DC power inputs, it is an economical motion solution for mini robotics, RC models, and creative engineering prototypes.
Key Features
- 360-Degree Continuous Rotation: Full rotational capability tailored for continuous drive wheels, rotating sensors, and mobile robot platforms.
- 1.8 to 2.2 kg-cm Torque Range: Reliable actuation force scaling from 1.8 kg-cm at 4.8V up to 2.2 kg-cm at 6.6V.

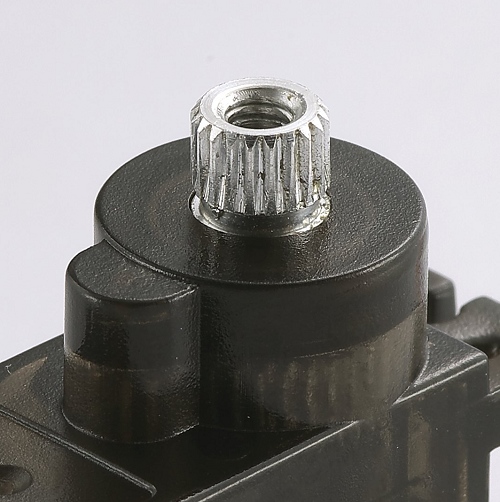

- Metal Gear Internal Train: Robust metal gears designed to resist wear and tear under routine hobbyist usage.
- High Resolution & Fast Response: Quick control response times (down to 0.08 sec/60° at 6.6V) for agile directional adjustments.
- Compact Micro Size: Lightweight architectural footprint optimized for space-constrained chassis designs.
Benefits
- Cost-Effective Motion: Provides accessible continuous rotation performance for budget-conscious makers and students.
- Comprehensive Horn Set: Includes one-point, two-point, and four-point servo horns for diverse linkage setups.
- Mounting Hardware Included: Ships complete with a dedicated set of mounting screws for immediate installation.
- Flexible Operating Window: Performs efficiently across standard 4.8V to 6.6V power supplies.
- Wide Application Potential: Excellent choice for educational robotics, small RC vehicles, and custom DIY gadgets.
Applications
- Mini Mobile Robots: Continuous rotation drive wheels for small two-wheel-drive or four-wheel-drive robot chassis.
- Rotating Sensor Mounts: Continuous scanning mounts for ultrasonic sensors, LIDAR units, or small cameras.
- Micro RC Models: Compact remote-controlled cars, micro airplanes, and specialty engineering props.
- Mechatronic Prototyping: Arduino and microcontroller-based educational test rigs and mechanical models.
- Interactive Displays: Small-scale rotating art installations, moving props, and automated showcase exhibits.
Package Includes
- 1 x TowerPro MG90S Micro Digital 360-Degree Continuous Rotation Servo Motor
- 1 x Set of Horns (One-Point, Two-Point, Four-Point)
- 1 x Set of Mounting Screws
Specifications
| Parameter | Specification |
|---|---|
| Item Type | Micro Digital Servo Motor |
| Brand | SPIDER Automation |
| Model Series / No. | MG Series / MG90S |
| Rotation Type | 360-Degree Continuous Rotation |
| Torque Rating | 1.8 kg-cm to 2.2 kg-cm |
| Operating Voltage Range | 4.8V ~ 6.6V DC |
| Stall Torque Performance | 1.8 kg-cm @ 4.8V | 2.2 kg-cm @ 6.6V |
| Operating Speed | 0.10 sec / 60° @ 4.8V | 0.08 sec / 60° @ 6.6V |
| Rotor Diameter | 4.8 mm |
| Operating Temperature Range | 0°C ~ 55°C |
| Gear Type | Metal Gear Train |
| Shipping Weight | 0.025 kg |
| Shipping Dimensions | 8 x 5 x 2 cm |
