TowerPro SG90 9g Mini Servo Motor (180-Degree) (1.2 KG) | Micro Servo Motor | RC Models & Robotics
Description
Bring precise angular control and affordable motion to your lightweight builds with the SPIDER Automation TowerPro SG90 9g Mini Servo Motor. Imported from trusted suppliers as a high-quality alternative that closely rivals the original TowerPro SG90 1.2kg-cm 180-degree servo, this unit delivers high resolution, accurate positioning, and constant torque throughout its travel range. Equipped with a standard color-coded wiring harness and comprehensive horn accessory set, it provides an economical and reliable actuation solution for RC aircraft, automobiles, and DIY robotics projects.
Key Features
- 180-Degree Rotation Limit: Precision-controlled angular movement tailored for steering mechanisms, control surfaces, and robotic joints.
- 1.2 kg-cm Torque Rating: Dependable holding and actuation force designed for small-scale hobbyist applications.
- High Resolution & Precision: Advanced internal mechanics engineered for accurate positioning and fast control response.
- Trusted Supplier Sourcing: Carefully selected good-quality clone components tested to ensure reliable performance for the price.
- Standard Pinout Layout: Color-coded wiring harness featuring RED (Positive), Brown (Negative), and Orange (Signal).
Benefits
- Cost-Effective Reliability: Provides dead-cheap, dependable micro-servo performance for budget-conscious projects and makers.
- Comprehensive Accessory Kit: Ships complete with one-point, two-point, and four-point horn configurations alongside mounting screws.
- Constant Travel Torque: Maintains steady holding power and smooth movement across the entire rotation range.
- Easy Microcontroller Integration: Compatible with Arduino, standard microcontrollers, and hobby radio control receivers.
- Versatile Application Potential: Excellent choice for educational robotics, custom RC models, and creative DIY builds.
Applications
- RC Aircraft & Drones: Control surface positioning, ailerons, elevators, and lightweight micro rudder linkages.
- Compact RC Vehicles: Steering mechanisms and throttle controls for miniature remote-controlled cars and buggies.
- Robotics & Automation: Compact educational robotic arms, pan-tilt camera gimbals, and small mechanical jigs.
- Mechatronic Prototyping: Arduino and microcontroller-based DIY hobby builds and precision mechanical prototypes.
- Interactive Displays: Moving mechanical props, automated showcases, and dynamic art display mechanisms.
Package Includes

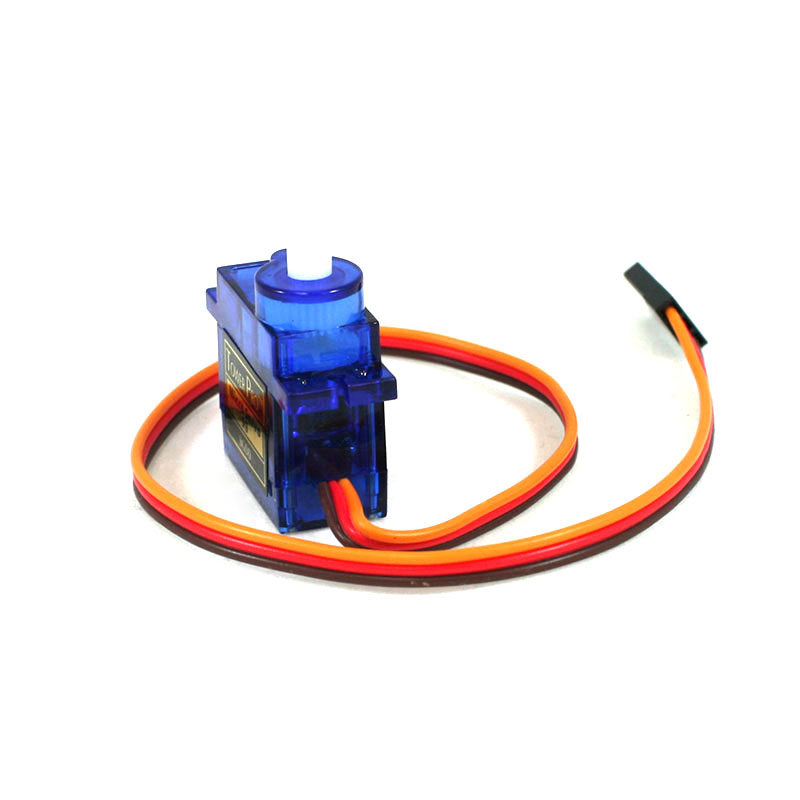

- 1 x TowerPro SG90 9g Mini Servo Motor with Cable
- 1 x Set of Horns (One-Point, Two-Point, Four-Point)
- 1 x Set of Screws
Specifications
| Parameter | Specification |
|---|---|
| Item Type | Micro Servo Motor |
| Brand | SPIDER Automation |
| Model Series / No. | SG Series / SG90 |
| Rotation Range | 180 Degrees |
| Torque Rating | 1.2 kg-cm |
| Stall Torque Performance | 1.2 kg-cm @ Standard Operating Parameters |
| Wiring Pinout | RED (Positive / VCC), Brown (Negative / GND), Orange (Signal / PWM) |
| Shipping Weight | 0.012 kg |
| Shipping Dimensions | 9 × 7 × 1 cm |
