Description

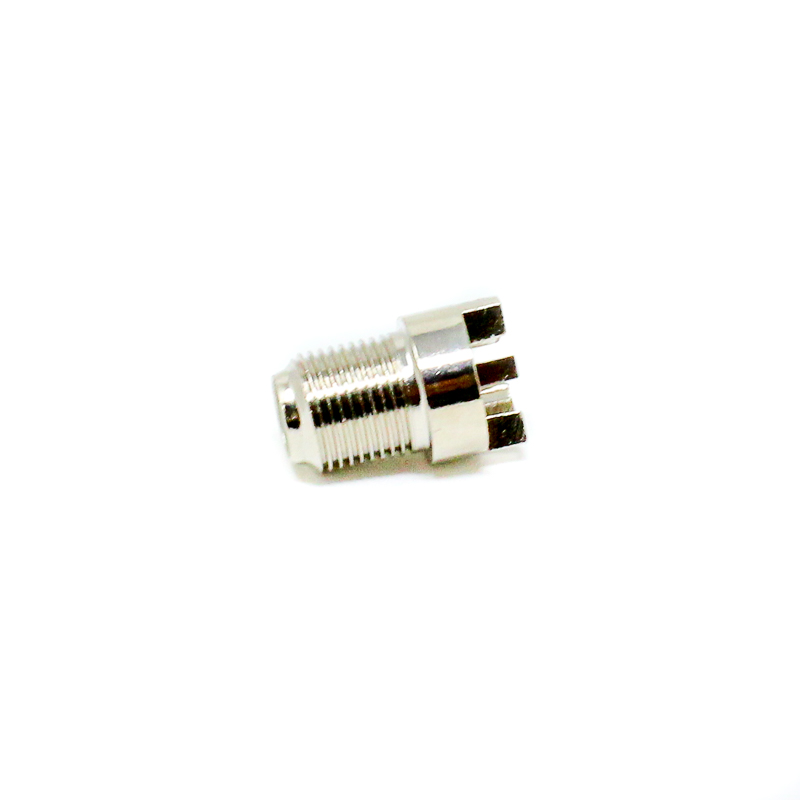

The TNC Female Bulkhead Connector is a high-performance RF interface designed for secure, waterproof, and reliable signal transmission. Engineered for compatibility with RG59 coaxial cables, this connector features a robust bulkhead mounting design, making it an excellent choice for panel-mount applications in communication systems, aviation controls, and industrial instrumentation.
This TNC connector utilizes a threaded coupling mechanism (7/16-28 thread) to provide superior stability and vibration resistance compared to standard bayonet-style connectors. Its durable zinc alloy construction with nickel plating ensures long-term resistance to corrosion and environmental stress. With a mechanical lifespan of over 500 mating cycles and compliance with rigorous military-grade standards (MIL-STD-202), this connector is built to deliver consistent signal integrity in mission-critical environments.
Note: Refer to the schematic image for detailed dimensional specifications to ensure proper panel cutout and cable compression compatibility.
Features
- TNC Female Bulkhead Jack (Straight/180°)
- Waterproof design for outdoor and harsh environment applications
- Compression/Crimp-style termination for permanent, low-loss signal paths
- Threaded coupling (7/16-28 thread) for high-vibration stability
- Durable nickel-plated zinc alloy construction
- Compliant with MIL-STD-202 standards for vibration and corrosion resistance
- Designed for RG59 coaxial cables
Benefits
- Threaded interface ensures a superior, vibration-resistant connection
- Waterproof sealing protects internal components in outdoor installs
- High-grade materials ensure long service life (≥500 mating cycles)
- Versatile panel/cable mounting for flexible system integration
- Reliable performance across a wide temperature range (-65°C to +145°C)
Applications
- Cellular and Mobile Communication Systems
- Aviation and Aerospace Control Panels
- GPS, Bluetooth, and Telemetry Infrastructure
- Wireless Base Stations and Radar Equipment
- Machine-to-Machine (M2M) Communication
- Security Devices and Industrial Instrumentation
- Antenna Mounts and Microwave Components
Package Includes
- 1 x TNC RG59 Female Bulkhead Compression Connector
Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Straight (180°) |
| Gender | Female (Jack) |
| Mounting Type | Panel Mount / Cable Mount |
| Mounting Feature | Bulkhead |
| Termination Style | Crimp/Compression Type |
| Body Material | Zinc Alloy |
| Body Plating | Nickel Plating |
| Impedance | 50 Ω |
| Operating Temperature | -65°C to +145°C |
| Shipping Weight | 0.01 kg |
