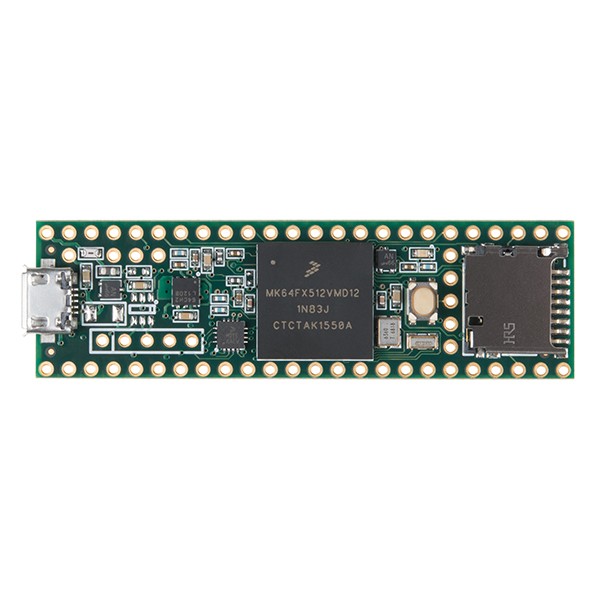

SPIDER Automation Teensy 3.5 Development Board | 120MHz ARM Cortex-M4
Description
SPIDER Automation Teensy 3.5 Development Board is a complete, USB-based high-performance microcontroller system designed for demanding embedded projects. Powered by an MK64FX512VMD12 32-bit ARM Cortex-M4 processor running at 120 MHz with a hardware floating-point unit, the Teensy 3.5 packs incredible computing muscle, ample memory, and extensive peripheral support into a compact breadboard-friendly footprint.
Pre-flashed with a bootloader, the Teensy 3.5 allows instant programming via its onboard USB connection without requiring an external hardware programmer. You can write code using C in your favorite editor or leverage the Teensyduino add-on for the Arduino IDE. With native USB device emulation, multiple DMA channels, 25 analog inputs, dual DACs, an Ethernet MAC, a CAN bus port, and a native 4-bit micro SD card socket, it provides an unmatched platform for advanced audio, sensor, and robotics projects.
Key Features
- 120 MHz ARM Cortex-M4 Processor: High-efficiency 32-bit core equipped with a floating-point unit (MK64FX512VMD12).
- Robust Memory Capacity: 512 KB of Flash memory, 192 KB of RAM, and 4 KB of EEPROM.
- 5V-Tolerant Digital Pins: All digital I/O pins are fully 5V tolerant and feature interrupt capabilities.
- Native Micro-SD Card Port: Onboard 4-bit SDIO socket for high-speed data logging and storage expansion.
- Extensive I/O Breakout: 62 total I/O pins (42 breadboard-friendly) arranged on a standard 0.1″ grid.
- High-Resolution Analog Peripherals: 25 analog inputs connected to dual ADCs with up to 13-bit resolution, plus 2 analog outputs (DACs) with 12-bit resolution.
- Industrial & Audio Interfaces: 1 CAN bus port, Ethernet MAC (100Mbit/sec), I2S digital audio port, 3 SPI ports, 3 I2C ports, and 6 serial ports.
- Hardware Timers & DMA: 14 hardware timers, 4 interval timers, a delay timer, and 16 general-purpose DMA channels.
- Security & Cryptography: Built-in cryptographic acceleration unit, random number generator, and CRC computation unit.
- USB Device Emulation: Full-speed USB (12Mbit/sec) port capable of emulating MIDI, keyboards, mice, and other HID devices.
Benefits
- Massive Prototyping Power: Upgraded clock speed, memory, and pin count handle complex algorithms and sensor fusion effortlessly.
- Frictionless Development: Seamless Arduino IDE integration via Teensyduino lets you reuse existing libraries instantly.
- Direct Peripheral Access: Native SD card, Ethernet, and audio ports eliminate the need for cumbersome breakout shields.
- Durable & Reliable: Fully assembled, tested, and ruggedly engineered for professional prototyping and embedded deployment.
Applications
- Advanced Audio Processing: Synthesizers, digital audio effects boxes, and multi-channel I2S recording rigs.
- Data Logging & Telemetry: High-speed sensor logging directly onto micro SD cards with real-time clock tracking.
- Custom USB HID Devices: Specialized MIDI controllers, macro keypads, and game simulation peripherals.
- Industrial Automation & Robotics: CAN bus communication nodes, motor control boards, and multi-sensor hubs.
Package Includes
- 1 x Teensy 3.5 Development Board

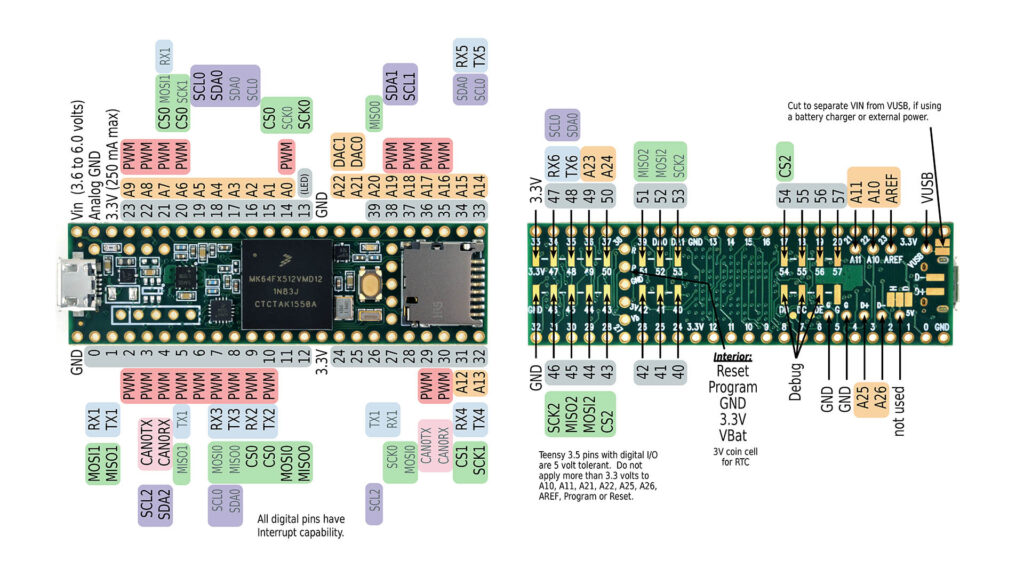

- 1 x Pinout Drawing Card
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Series | SPIDER Automation / PJRC Teensy Series |
| Item Type | Microcontroller Development System |
| Model Order Code / SKU | Teensy 3.5 / SKU-SPIDER-TEENSY-3.5 |
| Processor IC | MK64FX512VMD12 (ARM Cortex-M4 with FPU) |
| Core Architecture | 32-Bit ARM Cortex-M4 |
| Rated CPU Speed | 120 MHz |
| Flash Memory | 512 KB |
| RAM Capacity | 192 KB |
| EEPROM | 4 KB |
| Digital I/O Pins | 58 to 62 Total (42 Breadboard-Friendly, 5V Tolerant) |
| Analog Inputs / Outputs | 25 Analog Inputs (13-bit ADC), 2 Analog Outputs (12-bit DAC) |
| Communication Interfaces | 6 × Serial (UART), 3 × SPI, 3 × I2C, 1 × CAN Bus, Ethernet MAC, I2S Audio, Full-Speed USB |
| Storage & Timers | Native 4-bit Micro SD Card Port, 14 Hardware Timers, 16 DMA Channels |
| Board Dimensions | 62.3 mm × 18.0 mm × 4.2 mm |
| Package Shipping Weight | 0.030 kg (30 g) (Estimated standard board shipping weight) |
| Package Shipping Dimensions | 10 cm × 7 cm × 2 cm |
