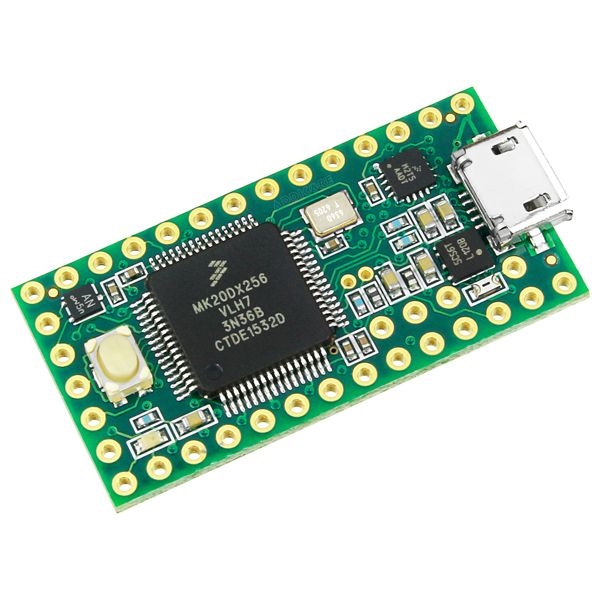

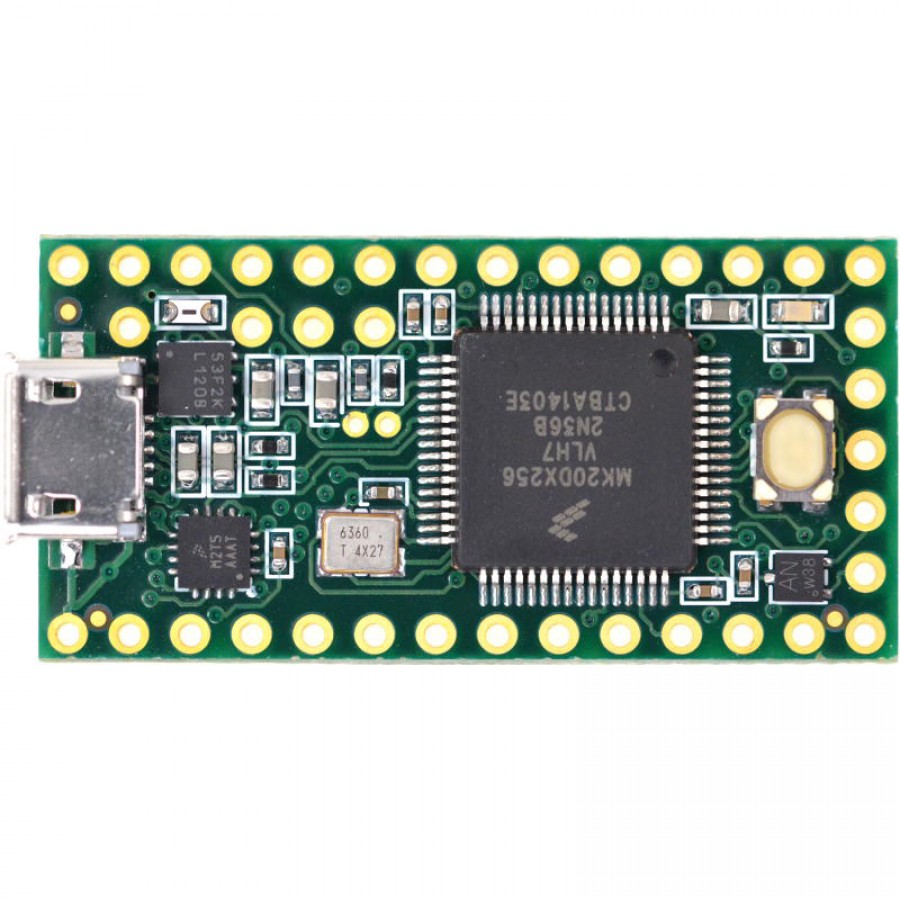

SPIDER Automation Teensy 3.2 Development Board | 72MHz ARM Cortex-M4
Description

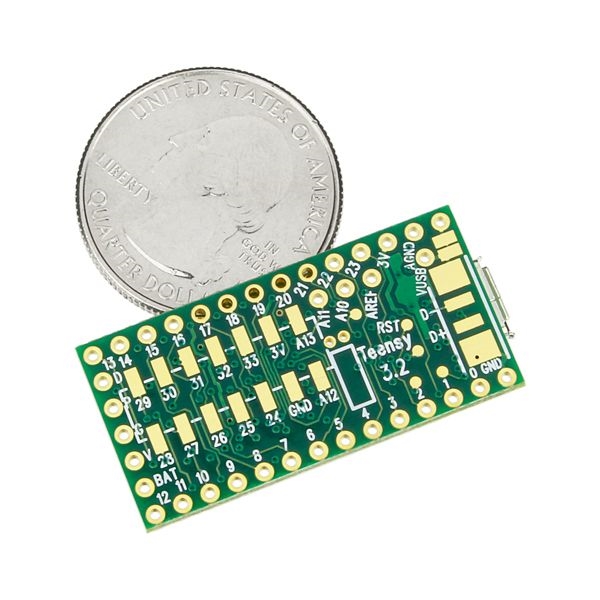

SPIDER Automation Teensy 3.2 Development Board is a direct, fully compatible evolution of the popular Teensy 3.1 architecture, engineered for serious number crunching and advanced embedded development. Measuring just 1.4 x 0.7 inches, this breadboard-friendly module packs an extraordinary array of high-end features into a tiny footprint, making it a favorite among engineers, audio designers, and makers.
Powered by a 32-bit ARM Cortex-M4 CPU running at 72 MHz with DSP extensions, the Teensy 3.2 includes an upgraded 3.3V regulator capable of delivering up to 250mA—allowing it to directly power external, power-hungry devices like ESP8266 Wi-Fi modules and WIZnet Ethernet boards. Pre-flashed with a USB bootloader, it enables instant code uploading via its micro-USB connector without requiring an external programmer, supporting both standard C editing and seamless integration into the Arduino IDE via Teensyduino.
Key Features
- 72 MHz ARM Cortex-M4 CPU: 32-bit processor core incorporating specialized DSP extensions for efficient mathematical calculations.
- Expanded Memory Capacity: 256 KB of Flash program memory, 64 KB of RAM for graphics or audio buffering, and 2 KB of EEPROM.
- Upgraded 3.3V Power Regulator: Provides up to 250mA regulated output current to reliably power peripheral communication modules.
- 5V-Tolerant Digital Pins: All standard digital I/O pins accept 5V logic signals directly, simplifying multi-voltage breadboard wiring.
- High-Resolution Analog Peripherals: 21 analog inputs (13 bits usable, 16-bit hardware resolution) paired with a true 12-bit DAC analog output.
- Extensive Communication Interfaces: CAN Bus, I2S digital audio interface, 3 UART serial ports, SPI, and 2 I2C interfaces.
- Hardware Timers & DMA: 7 independent interval/delay timers separate from PWM, plus 16 general-purpose Direct Memory Access channels.
- Native USB Device Emulation: Full-speed USB port capable of emulating USB-MIDI, keyboards, mice, joysticks, and custom HID devices.
Benefits
- Ample Overhead for Complex Tasks: 64KB RAM easily accommodates audio effects like reverb/chorus, complex sensor fusion algorithms, and color display graphics.
- Rugged Power Resilience: Input tolerance up to 6V (with regulator chip handling up to 10V) ensures stable operation under non-ideal power sources.
- Familiar Arduino Ecosystem: Fully supported by Teensyduino for instant compatibility with thousands of standard Arduino libraries.
- Compact & Breadboard Ready: Standard 0.1″ pin grid layout drops effortlessly into prototyping boards and custom carrier shields.
Applications
- Advanced Audio Processing: Custom synthesizers, digital effects boxes, and multi-channel I2S audio generation.
- IoT Gateways & Connected Nodes: Pairing seamlessly with ESP8266 Wi-Fi or WIZnet Ethernet shields powered directly from the board’s onboard regulator.
- Automotive & Robotics: CAN bus communication nodes, motor controllers, and multi-sensor navigation hubs.
- Custom USB Peripherals: Specialized MIDI music controllers, gaming flight sticks, and automated macro input devices.
Package Includes
- 1 x Teensy 3.2 Development Board
- 1 x Pinout Drawing Card
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Series | SPIDER Automation / PJRC Teensy Series |
| Item Type | Microcontroller Development Board |
| Model Order Code / SKU | Teensy 3.2 / SKU-SPIDER-TEENSY-3.2 |
| Core Architecture | 32-Bit ARM Cortex-M4 with DSP Extensions |
| Rated CPU Speed | 72 MHz |
| Flash Memory | 256 KB |
| RAM Capacity | 64 KB |
| EEPROM | 2 KB |
| Digital I/O Pins | 34 Total (16 shared with analog; 5V Tolerant on digital pins) |
| Analog Inputs / Outputs | 21 Analog Inputs (13-bit Usable / 16-bit Hardware), 1 × 12-bit DAC Analog Output |
| PWM Outputs | 12 PWM Channels |
| Communication Interfaces | 3 × Serial (UART), 1 × SPI, 2 × I2C, CAN Bus, I2S Audio, Infrared Modulator, Micro-USB |
| Hardware Timers & DMA | 7 Timers (Separate from PWM), 16 General-Purpose DMA Channels |
| Power Regulation | Up to 250 mA 3.3V Output (Max Input Voltage: 6V recommended, up to 10V absolute) |
| Board Dimensions | 1.4 in × 0.7 in (35 mm × 18 mm) |
| Package Shipping Weight | 0.015 kg (15 g) (Estimated standard board shipping weight) |
| Package Shipping Dimensions | 10 cm × 7 cm × 2 cm |
