Description
The TVCU06 Tact Switch (MPN: TVCU06) is an ultra-low-profile vertical push switch, specifically engineered for high-density surface-mount technology (SMT) applications. With an incredibly small footprint of just 4.5×4.5mm and a height of only 0.40mm, this switch is the perfect solution for modern, miniaturized electronic devices where every millimeter of board space is critical.
Despite its slim profile, the TVCU06 delivers a sharp, reliable tactile response, providing the precise and responsive input feedback that high-end users expect. Designed for modern manufacturing, it is fully reflow solderable and comes conveniently packaged in 12mm embossed tape, making it ideal for high-speed automated assembly lines. Whether utilized in mobile communication devices, portable cameras, or high-fidelity audio equipment, the TVCU06 provides a robust and efficient interface component.

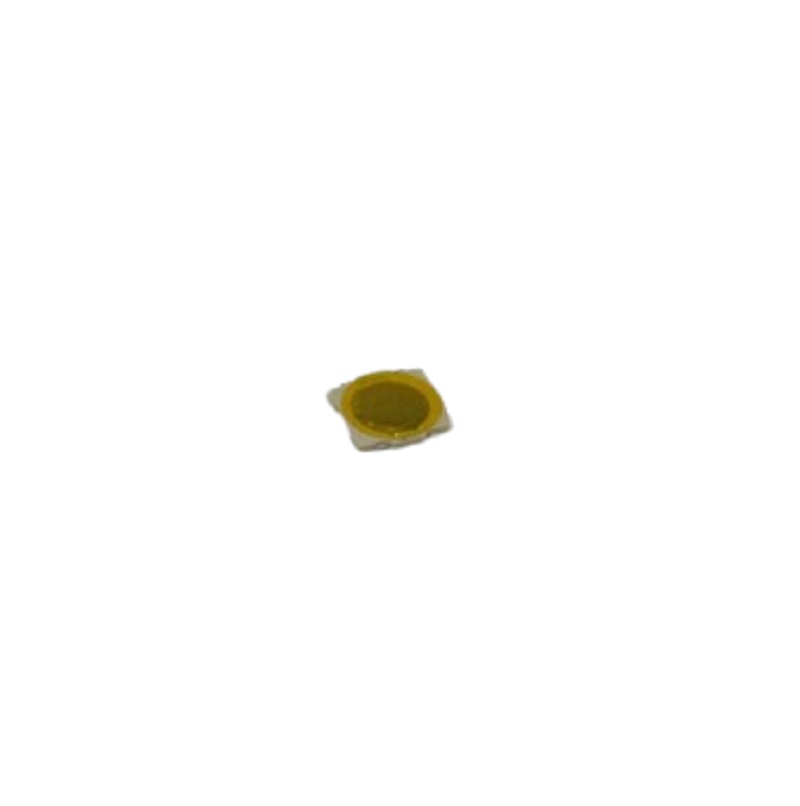

Note: Product images are for reference only. The actual product may vary slightly in appearance or manufacturer markings depending on stock availability.
Key Features
- Ultra-Low Profile: Measured at just 0.40mm in height, allowing for the design of extremely slim electronic enclosures.
- Compact Footprint: 4.5×4.5mm dimensions are optimized for high-density PCB layouts.
- Tactile Precision: Engineered to provide a sharp, positive click, ensuring clear user feedback for every activation.
- SMT/Reflow Ready: Fully compatible with lead-free reflow soldering processes, ensuring seamless integration into modern production.
- Automated Assembly: Supplied in 12mm wide embossed taping for easy use with standard pick-and-place machines.
- High-Density Compatibility: Specially designed for devices requiring multiple inputs in a very tight physical space.
Benefits
- Design Miniaturization: Enables the creation of thinner, more portable devices without sacrificing button functionality.
- Manufacturing Efficiency: Reflow solderability and embossed tape packaging significantly reduce assembly time and labor costs.
- User Experience: The distinct tactile feel maintains a high-quality “premium” touch sensation, even in small device interfaces.
- Reliability in Assembly: Engineered for stability on the PCB, reducing the risk of component misalignment during high-speed mounting.
- Versatile Application: Perfect for high-stakes consumer electronics where reliability and size are equally prioritized.
Applications
- Mobile Communication: Ideal for side-key controls, volume buttons, or power toggles in smartphones and portable radios.
- Imaging Technology: Reliable input for camera settings, menu navigation, and shutter triggers in portable devices.
- Audio/Video Gear: Perfect for control interfaces on compact audio recorders, portable players, and video playback systems.
- Wearable Tech: Well-suited for buttons on smartwatches, fitness trackers, and other compact health monitors.
- Portable Consumer Gadgets: A fundamental input component for modern tablets, handheld organizers, and e-readers.
- Professional Instrumentation: Suitable for front-panel triggers on high-precision portable diagnostic tools.
Package Includes
- 1 x Tact Switch-TVCU06-4.5×4.5mm
Specifications
| Parameter | Specification |
|---|---|
| Model | TVCU06 |
| Dimensions | 4.5 × 4.5 mm |
| Height | 0.40 mm |
| Mounting Type | SMT (Surface Mount) |
| Features | Low Profile, Reflow Solderable |
| Packaging | 12mm Embossed Tape |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 5 × 5 × 1 cm |
