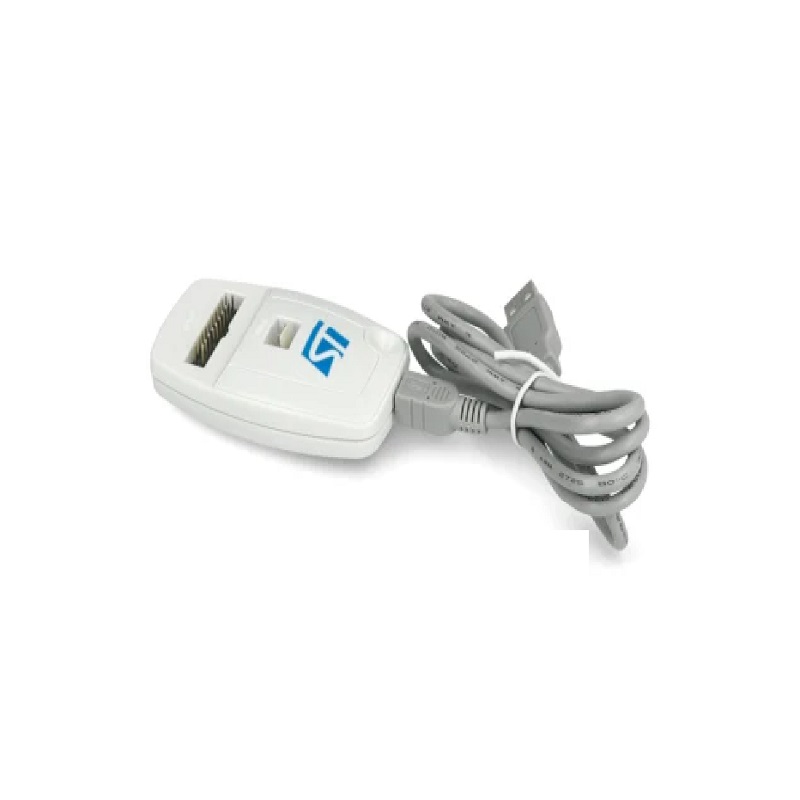

SPIDER Automation ST-LINK/V2 In-Circuit Debugger & Programmer | For STM8 & STM32
Description
The SPIDER Automation ST-LINK/V2 is an essential, high-performance in-circuit debugger and programmer engineered for STM8 and STM32 microcontroller applications. By leveraging standard SWIM and JTAG/SWD hardware interfaces, it enables seamless communication between your host PC and target development board for firmware flashing, real-time debugging, and hardware troubleshooting.
Powered directly via a standard USB full-speed interface, the programmer bridges development environments smoothly. STM8 applications interface natively through ST Visual Develop (STVD) or ST Visual Program (STVP) software, while STM32 designs integrate effortlessly with industry-standard toolchains including Keil MDK, IAR EWARM, Atollic, and Tasking. Complete with status feedback LEDs and robust built-in protection, it is the ultimate tool for professional embedded design engineers and hobbyists alike.
Key Features
- Universal Compatibility: Fully supports debugging and programming for both STM8 (via SWIM) and STM32 (via JTAG/SWD) architectures.
- USB 2.0 Full-Speed Interface: Plug-and-play connection with direct firmware update (DFU) support for future feature enhancements.
- Flexible Voltage Support: SWIM interface operates from 1.65V to 5.5V; JTAG/SWD interface supports 1.65V to 3.6V with 5V tolerant inputs.
- High-Speed Programming: Fast flash programming speeds up to 12.8 Kbytes/s on high-speed SWIM modes.
- Visual Status Indicator: Onboard status LED blinks actively during active communication sessions with the host PC.
- Ready-to-Use Accessory Bundle: Ships complete with a USB cable, SWIM ribbon, and JTAG connection cables out of the box.
Benefits
- Seamless IDE Integration: Works natively with a wide array of professional development environments and compilation suites.
- Target Board Safety: Wide voltage compatibility ensures safe connections across standard 3.3V and 5V microcontrollers.
- Rapid Firmware Iteration: Streamlined flashing workflow drastically cuts down development and testing cycles.
- Portable & Lightweight: Compact form factor easily fits into field toolkits and workbench drawers.
Applications
- STM32 & STM8 Embedded Development: Prototyping custom microcontroller hardware and testing firmware logic.
- Production Programming: Flashing compiled binaries onto manufactured circuit boards in small batches.
- Hardware Debugging & Diagnostics: Step-through code execution, breakpoint setting, and register inspection on target hardware.
- Educational & Laboratory Labs: Teaching microcontroller programming, assembly, and embedded C workflows.
Package Includes
- 1 x SPIDER Automation ST-LINK/V2 In-Circuit Debugger & Programmer
- 1 x USB Standard A to Mini-B Cable
- 1 x Dedicated SWIM Connection Cable
- 1 x Dedicated JTAG / SWD Connection Cable
Technical Specifications
| Parameter | Specification |
|---|---|
| Item Type | In-Circuit Debugger / Programmer |
| Brand | SPIDER Automation |
| Manufacturer / Model | STMICROELECTRONICS ST-LINK/V2 |
| Supported Devices | STM8 (via SWIM) & STM32 (via JTAG / SWD) Microcontrollers |
| Power Supply | 5V DC Powered via USB Connector |
| USB Interface | USB 2.0 Full-Speed Compatible |
| SWIM Voltage Range | 1.65V to 5.5V Application Voltage (Low & High Speed Modes) |
| JTAG / SWD Voltage Range | 1.65V to 3.6V Application Voltage (5V Tolerant Inputs) |
| Programming Speeds | SWIM: 9.7 Kbytes/s (Low Speed) / 12.8 Kbytes/s (High Speed) |
| Operating Temperature | 0°C to 50°C |
| Net Product Weight | 0.15 kg |
| Package Shipping Dimensions | 12 cm × 10 cm × 4 cm |
