SPIDER Automation NUCLEO-F207ZG STM32 Nucleo-144 Development Board | STM32F207ZG ARM Cortex-M3 MCU
Description

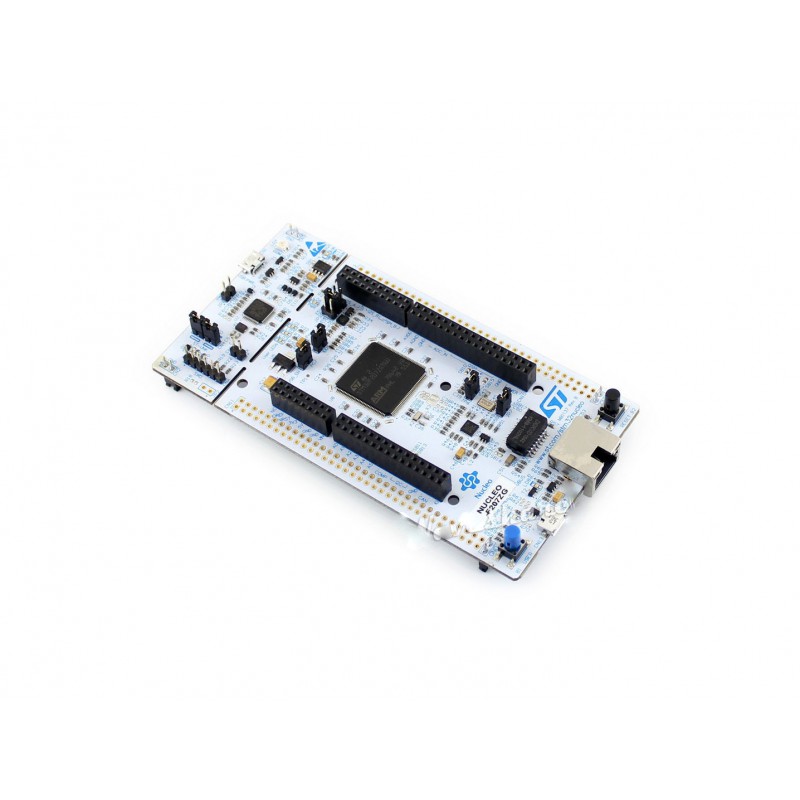

SPIDER Automation STMicroelectronics NUCLEO-F207ZG Nucleo-144 Development Board offers an affordable, flexible platform for engineers and makers to test concepts and build robust prototypes using the high-performance STM32F2 series. Driven by the STM32F207ZG 32-bit ARM Cortex-M3 RISC core running up to 120 MHz, this board integrates an Adaptive Real-Time (ART Accelerator) to achieve zero-wait state performance from Flash memory.
Equipped with an onboard IEEE-802.3-2002 compliant Ethernet controller, USB OTG capabilities, and extensive expansion options via ST Zio and ST Morpho headers, the NUCLEO-F207ZG excels in network-connected and data-intensive applications. It features an integrated ST-LINK/V2-1 debugger, three user LEDs, dual user and reset push-buttons, and full compatibility with major IDEs like STM32CubeIDE, IAR, and Keil.
Key Features
- STM32F207ZG Microcontroller: 32-bit ARM Cortex-M3 core operating up to 120 MHz with high-speed embedded memories.
- Onboard Ethernet MAC: IEEE-802.3-2002 compliant Ethernet port with dedicated DMA for reliable wired local networking.
- Integrated ST-LINK/V2-1 Debugger: Built-in programmer supporting USB re-enumeration for Virtual COM port, mass storage, and debug functions.
- ST Zio & Arduino Connectivity: Extended footprint expanding on Arduino Uno V3 limits to accommodate specialized application shields.
- ST Morpho Extension Headers: Comprehensive pinout headers offering complete uninhibited access to all microcontroller I/O lines.
- Precision Clock Source: Integrated 32.768 kHz LSE crystal oscillator for accurate real-time clock timing.
- Flexible Power Options: Powered via ST-LINK USB VBUS (5V) or external regulated sources (3.3V, 5V, 7–12V rails).
Benefits
- Complete Network Readiness: Onboard Ethernet port enables direct deployment of web servers, TCP/IP stacks, and IoT gateways without extra shields.
- Zero External Probe Needed: Built-in ST-LINK debugger allows immediate code flashing and debugging out of the box.
- Extensive I/O Expansion: 144-pin LQFP package breakout combined with Zio/Morpho connectors allows simultaneous module integration.
- Comprehensive Ecosystem Support: Fully supported by the STM32CubeF2 software HAL library and major commercial/open-source toolchains.
Applications
- Industrial IoT Gateways: Connected automation hubs interfacing with factory machinery and transmitting telemetry via Ethernet.
- Embedded Web Servers: Network-attached monitoring systems hosting local control dashboards.
- Advanced Motor Control & Robotics: High-speed processing tasks utilizing dedicated timers and extensive peripheral connectivity.
- Smart Building Automation: Centralized environmental monitoring nodes and security controllers.
- Embedded Systems Education: University laboratories teaching 32-bit architecture, networking protocols, and real-time operating systems.
Package Includes
- 1 x STMicroelectronics NUCLEO-F207ZG Development Board (STM32F207ZG MCU, On-Board Debugger, Arduino & Ethernet Compatible)
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Series | SPIDER Automation / STMicroelectronics STM32 Nucleo-144 Series |
| Item Type | ARM Microcontroller Development Board & Evaluation Platform |
| Model Name / Number | NUCLEO-F207ZG |
| Silicon Manufacturer | STMicroelectronics |
| Silicon Core Number | STM32F207ZG |
| Core Architecture | ARM 32-Bit RISC |
| Core Sub-Architecture | Cortex-M3 (with ART Accelerator, up to 120 MHz) |
| Embedded Debugger | On-Board ST-LINK/V2-1 Debugger / Programmer with USB Re-Enumeration |
| Ethernet Interface | IEEE-802.3-2002 Compliant Ethernet Controller with RJ45 Connector |
| Expansion Connectors | ARUINO Uno V3 / ST Zio Connector & ST Morpho Extension Headers |
| Crystal Oscillator | 32.768 kHz LSE Crystal |
| User Interface | 3 × User LEDs, 2 × Push-Buttons (USER and RESET) |
| Package Shipping Weight | 0.122 kg (122 g) |
| Package Shipping Dimensions | 26 cm × 17 cm × 4 cm |
