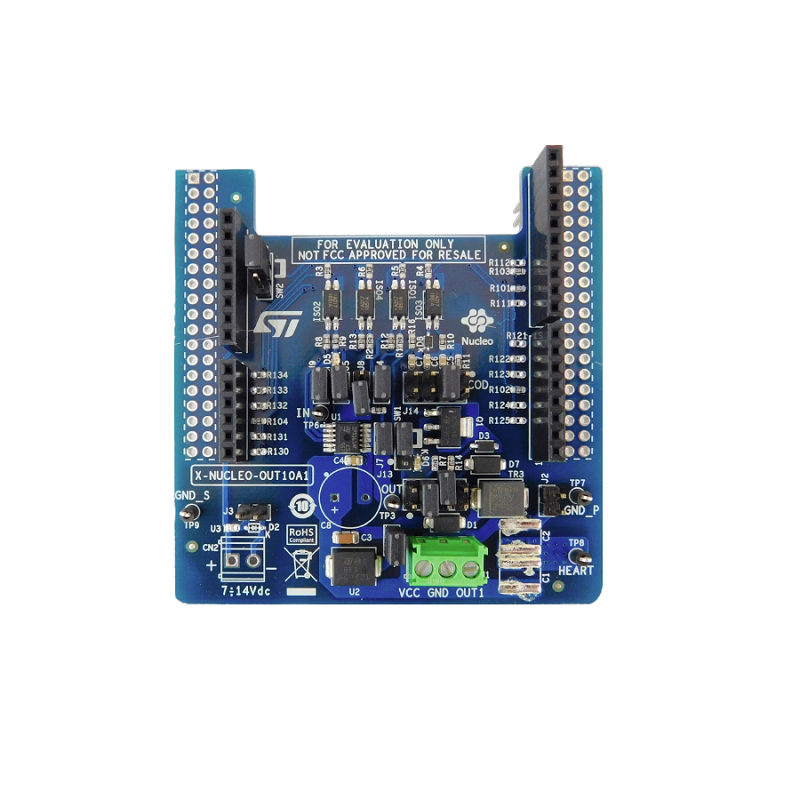

SPIDER Automation STMicroelectronics X-NUCLEO-OUT10A1 Industrial Output Expansion Board
Description
SPIDER Automation STMicroelectronics X-NUCLEO-OUT10A1 Industrial Digital Output Expansion Board is engineered for testing and evaluating the IPS161HF IC, a advanced monolithic power switching controller that provides high voltage, high current capability, and low dropout voltage. Designed specifically for industrial automation and heavy-duty control applications, the expansion board integrates built-in power supplies and power MOSFETs to simulate real-world load conditions.
Fully compatible with the STM32 Nucleo development ecosystem, the X-NUCLEO-OUT10A1 allows developers, engineers, and students to quickly prototype and develop robust digital output applications using STM32 microcontrollers. It operates natively in a voltage range from 12V to 33V with currents up to 0.7A, and can support an extended voltage operating range up to 60V by simply leaving jumper J1 open.
Key Features
- Industrial Digital Output Stage: Evaluation expansion board based on the IPS161HF single high-side smart power switch.
- Standard & Extended Operating Ranges: Operates smoothly from 12V to 33V (0 to 0.7A), with support for extended voltage up to 60V via J1 configuration.
- Nucleo Ecosystem Compatibility: Designed to stack directly onto standard STMicroelectronics STM32 Nucleo development boards.
- Real-World Power Integration: Features built-in power supply circuits and onboard power MOSFETs for authentic load evaluation.
- Visual Status Monitoring: Equipped with a dedicated green LED indicator for clear output ON/OFF status tracking.
Benefits
- Rapid Industrial Prototyping: Accelerates the design of PLC modules and industrial automation actuators using familiar STM32 tools.
- Flexible Voltage Handling: Accommodates both standard 24V industrial rails and higher-voltage 60V systems.
- Plug-and-Play Stackability: Eliminates complex wiring by mounting directly onto existing Nucleo development hardware.
Applications
- Industrial Automation & PLCs: Prototyping digital output channels for programmable logic controllers and factory automation equipment.
- Actuator & Solenoid Control: Driving heavy inductive and resistive loads securely with high-side switching protection.
- Industrial Robotics: Managing power distribution and switching nodes in automated machinery.
- Embedded Systems Education: Training platform for engineering students exploring industrial power electronics and microcontroller interfacing.
Package Includes
- 1 x STMicroelectronics X-NUCLEO-OUT10A1 Industrial Digital Output Expansion Board (IPS161HF Controller)
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Model Series | SPIDER Automation / STMicroelectronics X-NUCLEO Series |
| Model Part Number | X-NUCLEO-OUT10A1 |
| Item Type | Industrial Digital Output Expansion Board / Evaluation Kit |
| Microcontroller Architecture | STM32 Based (Nucleo Development Board Compatible) |
| Silicon Manufacturer | STMicroelectronics |
| Silicon Core Number / IC | IPS161HF Monolithic Power High-Side Switching Controller |
| Standard Operating Range | 12V to 33V DC, 0 to 0.7A |
| Extended Voltage Range | Up to 60V DC (Configurable with J1 Open) |
| Status Indicators | Green LED for Output ON / OFF Status |
| Device Net Weight | 0.090 kg (90 g) |
| Package Shipping Dimensions | 22 cm × 17 cm × 5 cm |
