SPIDER Automation STM32 Nucleo-64 Development Board | NUCLEO-C051C8 ARM Cortex-M0+ MCU Prototyping Shield
Description

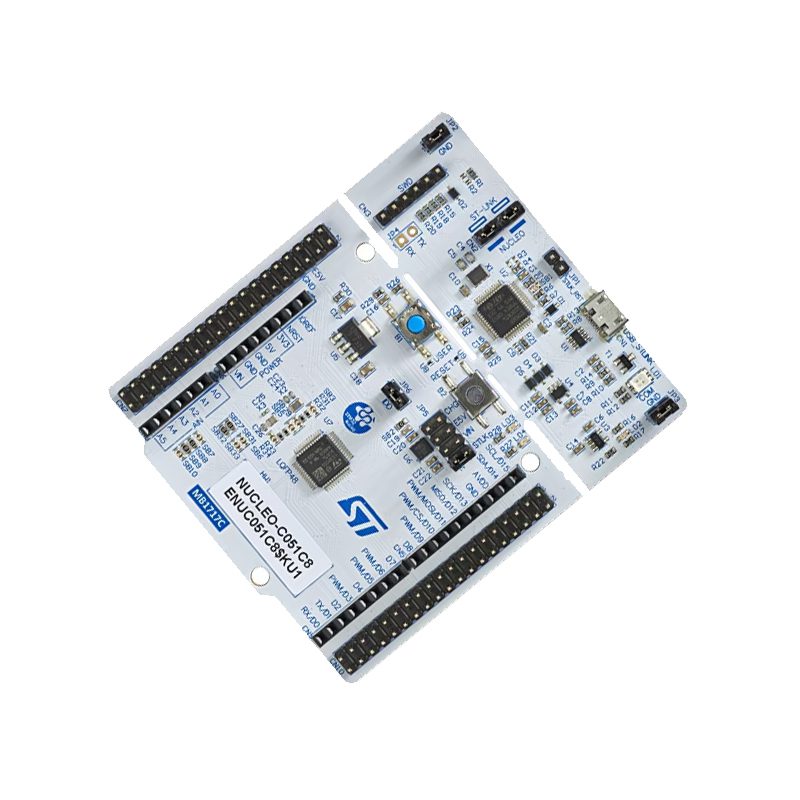

SPIDER Automation STMicroelectronics NUCLEO-C051C8 ARM STM32 Nucleo-64 Development Board offers a highly adaptable and economical way for developers to experiment with new concepts and construct functional prototypes. Powered by the STM32C051C8 microcontroller featuring a 32-bit ARM Cortex-M0+ core, the board balances responsive processing performance with low power consumption for embedded systems.
The Nucleo-64 evaluation board eliminates external hardware barriers by integrating an on-board ST-LINK debugger and programmer, enabling instant code deployment and debugging. Designed with standard Arduino Uno V3 connectors and full-access ST morpho headers, the board allows effortless stacking of specialized hardware shields. Backed by free software libraries and example code within the STM32Cube MCU package, the NUCLEO-C051C8 speeds up time-to-market for innovative electronics projects.
Key Features
- ARM Cortex-M0+ Core: Powered by the energy-efficient STM32C051C8 32-bit RISC processor core.
- 64 KB Flash & 8 KB RAM: Provides sufficient non-volatile storage and static memory for standard embedded firmware designs.
- Integrated ST-LINK Debugger: Built-in hardware programmer and debugger featuring USB re-enumeration capabilities.
- Micro-USB Connectivity: Standard Micro-B interface supporting board power options and host communication.
- Dual Expansion Layout: Compatible with Arduino Uno V3 shields and ST morpho extension headers for total GPIO access.
- Flexible Power Architecture: Powered via USB VBUS or external voltage sources, with optional SMPS support on compatible configurations.
- Onboard User Peripherals: Includes 1 user LED, 1 user push-button, 1 reset button, and a 32.768 kHz crystal for RTC features.
- Comprehensive Software Ecosystem: Fully supported by STM32CubeIDE, IAR Embedded Workbench, MDK-ARM, and comprehensive firmware packages.
Benefits
- All-in-One Prototyping Kit: Integrated debugger and USB connectivity eliminate extra hardware accessories for out-of-the-box operation.
- Modular Hardware Compatibility: Standard Arduino and morpho pin footprints allow instant stacking of sensor, actuator, and communication shields.
- Seamless Design Scalability: Software written for this Nucleo evaluation board transitions smoothly into custom production PCBs using STM32 silicon.
- Extensive Software Support: Free code examples, drivers, and middleware within the STM32Cube framework drastically reduce development overhead.
Applications
- Embedded Systems Education: Excellent academic platform for learning microcontroller programming, peripheral configuration, and real-time logic.
- IoT Sensor Nodes: Prototyping connected edge devices utilizing digital sensors, telemetry modules, and data logging interfaces.
- Industrial Control Evaluation: Testing ground for localized monitoring units, automated relay controllers, and small-scale automation.
- Consumer Gadgets & Appliances: Developing smart home controllers, automated desktop hardware, and interactive human-interface devices.
Package Includes
- 1 x STMicroelectronics NUCLEO-C051C8 ARM STM32 Nucleo-64 Development Board
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Series | SPIDER Automation / STMicroelectronics STM32 Nucleo-64 Series |
| Item Type | ARM STM32 Microcontroller Development Board & Prototyping Shield |
| Model Order Code / SKU | NUCLEO-C051C8 / SKU-SPIDER-NUCLEO-C051C8 |
| Silicon Manufacturer | STMicroelectronics |
| Microcontroller Core | STM32C051C8 (32-bit ARM Cortex-M0+ Processor) |
| Flash Memory Capacity | 64 KB |
| Static RAM (SRAM) | 8 KB |
| Built-In Debugger / Programmer | On-board ST-LINK (USB Virtual COM Port & Mass Storage Support) |
| USB Interface Connector | USB Micro-B Port |
| Expansion Connectors | Arduino Uno V3 Connectors & ST Morpho Extension Headers |
| Onboard Peripherals | 1 × User LED, 1 × User Push-Button, 1 × Reset Button, 32.768 kHz RTC Crystal |
| Software & IDE Ecosystem | STM32CubeIDE, IAR Embedded Workbench, MDK-ARM, STM32Cube Firmware Package |
| Board Physical Dimensions | 78 mm Length × 66 mm Width × 20 mm Height |
| Product Net Weight | 34 g (0.034 kg) |
| Package Shipping Weight | 0.065 kg (65 g) |
| Package Shipping Dimensions | 11.5 cm × 9.5 cm × 4 cm |
