Description
The STM32F407ZGT6 is a high-performance microcontroller from the STM32F4 series, featuring the robust ARM® Cortex®-M4 32-bit RISC core. Operating at frequencies up to 168MHz, this device is equipped with a hardware Floating Point Unit (FPU), a full set of DSP instructions, and a Memory Protection Unit (MPU) for enhanced security. With 1MB of Flash memory and an extensive array of peripherals—including Ethernet MAC, a parallel camera interface, and multi-channel 12-bit ADCs—this MCU is built for demanding real-time applications requiring significant computational power and advanced connectivity.
Key Features
- ARM® Cortex®-M4 Core: 32-bit RISC processor with FPU running at up to 168MHz.
- High-Capacity Memory: Up to 1MB of on-chip Flash memory for complex applications.
- Advanced Connectivity: Integrated Ethernet MAC, USB, CAN, and a wide array of serial interfaces (SPI, I2C, USART).
- Multimedia & Imaging: Features an 8-to-14-bit parallel camera interface and an LCD parallel interface supporting 8080/6800 modes.
- Precision Analog: Three 12-bit ADCs (24 channels total) and two 12-bit DACs.
- Flexible Timers: Includes twelve 16-bit timers and two 32-bit timers, with specialized PWM support for motor control.
- System Integrity: Hardware CRC unit, 96-bit unique ID, true random number generator, and comprehensive power management.
Applications
- Industrial Control: High-reliability automation, PLCs, and sophisticated motor drive systems.
- Networking & Communication: Ethernet-enabled gateways and communication hubs.
- Imaging & Video: Embedded camera interfacing, video intercoms, and display control.
- Medical & Instrumentation: High-performance signal processing for portable diagnostic devices.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | STM32F407ZGT6 |
| Core Architecture | ARM Cortex-M4 (32-bit) |
| Max Clock Frequency | 168 MHz |
| Program Memory | 1 MB Flash |
| Supply Voltage | 1.8V to 3.6V |
| No. of I/Os | Up to 140 |
| Operating Temp | –40°C to +85°C |
| Package/Case | LQFP |

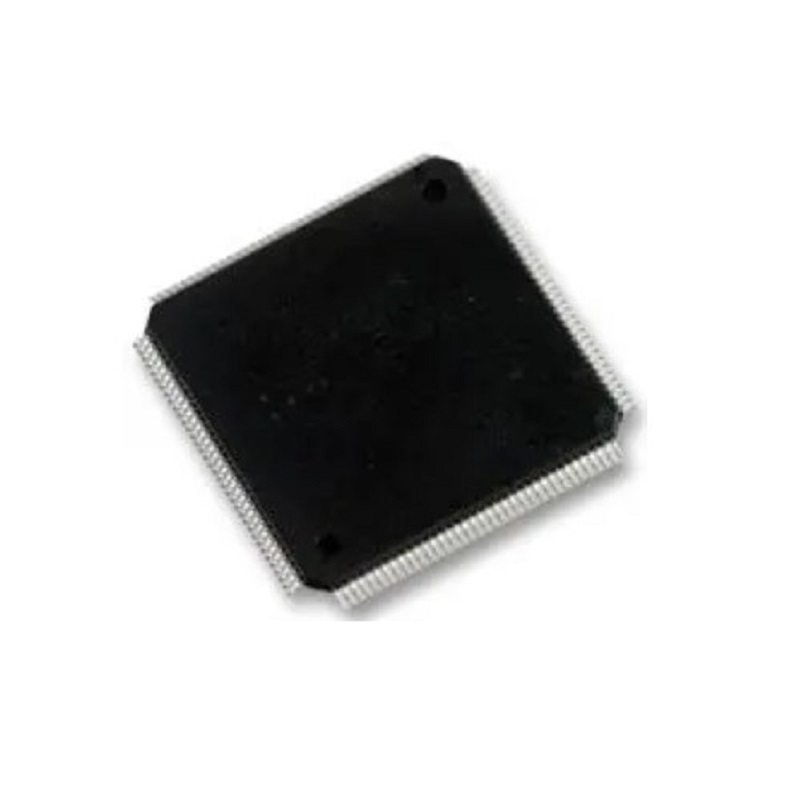

Note: Product images are shown for illustrative purposes only and may differ from the actual product. Please refer to the official STMicroelectronics datasheet for complete electrical characteristics and application design details.
