Description
The STM32F072VBT6 is a versatile, high-connectivity microcontroller from the STM32 F0 “Value-line” series, powered by the ARM® Cortex®-M0 32-bit core. Running at frequencies up to 48MHz, this device is designed to handle demanding embedded applications with ease, offering 128KB of Flash memory and 16KB of SRAM. Its feature set is particularly strong in interface and sensing capabilities, including integrated USB, CAN, and HDMI CEC support, alongside 24 channels for capacitive touch sensing, making it an excellent choice for modern user-interface and communication-heavy designs.
Key Features
- ARM® Cortex®-M0 Core: 32-bit CPU running at speeds up to 48MHz.
- Capacitive Sensing: Dedicated hardware support for 24 touch-sensing channels for HMI designs.
- Rich Connectivity: Includes USB, CAN, HDMI CEC, four USARTs, two I2C, and two SPI interfaces.
- Advanced Analog: Integrated 12-bit ADC (16 external + 3 internal channels), 12-bit DAC (2 channels), and two analog comparators.
- Versatile Timers: Features advanced-control, general-purpose, and basic timers for precise timing and PWM control.
- Reliable System Operation: Includes a CRC calculation unit, 96-bit unique ID, and comprehensive power management (POR/PDR).
- Flexible GPIO: 87 fast I/O ports for extensive peripheral interfacing.
Applications
- Consumer Electronics: Ideal for home appliances with touch interfaces, remote controls, and connected sensors.
- Human-Machine Interface (HMI): Perfect for products requiring touch-key, linear, or rotary sensing capabilities.
- Communications: Suitable for hubs and devices requiring USB, CAN, or HDMI CEC connectivity.
- Industrial & Medical: Reliable control for compact instrumentation and peripheral-rich embedded systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | STM32F072VBT6 |
| Core Architecture | ARM Cortex-M0 |
| Max Clock Frequency | 48 MHz |
| Program Memory | 128 KB Flash |
| RAM Size | 16 KB |
| No. of I/Os | 87 |
| Supply Voltage | 2V to 3.6V |
| Package/Case | LQFP (100 Pins) |

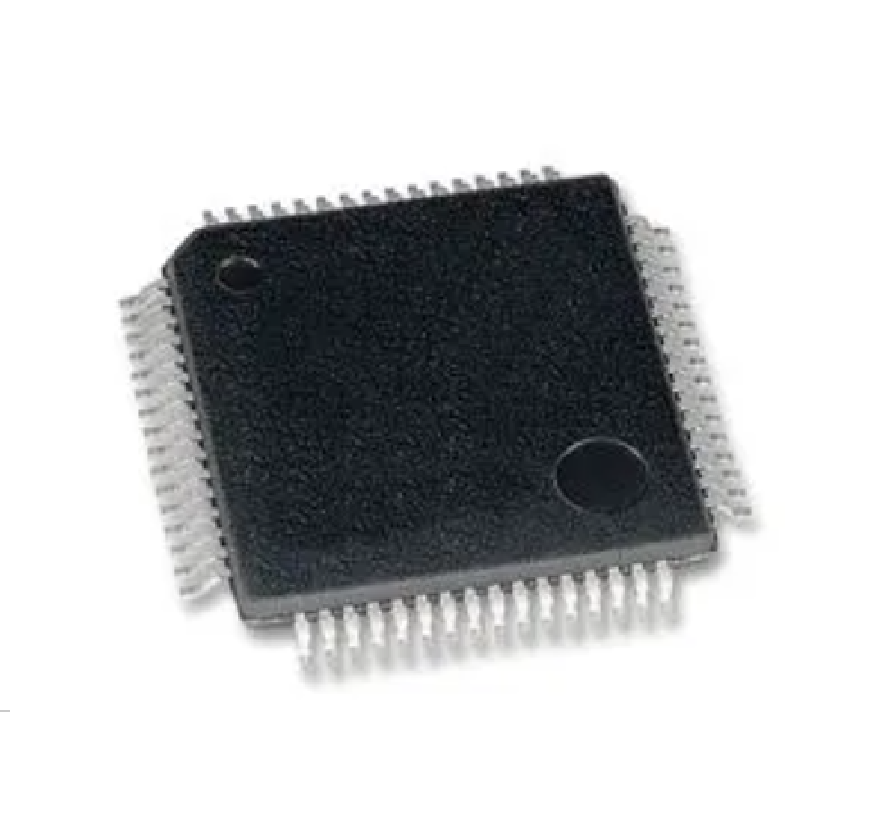

Note: Product images are shown for illustrative purposes only and may differ from the actual product. Please refer to the official STMicroelectronics datasheet for complete electrical characteristics and application design details.
