Description

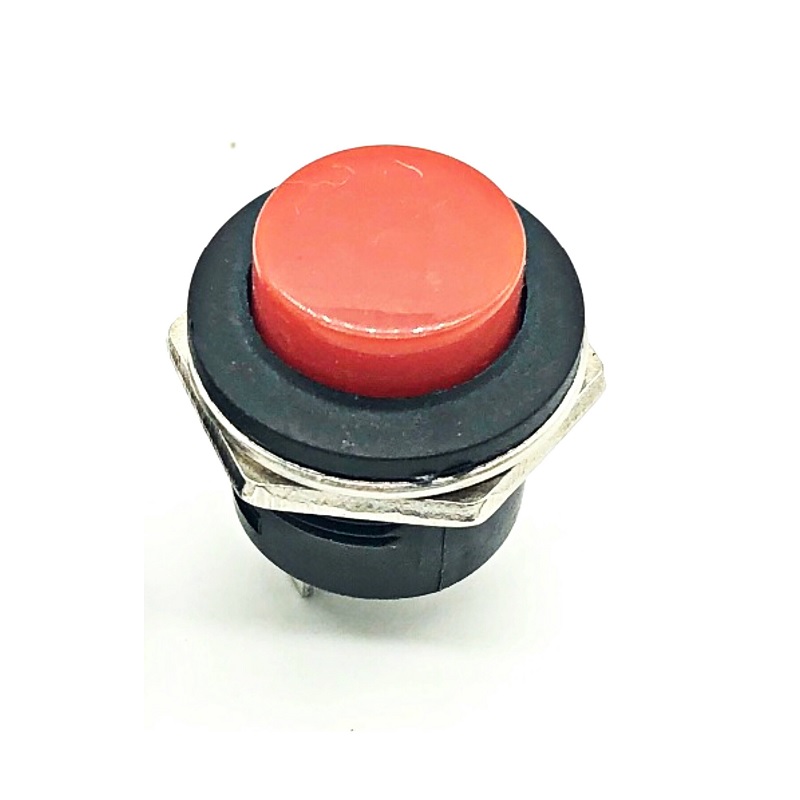

The R13-507 16mm Red Momentary Push Button Switch is a high-quality SPST (Single Pole Single Throw) panel mount switch designed for reliable momentary switching applications. Featuring a self-reset (No Lock) mechanism, the switch remains ON only while the button is pressed and automatically returns to the OFF position when released.
Designed for installation in a 16mm mounting hole, this switch is constructed with a durable combination of plastic and metal materials, making it suitable for long-term use in industrial equipment, control panels, DIY electronics, automotive projects, and electrical machinery. The two-pin terminal design allows quick and secure wiring, while the waterproof and dustproof sealing ring improves reliability in demanding environments.
The switch is rated for 6A at 125V AC and 3A at 250V AC, making it ideal for low to medium power control circuits. It is commonly used in electromagnetic starters, contactors, automation equipment, machine controls, and various electronic switching applications.
Note: This is a momentary push button switch. The contacts remain closed only while the button is pressed and automatically return to the OFF position after release. Always verify voltage and current ratings before installation.
Features
- SPST (Single Pole Single Throw) momentary push button switch
- Self-reset (No Lock) operation
- Push and hold for ON, release for OFF
- Designed for 16mm panel mounting hole
- Durable plastic and metal construction
- Waterproof and dustproof sealing ring
- Two-pin terminal design for easy wiring
- Excellent electrical conductivity
- Reliable mechanical operation
- Compact panel mount design
Benefits
- Provides reliable temporary switching operation
- Easy to install in standard 16mm panels
- Suitable for industrial and DIY applications
- Improves operator control and safety
- Resists dust and light moisture ingress
- Long-lasting and durable construction
- Quick electrical connection using two terminals
- Ideal for control and signal applications
Applications
- Industrial Control Panels
- Machine Control Systems
- Electrical Control Circuits
- Electromagnetic Starters
- Contactors
- Automation Equipment
- DIY Electronics Projects
- Arduino Projects
- ESP32 Projects
- STM32 Development Boards
- Raspberry Pi Projects
- Automotive Electrical Systems
- Power Distribution Panels
- Electronic Equipment
- Instrumentation Panels
- Educational Electronics Projects
- Electronic Prototyping
Package Includes
- 1 x R13-507 16mm Red Momentary Push Button Switch (SPST, No Lock)
Specifications
| Parameter | Specification |
|---|---|
| Product Name | R13-507 16mm Momentary Push Button Switch |
| Model | R13-507-M-5S |
| Switch Type | Momentary Push Button Switch |
| Circuit Configuration | SPST (Single Pole Single Throw) |
| Action Type | Momentary (Push & Hold ON, Release OFF) |
| Locking Type | No Lock (Self Reset) |
| Mounting Type | Panel Mount |
| Mounting Hole Diameter | 16 mm |
| Terminal Type | 2 Pin |
| Rated Voltage | 125V AC (6A), 250V AC (3A) |
| Rated Current | 6A @ 125V AC / 3A @ 250V AC |
| Material | Plastic & Metal |
| Button Color | Red |
| Protection Features | Waterproof and Dustproof Rubber Seal |
| Overall Size | 24.4 × 20 mm (L × D) |
| Shipping Weight | 0.006 kg |
| Shipping Dimensions | 8 × 6.5 × 1 cm |
