SPIDER Automation Quartet 16S Li-Ion Battery Charger 67.2V 10A | NMC Battery Charging | 672W CCCV Charger with Multi-Protection
Description
The Quartet 16S Li-Ion Battery Charger is a high-power SMPS-based charger designed for 16S NMC lithium-ion battery packs. It provides a regulated 67.2V output at up to 10A, delivering a maximum charging power of 672W. The charger uses a CCCV charging profile to provide controlled constant-current and constant-voltage charging for compatible battery systems.
Designed for reliable operation, the charger supports a 170–300VAC input range at 45–65Hz and incorporates multiple protection functions including short circuit, overload, over-voltage and over-temperature protection. Battery reverse-polarity protection provides additional protection against incorrect battery connections.
A microcontroller-based intelligent charging design monitors the charging process and helps manage the battery even when the battery pack has experienced prolonged deep discharge. LED indicators provide visual information for power and charging status, making it easier to monitor charger operation during use.

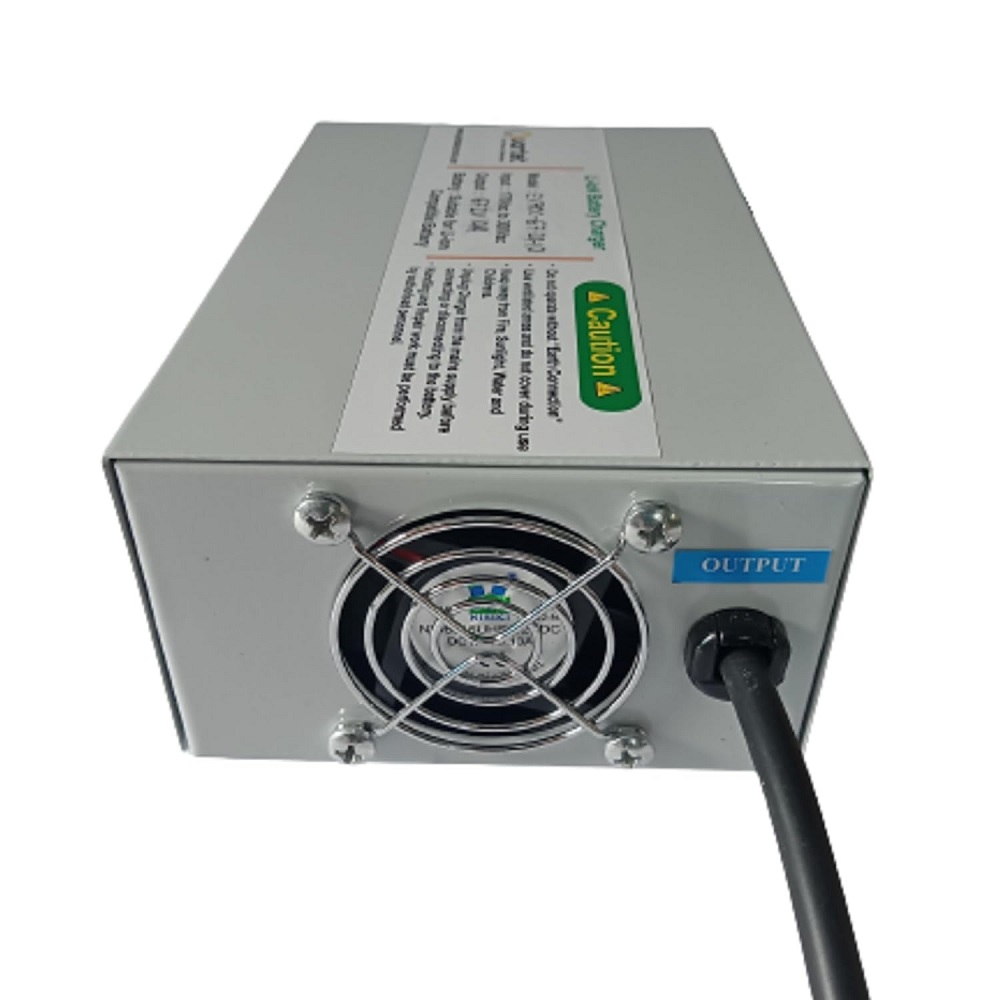

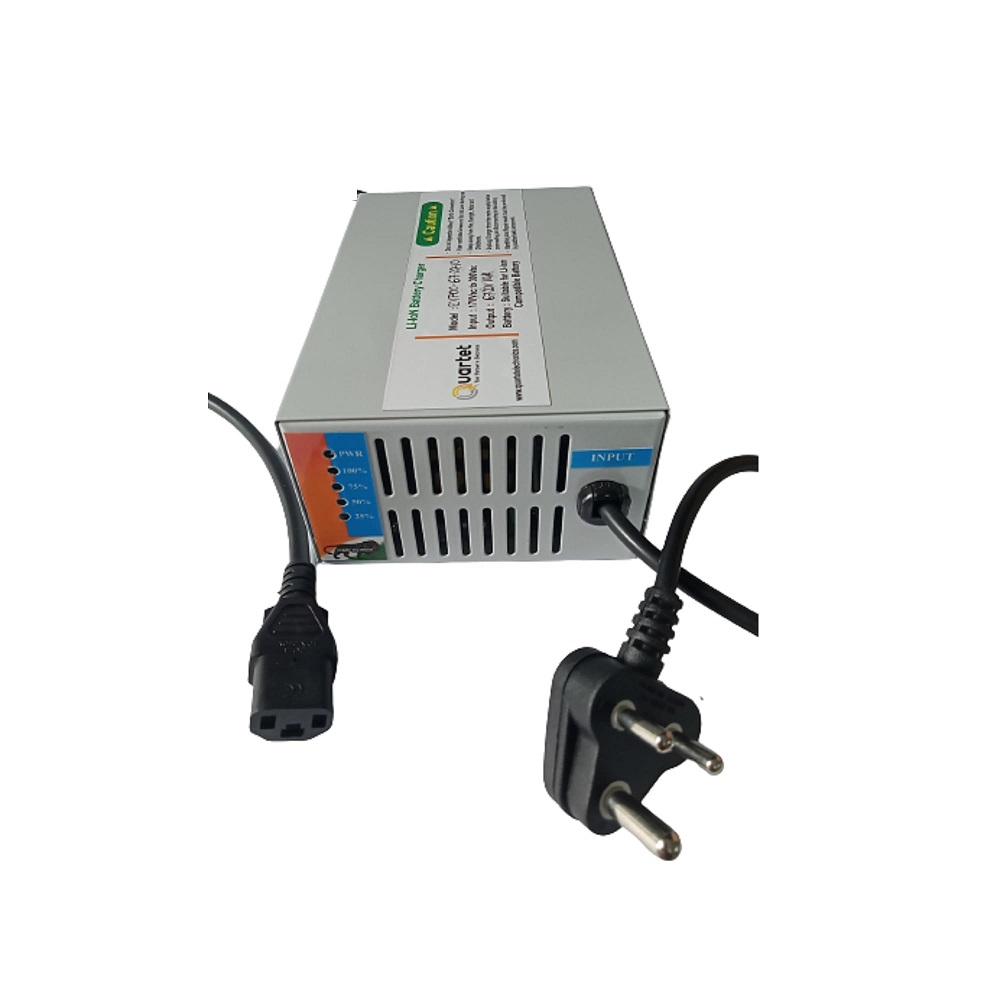

The charger features a compact, high-power-density construction measuring 183 × 116 × 70mm. With an AC 3-pin EU input plug, IEC-C13 connector, 140cm cable length and IP20 protection rating, it is suitable for integration into compatible electric mobility, battery-powered equipment, tools and other high-voltage 16S lithium-ion battery charging applications.
Key Features
- 16S NMC Battery Compatibility: Designed for charging 16-series NMC lithium-ion battery packs.
- 67.2V Charging Output: Provides the required 67.2V charging voltage for compatible 16S battery configurations.
- 10A Output Current: Supports charging current up to 10A.
- 672W Maximum Output: Provides up to 672W charging power.
- SMPS-Based Architecture: Uses a switching-mode power supply design for high power density and efficient operation.
- CCCV Charging: Uses a constant-current/constant-voltage charging profile.
- Wide AC Input: Supports 170–300VAC input at 45–65Hz.
- Short-Circuit Protection: Helps protect the charger during output short-circuit conditions.
- Overload Protection: Provides protection against excessive load conditions.
- Over-Voltage Protection: Helps protect the charging system against abnormal voltage conditions.
- Over-Temperature Protection: Provides thermal protection during operation.
- Battery Reverse-Polarity Protection: Helps prevent damage caused by incorrect battery polarity connection.
- Microcontroller-Based Charging: Intelligent control manages the charging process, including batteries experiencing prolonged deep discharge.
- LED Status Indicators: Provides visual indication for power and charging status.
- Compact Construction: High-power-density design in a 183 × 116 × 70mm enclosure.
Benefits
- High-Power Battery Charging: 672W maximum output supports efficient charging of compatible 16S battery systems.
- Controlled Charging: CCCV charging helps provide a controlled charging profile for compatible NMC battery packs.
- Enhanced Protection: Multiple built-in protection functions help safeguard the charger and connected battery system.
- Deep-Discharge Management: Microcontroller-based charging intelligence supports battery management during prolonged deep-discharge conditions.
- Easy Monitoring: LED indicators provide convenient visual feedback during charging.
- Space-Efficient Installation: Compact dimensions provide high charging power without requiring a large enclosure.
Applications
- 16S NMC Battery Packs: Charging compatible 16-series NMC lithium-ion battery configurations.
- Electric Vehicles: Suitable for compatible 16S battery systems used in electric mobility equipment.
- Battery-Powered Tools: Charging compatible high-voltage lithium-ion battery systems used in power equipment.
- Electric Equipment: Integration into compatible battery-powered electrical equipment.
- Energy Storage Systems: Charging compatible 16S NMC battery packs used in energy storage applications.
- Battery System Development: Suitable for engineering and integration applications involving compatible 67.2V battery systems.
- Industrial Battery Applications: Use in compatible high-voltage battery-powered equipment requiring a 67.2V, 10A charging source.
Package Includes
- 1 × Quartet 16S Li-Ion Battery Charger – 67.2V 10A with IEC-C13 Connector
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | 16S Li-Ion Battery Charger |
| Battery Chemistry | NMC Lithium-Ion |
| Battery Configuration | 16S |
| Output Voltage | 67.2V DC |
| Output Current | 10A |
| Maximum Power Output | 672W |
| Charging Profile | CCCV (Constant Current / Constant Voltage) |
| Input Voltage | 170–300VAC |
| Input Frequency | 45–65Hz |
| Input Connector | AC 3-Pin EU Plug |
| Output Connector | IEC-C13 |
| Cable Length | 140cm (Both Cables) |
| Protection Functions | Short Circuit, Overload, Over-Voltage, Over-Temperature, Reverse Polarity |
| Status Indicators | LED Power and Charging Status Indicators |
| Safety IP Rating | IP20 |
| Construction | SMPS-Based High-Power-Density Design |
| Length | 183mm |
| Width | 116mm |
| Height | 70mm |
| Product Weight | 1660g |
| Shipping Weight | 1.81kg |
