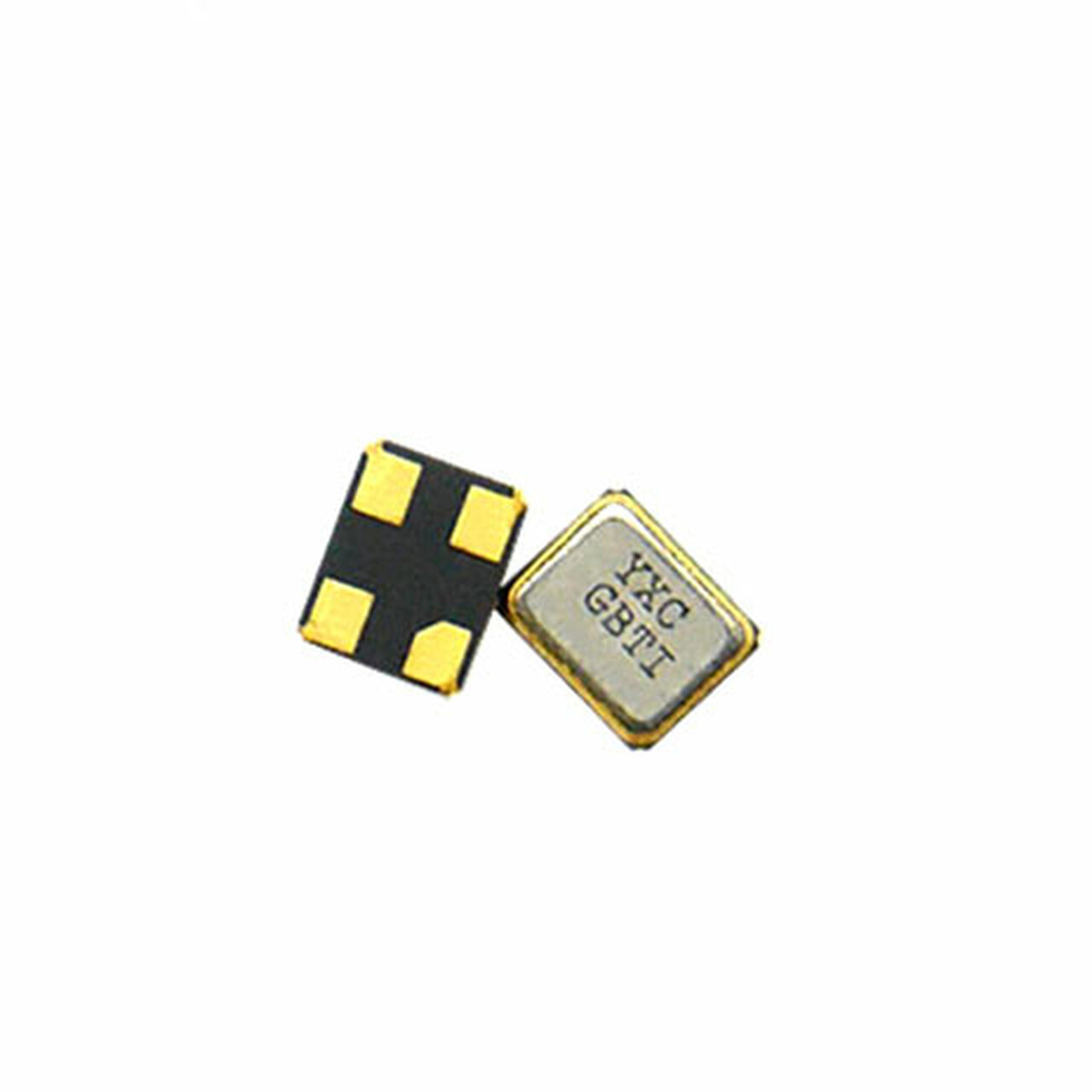

YXC YSX211SL 16 MHz 9pF ±20ppm 4-Pad SMD Quartz Crystal

Description

The YXC YSX211SL 16 MHz is a precision 4-pad surface-mount quartz crystal, designed for high-stability timing in space-constrained digital electronics. Operating at a nominal frequency of 16 MHz, this crystal provides a reliable, low-jitter clock reference for microcontrollers, FPGAs, and various embedded control systems where precise timing is essential.

Housed in a compact 4-pad SMD package, the YSX211SL is optimized for high-density PCB layouts, facilitating efficient assembly in modern electronics. Featuring a load capacitance of 9 pF and a tight frequency tolerance of ±20 ppm, this crystal ensures consistent performance, enabling accurate data synchronization and communication in a wide range of industrial and consumer hardware applications.

Features

• 16 MHz nominal frequency
• ±20 ppm high-precision frequency tolerance
• 9 pF load capacitance
• Robust 4-pad SMD/SMT surface-mount configuration
• Compact footprint ideal for space-sensitive designs
• Excellent mechanical and environmental stability

Applications

• Microcontroller and FPGA system clocking
• Embedded systems and IoT hardware
• Industrial control and automation
• Communication interface timing
• General-purpose digital synchronization

Package Includes

• 1 x YXC YSX211SL 16 MHz 9pF 20PPM 4-Pad SMD Quartz Crystal

Specifications
