Description

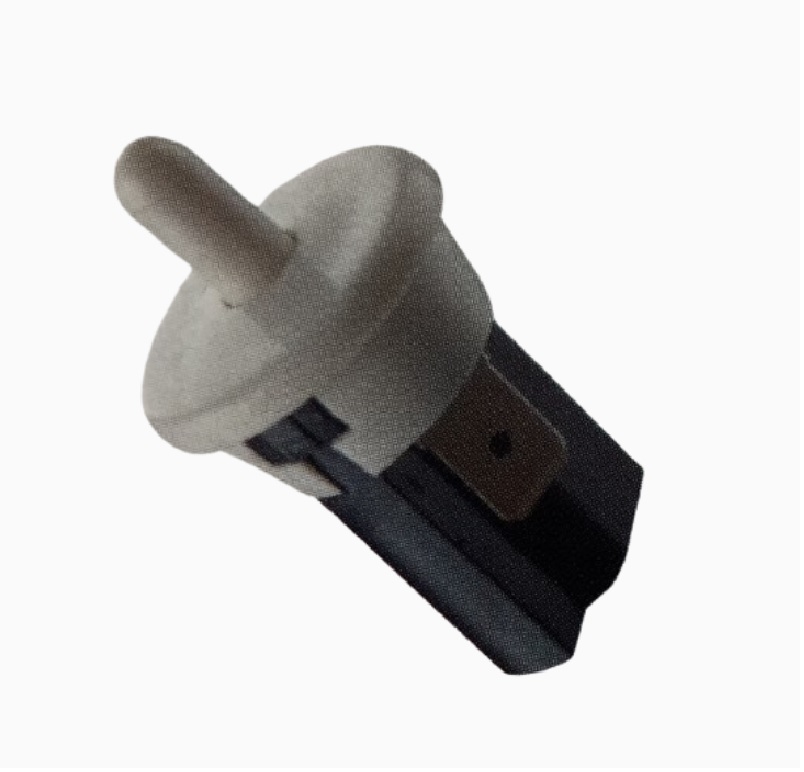

The PS-68 Push Button Switch is a versatile and durable switching solution engineered for a wide range of electronic and industrial applications. Built to perform in demanding environments, this switch operates reliably within a broad temperature range of -25°C to 85°C. With a rated capacity of 1A at 250V AC, it is ideal for power toggling, signal control, and custom control interfaces in both professional machinery and DIY electronics.
The PS-68 prioritizes electrical efficiency and safety, featuring low contact resistance (≤20mΩ) to minimize power loss and high insulation resistance (≥1000MΩ) to ensure circuit integrity and prevent leakage. Designed for longevity, this switch boasts an operational lifespan exceeding 30,000 cycles and demonstrates excellent resilience in high-humidity environments (up to 95% RH at 40°C). Whether you are building a prototype or maintaining industrial instrumentation, the PS-68 provides consistent, high-quality performance.
Key Features
- Robust Design: Engineered for industrial and professional-grade applications
- Performance: Rated for 1A @ 250V AC operation
- Durability: Mechanical/electrical lifespan exceeding 30,000 cycles
- Environmental Resilience: Operational range of -25°C to 85°C
- Safety: High insulation resistance (≥1000MΩ) and humidity resistance (up to 95% RH)
- Efficiency: Low contact resistance (≤20mΩ) for optimal electrical conductivity
Technical Benefits
- High insulation resistance provides a reliable safety margin against electrical faults
- Stable performance in fluctuating temperatures ensures consistent operation in varied climates
- Excellent moisture resistance makes it suitable for enclosed systems or humid operating conditions
- Compact profile allows for easy integration into space-constrained control panels
- Long operational lifespan reduces the frequency of component replacements and maintenance
Applications
- Industrial Machinery: Control interfaces and system toggling
- Control Cabinets: Signal and power management for automation panels
- Appliances: User interface switches for home and office electronics
- Laboratory Equipment: Reliable switching for precise instrumentation
- DIY & Prototyping: High-quality tactile control for custom projects
Package Includes
- 1 x PS-68 Push Button Switch
Specifications
| Parameter | Specification |
|---|---|
| Model | PS-68 |
| Rated Voltage | 250V AC |
| Rated Current | 1A |
| Operating Temp | -25°C to 85°C |
| Contact Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥ 1000 MΩ |
| Lifespan | > 30,000 Cycles |
