Description
The PL2303HX (Revision A) is a highly integrated USB-to-Serial bridge controller designed to provide a seamless interface between USB-capable hosts and RS232-like full-duplex asynchronous serial devices. By emulating a traditional COM port via its highly compatible driver suite, it allows legacy applications to migrate to modern USB connectivity without requiring software redesigns.
Leveraging USB bulk transfer mode and automatic flow control, the PL2303HX achieves throughput significantly higher than standard UART ports. It is engineered with mobile and embedded applications in mind, featuring an ultra-compact footprint, low power consumption, and a flexible signal level interface (supporting 1.8V to 3.3V devices). This makes it ideal for bus-powered handheld devices, dongles, and various industrial interface modules.

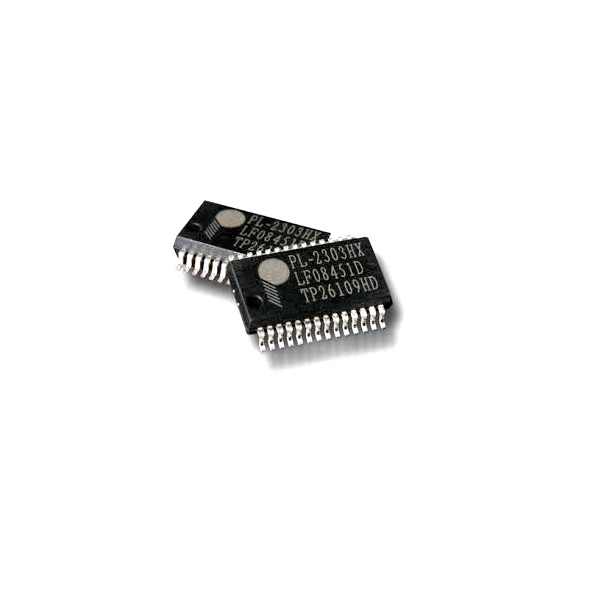

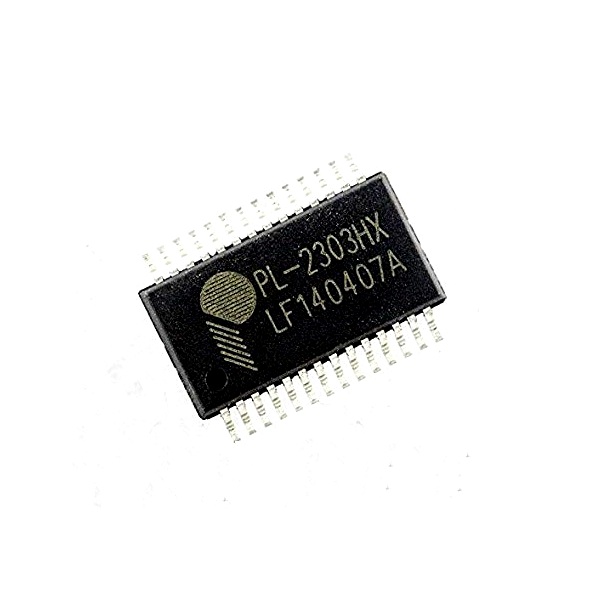

Note: Product images are for reference only. The actual product may vary in appearance or manufacturer marking depending on stock availability.
Features
- Fully compliant with USB Specification v2.0 (Full-Speed)
- Integrated USB 1.1 transceiver, 5V-to-3.3V regulator, and 12 MHz crystal oscillator
- Supports flexible baud rates from 75 bps up to 6 Mbps
- Extensive flow control mechanisms for data reliability
- Configurable 512-byte bi-directional data buffer
- Supports remote wake-up via MODEM input signals
- Two dedicated General Purpose I/O (GPIO) pins
- Broad OS support: Windows (Certified), Mac OS, Linux, and WinCE
- Small footprint 28-pin SSOP package
Benefits
- Enables easy migration of legacy serial devices to USB
- High performance with programmable, high-speed baud rate generation
- Excellent for battery-powered, bus-operated mobile applications
- Flexible logic levels allow direct connection to 1.8V–3.3V peripherals
- High reliability with extensive driver certification
Applications
- USB-to-RS232/Serial Adapters
- Mobile and Handheld Communication Devices
- Embedded System Debugging Interfaces
- Data Acquisition and Industrial Instrumentation
- USB-based Home Automation Controllers
- Legacy Industrial Machine Connectivity
Package Includes
- 1 x PL2303HX USB-to-Serial Bridge Controller IC (SSOP-28, Rev A)
Specifications
| Parameter | Specification |
|---|---|
| Product Name | PL2303HX |
| Interface Type | UART (USB Bridge) |
| Supply Voltage Range | 3.6V – 5.5V |
| Max. Clock Frequency | 12.024 MHz |
| Operating Temperature | -40°C to +85°C |
| Package / Case | SSOP-28 |
| Mounting Type | Surface Mount (SMD/SMT) |
| Shipping Weight | 0.06 kg |
| Shipping Dimensions | 8 × 6 × 3 cm |
