Description
The PH-A/AW 2.0mm 3-pin female housing connector assembly is pre-integrated with 300mm long 28 AWG wire leads, providing a robust solution for reliable electrical connectivity. It is engineered to support a rated current of 2A AC/DC and a voltage of 250V AC/DC, ensuring efficient power and signal transmission.
This connector maintains high electrical integrity with a maximum contact resistance of 10MΩ and a minimum insulation resistance of 1000MΩ. Designed for durability, it operates effectively within a temperature range of -25°C to +85°C and is compatible with wire gauges ranging from AWG #30 to #24.
Key Features
- Connector Type: 3-pin Female Housing Connector with pre-attached wires.
- Pitch: 2.0 mm compact spacing.
- Wire Specifications: 300mm length, 28 AWG gauge.
- Electrical Ratings: 2A AC/DC current and 250V AC/DC voltage.
- Resistance Specifications: 10MΩ max contact resistance and 1000MΩ min insulation resistance.
- Temperature Range: -25°C to +85°C operating capacity.
- Wire Compatibility: Supports AWG #30 to #24 wire gauges.
Applications
- PCB-to-wire signal routing in compact electronics.
- Internal connectivity for sensor modules and consumer devices.
- Reliable interfaces for modular control systems.
Package Includes

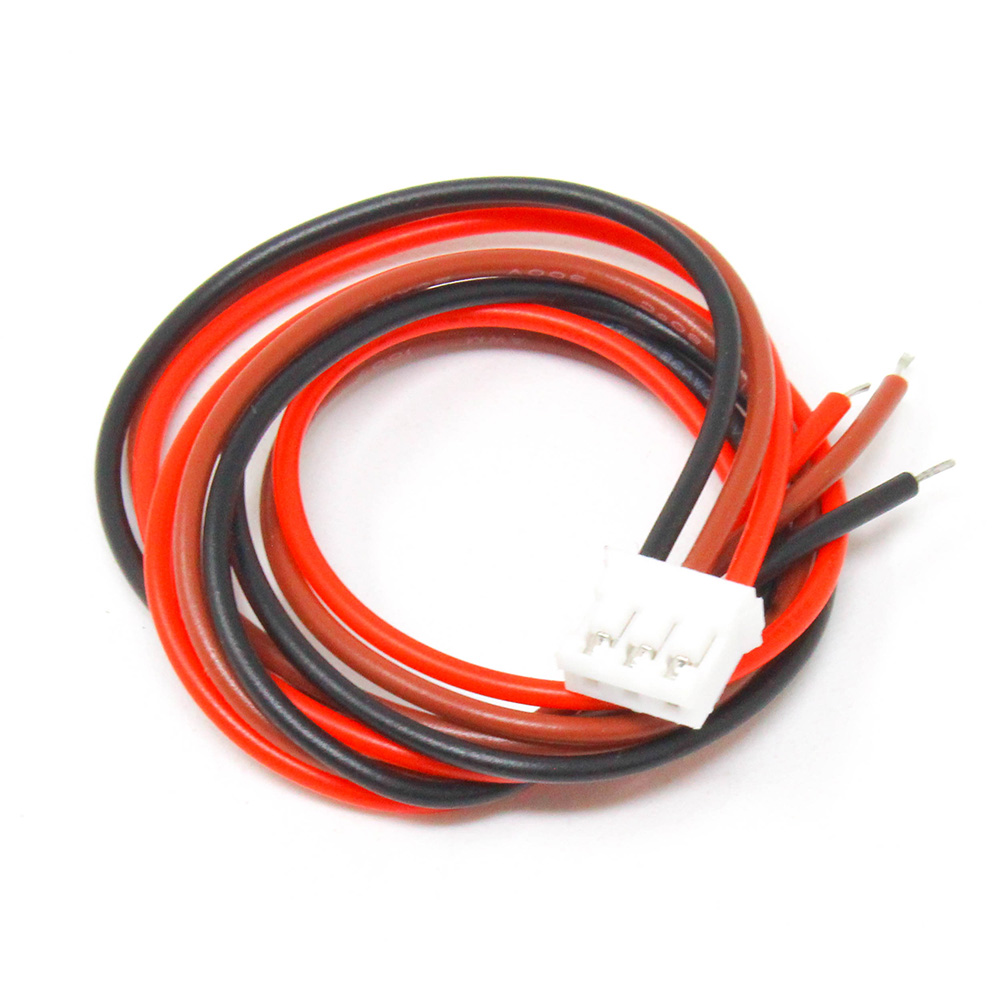

- 1 x PH-A/AW 2mm 3-pin Female Housing Connector with 300mm Wire (28 AWG)
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Current | 2A AC, DC |
| Rated Voltage | 250V AC, DC |
| Contact Resistance | 10MΩ max |
| Operating Temperature | -25°C to 85°C |
| Wire Gauge Compatibility | AWG #30 to #24 |
| Number of Pins | 3 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 5 × 4 × 3 cm |
