Description
The PH 1.5mm female crimp terminal connector is designed for high-density, reliable electrical connectivity in compact electronic assemblies. Supporting a rated current of 2A and a rated voltage of 250V, this connector ensures efficient power and signal transmission. It is engineered with low contact resistance (10MΩ max) and high insulation resistance (1000MΩ min), providing consistent electrical performance even in demanding environments.
Built to withstand up to 800V AC/minute, this connector is durable and versatile, operating effectively across a temperature range of -25°C to +85°C. With compatibility for wire gauges from AWG #30 to #24, it is an excellent choice for a wide array of industrial, consumer, and DIY electronic projects.
Features
- Reliable Connectivity: Designed to provide a secure and stable electrical interface for consistent performance.
- Compact Pitch: 1.5mm spacing is ideal for space-constrained PCB designs and miniature modules.
- Robust Build: High-quality materials ensure durability and resilience during repeated connection cycles.
- High Thermal Tolerance: Operates reliably within a broad temperature range of -25°C to +85°C.
- Flexible Compatibility: Accommodates a wide range of wire gauges (AWG #30 to #24) for project versatility.
- Efficient Design: Simple installation process suitable for both professional assembly and hobbyist prototyping.
Applications
- Consumer Electronics: Standard choice for internal connectivity in cameras, mobile devices, and audio equipment.
- Miniature Robotics: Perfect for routing control signals and sensor feedback in compact robotic systems.
- PCB Prototyping: Excellent for modular board-to-wire interfaces during R&D.
- Industrial Sensors: Suitable for connecting micro-controllers to various sensing and detection modules.
- Power Distribution: Reliable interface for low-voltage power supply distribution within compact electronic housings.
- DIY Projects: Ideal for custom hardware builds, small electronics, and experimental circuits.
Package Includes

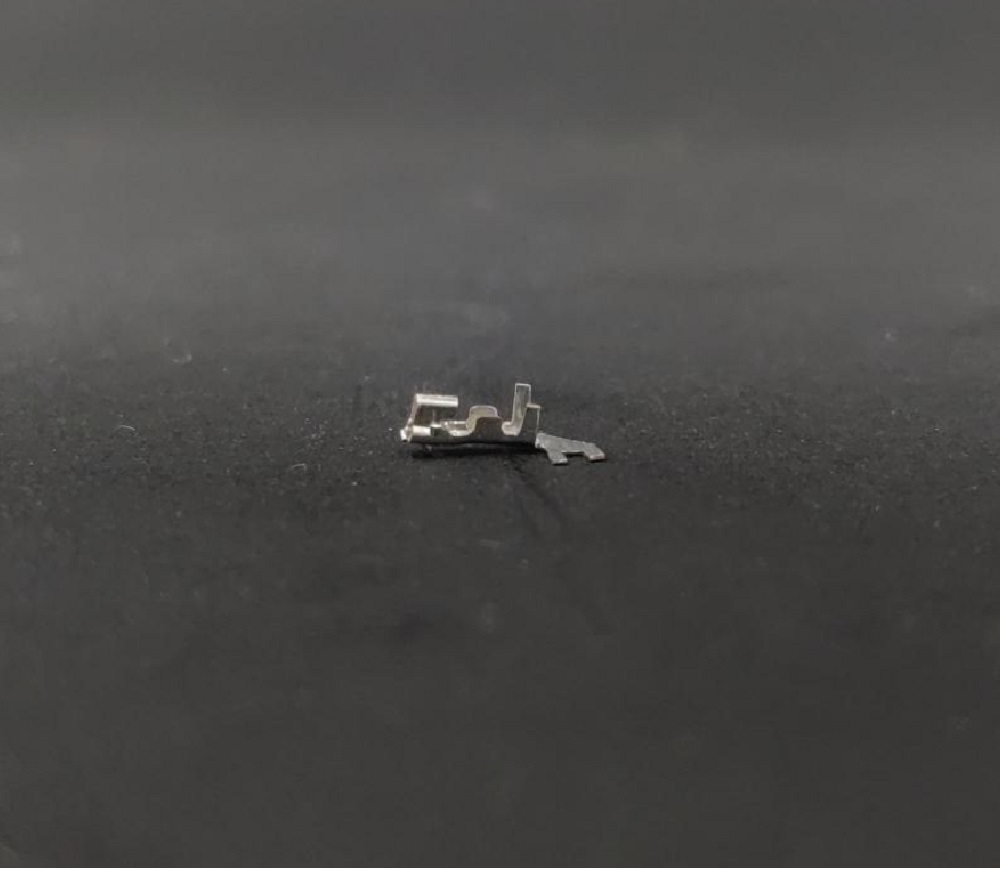

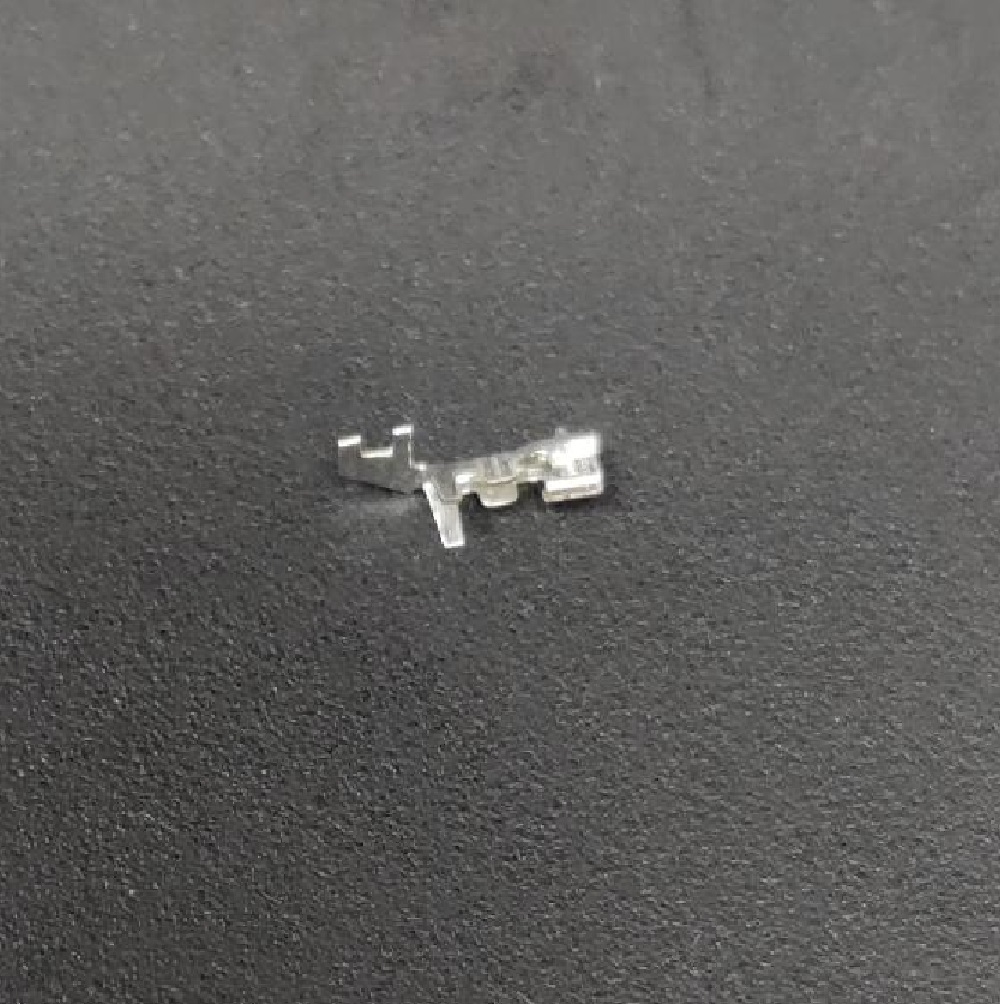

- 1 x PH 1.5mm Crimp Terminal Connector Female
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Current | 2A |
| Rated Voltage | 250V |
| Contact Resistance | 10MΩ max (0.01Ω) |
| Insulation Resistance | 1000MΩ min |
| Operating Temperature | -25°C to +85°C |
| Wire Compatibility | AWG #30 to #24 |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 5 × 4 × 2 cm |
