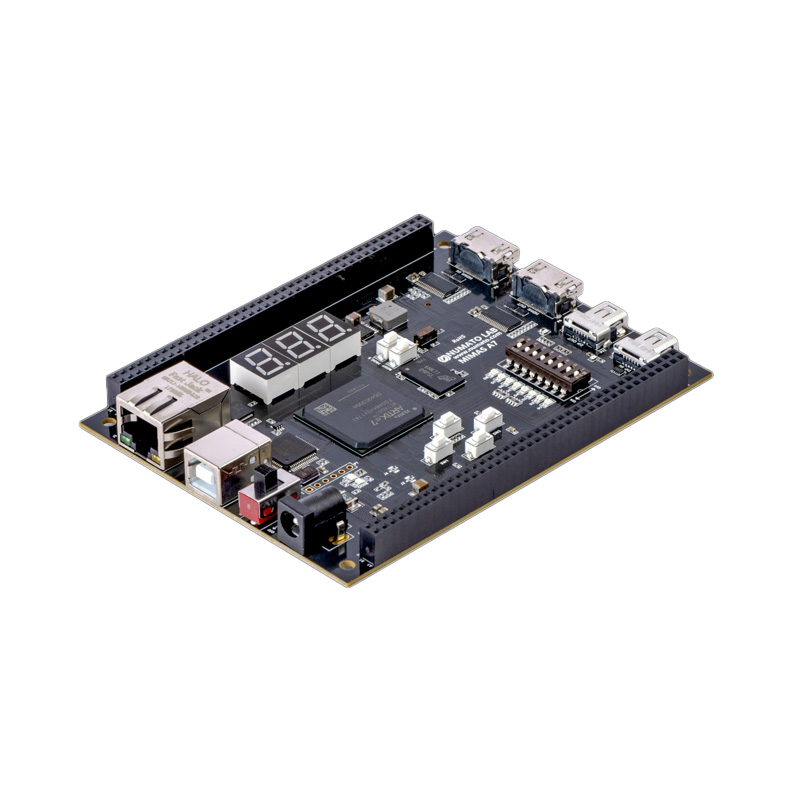

NumatoLab Mimas A7 Artix-7 FPGA Development Board | XC7A50T USB Module with Gigabit Ethernet & HDMI | For High-Speed Digital Signal & Video Processing
Description
SPIDER Automation NumatoLab Mimas A7 is an advanced, feature-rich FPGA development platform built for professionals and students looking to master high-performance programmable logic design. Driven by the robust AMD Artix-7 FPGA (XC7A50T-1FGG484C), the Mimas A7 delivers exceptional processing capability, low power consumption, and flexible peripheral integration for everything from rapid product prototypes to complex embedded computing systems.
Engineered to maximize development efficiency, the board features an onboard FTDI FT2232H USB 2.0 controller that supports seamless JTAG debugging and direct flash programming over USB, eliminating the need for costly external downloader cables. Equipped with 2Gb of high-speed DDR3 memory, 128Mb SPI configuration flash, Gigabit Ethernet, HDMI In/Out video interfaces, a Micro-SD card slot, and 80 precision-routed I/O lines (including 40 length-matched differential pairs), the Mimas A7 stands ready for demanding networking, video streaming, and data acquisition projects.
Key Features
- AMD Artix-7 FPGA (XC7A50T): High-performance 7-series programmable logic core housed in an FGG484 package optimized for speed and efficiency.
- 2Gb DDR3 SDRAM Memory: High-bandwidth system RAM dedicated to rapid data buffering and complex processing algorithms.
- 128Mb SPI Flash Storage: Non-volatile memory for reliable bitstream configuration storage and user application data.
- FTDI FT2232H USB 2.0 Controller: Dual-channel interface enabling high-speed serial communication and direct USB flash programming.
- Networking & Multimedia: Integrated Gigabit Ethernet port alongside HDMI Input and Output connectors for video pipelines.
- Precision Differential I/O: 80 General Purpose I/O pins featuring 40 professionally length-matched differential pairs for signal integrity.
- Interactive Peripherals: Onboard seven-segment display, user switches, and status LEDs for instant visual verification.
Benefits
- Cost-Effective Workflow: Load configurations directly onto onboard flash via USB without purchasing dedicated Xilinx programming hardware.
- High-Speed Signal Transmission: Length-matched differential pairs ensure clean, reliable transmission across high-frequency interfaces.
- All-In-One Networking & Video: Combine Ethernet, HDMI, and Micro-SD storage to build complete networked embedded systems without extra shields.
Applications
- Real-Time Video & Image Processing: Video stream manipulation, filtering, and display interfacing utilizing HDMI In/Out ports.
- High-Speed Data Acquisition: Multi-channel measurement instruments and high-throughput telemetry loggers.
- Embedded Networking Nodes: Ethernet-connected hardware accelerators and custom communication protocol bridges.
- Advanced Academic Research: Comprehensive teaching platform for university laboratories covering digital hardware design and HDL.
Package Includes
- 1 x NumatoLab Mimas A7 FPGA Development Board
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Series | SPIDER Automation / NumatoLab Mimas Series |
| Item Type | FPGA Development Board / Module |
| Model Order Code / SKU | Mimas A7 / SKU-SPIDER-MIMAS-A7 |
| FPGA Device / Core | AMD Artix-7 FPGA (XC7A50T-1FGG484C) |
| System Memory (RAM) | 2Gb DDR3 SDRAM (MT41J128M16HA-125 or Equivalent) |
| Flash Memory | 128Mb SPI Flash Memory (Configuration Storage) |
| Host Interface & USB | FTDI FT2232H, High-Speed USB 2.0 Interface |
| User I/O Pins | 80 General-Purpose I/Os (Including 40 Length-Matched Differential Pairs) |
| Networking & Video | Gigabit Ethernet, HDMI IN / OUT Interfaces |
| External Storage | Micro-SD Card Slot |
| Clock Source | 100MHz CMOS Oscillator |
| Configuration Modes | JTAG and USB (Direct SPI Flash Programming) |
| User Interface | Seven-Segment Display, User Switches & Status LEDs |
| Package Shipping Weight | 0.11 kg (110 g) |
| Package Shipping Dimensions | 16 cm × 11 cm × 5 cm |
