Description
The MCP23S17-E/SP is a high-performance 16-bit General Purpose Input/Output (GPIO) Expander IC featuring an industry-standard SPI (Serial Peripheral Interface). It allows microcontrollers to significantly expand their available digital input and output pins without increasing processor complexity, making it an ideal solution for embedded, industrial, and automation applications.
The MCP23S17 provides 16 individually programmable GPIO pins, configurable as inputs or outputs with internal pull-up resistors, interrupt capability, and flexible pin control. Its SPI communication enables fast and reliable data transfer while reducing the number of I/O pins required on the host microcontroller.
Packaged in a DIP-28 through-hole package, this IC is suitable for development boards, Arduino, STM32, ESP32, PIC, AVR, Raspberry Pi (via SPI), industrial controllers, robotics, and electronic prototyping. It offers a simple and cost-effective solution whenever additional digital I/O is required.

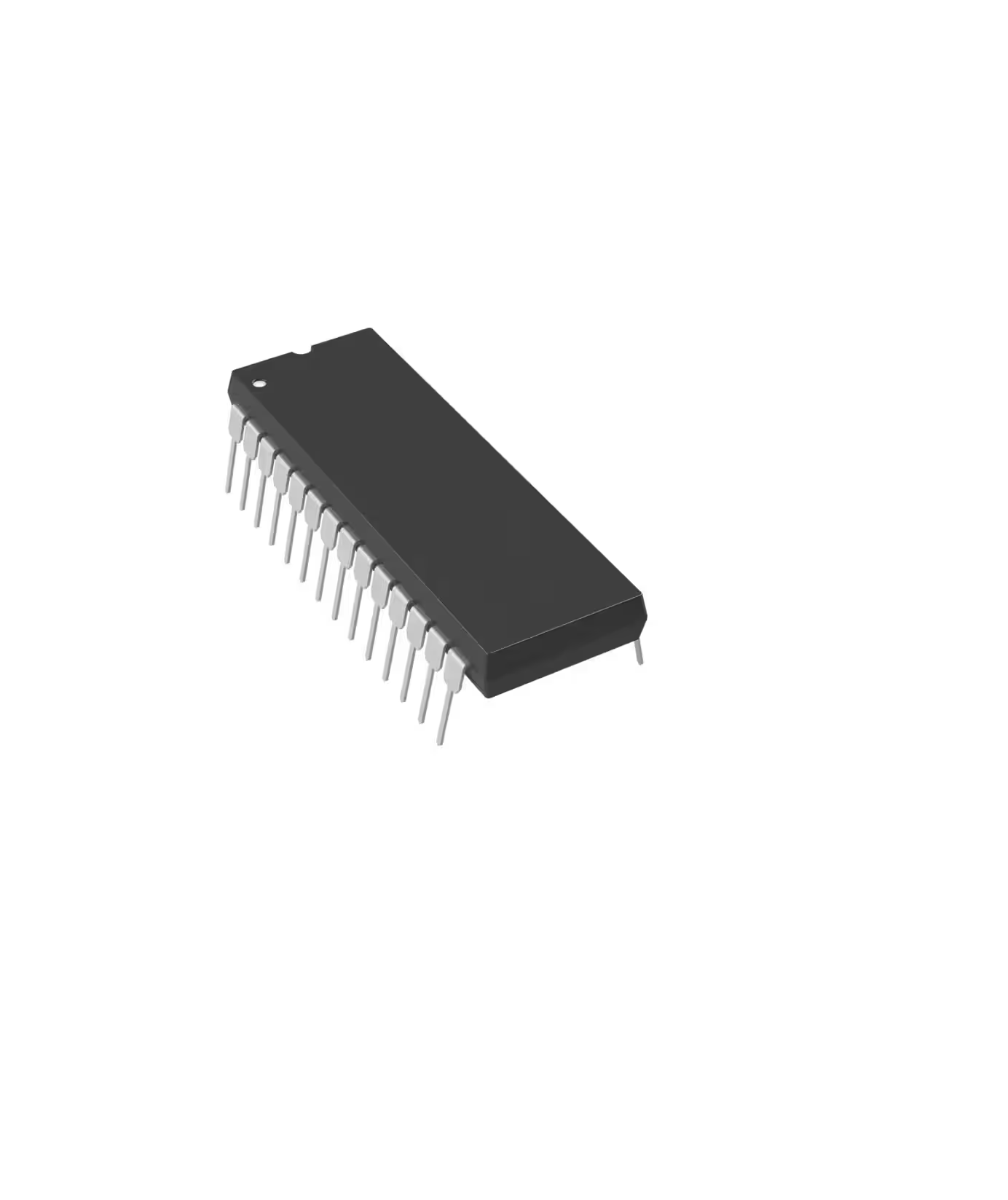

Note: Product images are for reference only. The actual product may vary in appearance, manufacturer marking, or logo depending on stock availability. For complete electrical specifications, register details, and application circuits, please refer to the datasheet available in the Attachment section.
Features
- 16-bit GPIO Input/Output Expander
- SPI serial communication interface
- 16 individually programmable GPIO pins
- Configurable input and output ports
- Internal pull-up resistors
- Interrupt-on-change capability
- High-speed SPI communication
- Low power consumption
- DIP-28 through-hole package
- Compatible with most SPI-enabled microcontrollers
Benefits
- Expands available GPIO pins without changing the microcontroller
- Reduces PCB complexity and wiring
- Simplifies large digital I/O projects
- Supports reliable high-speed SPI communication
- Improves scalability of embedded systems
- Ideal for industrial automation and control applications
- Easy to integrate into prototype and production designs
- Reliable operation with programmable interrupt support
Applications
- GPIO Expansion
- Industrial Automation
- Arduino Projects
- ESP32 Development
- STM32 Embedded Systems
- PIC Microcontroller Projects
- AVR Development Boards
- PLC Interfaces
- Robotics
- Home Automation
- Industrial Control Panels
- Keyboard Matrix Scanning
- LED Matrix Control
- Relay Control Systems
- Sensor Interface Expansion
- Data Acquisition Systems
- IoT Devices
- Embedded Control Systems
- Electronic Instrumentation
- Electronic Prototyping
Package Includes
- 1 x MCP23S17-E/SP 16-Bit GPIO Expander SPI Interface IC (DIP-28)
Specifications
| Parameter | Specification |
|---|---|
| Product Name | MCP23S17-E/SP |
| Device Type | GPIO Input/Output Expander IC |
| GPIO Pins | 16 |
| Communication Interface | SPI |
| Package | DIP-28 |
| Mounting Type | Through Hole |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 4 × 4 × 1 cm |
