Description

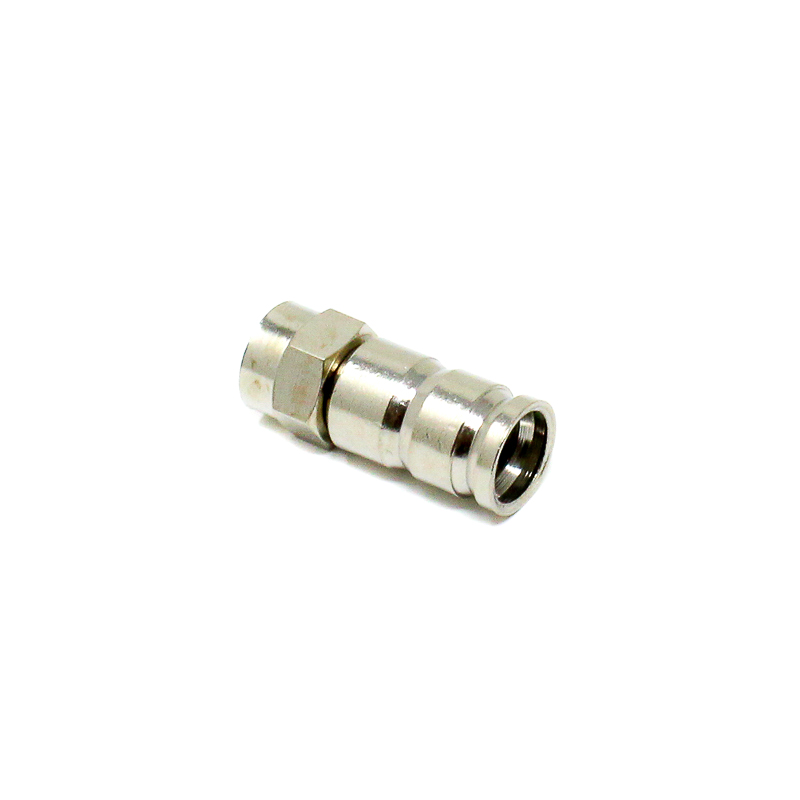

The F-Type RG6 Compression Connector is a high-performance, professional-grade interface designed for secure and reliable coaxial cable terminations. Engineered for 75-ohm systems, this connector is the industry standard for satellite TV, DTH set-top boxes, and CATV network distributions. The compression-style termination provides a superior, weather-tight seal that protects the cable connection from moisture and environmental contaminants, ensuring long-term signal integrity.
Featuring a durable nickel-plated zinc alloy body, this connector is built to withstand the rigors of both indoor and outdoor installations. Its 3/8-32 threaded coupling ensures a secure, vibration-resistant connection, while the streamlined design allows for quick and efficient assembly. With an impressive operating frequency range of up to 3GHz and excellent RF leakage characteristics (-100dB min @1GHz), this connector is an essential component for high-definition video and data distribution.
Note: Please ensure you are using a compatible compression tool for the installation to achieve a proper, permanent seal.
Features
- F-Type Male Plug (Straight/180°)
- Compression-style termination for a weather-tight, professional seal
- Optimized for 75Ω RG6 coaxial cables
- 3/8-32 threaded coupling for secure, tamper-resistant mounting
- High-grade nickel-plated zinc alloy construction
- Excellent RF shielding (Leakage -100dB min @1GHz)
- Durable build with ≥500 mating cycles
Benefits
- Provides a stable, low-loss signal path suitable for HD and 4K signals
- Compression design prevents moisture ingress, ideal for outdoor/roof-mounted dishes
- High cable retention (20 lbs min.) ensures resistance against cable strain
- Simple and fast assembly process for professional installers
- Broad compatibility with consumer electronic satellite and cable equipment
Applications
- DTH Satellite Dish and LNB Installations
- Set-Top Box (STB) and Satellite Receiver Connections
- CATV Networks and Distribution Systems
- High-Bandwidth Coaxial Data Distribution
- Consumer Coaxial Cable Assemblies
Package Includes
- 1 x F RG6 Connector (Compression Type)
Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Straight (180°) |
| Gender | Male |
| Mounting Type | Cable Mount |
| Termination Style | Compression Type |
| Body Material | Zinc Alloy |
| Body Plating | Nickel Plating |
| Impedance | 75 Ω |
| Frequency Range | 0 to 3 GHz |
| Operating Temperature | -40°C to +60°C |
| Coupling | 3/8-32 Thread |
