Description

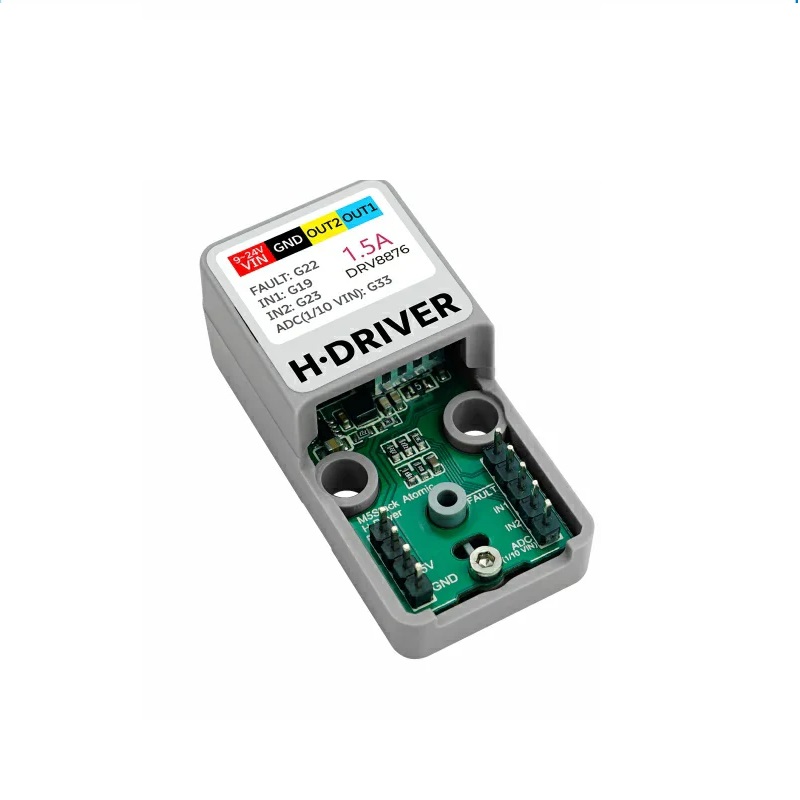

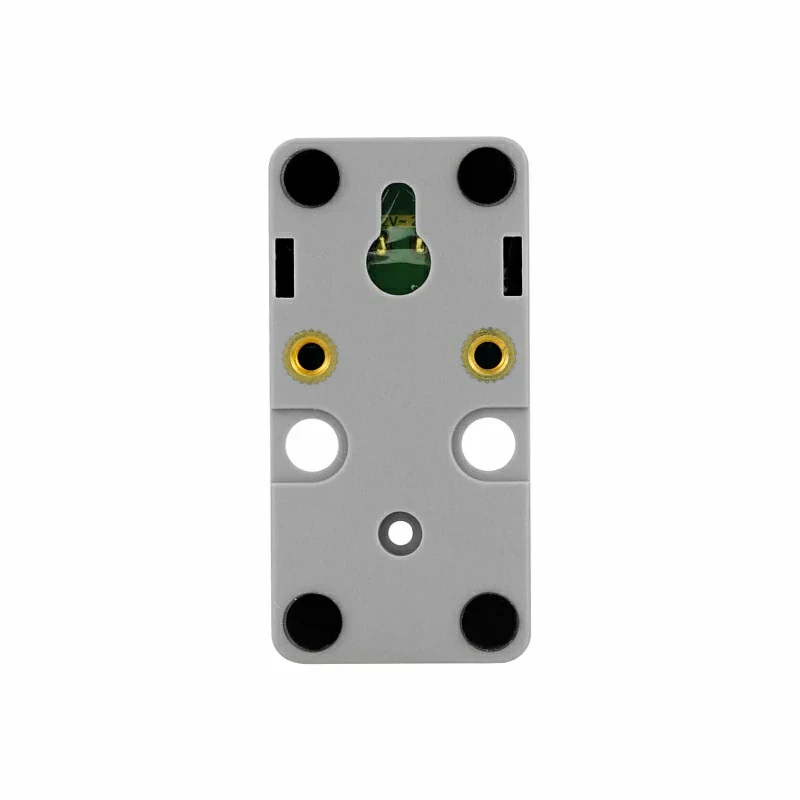

The Atomic H-Driver Base is a specialized H-bridge motor driver engineered specifically for integration with the M5Stack ATOM series controllers. Built around the high-performance DRV8876 motor driver chip, this module provides an all-in-one solution for precise speed control and bidirectional rotation of DC motors.
The base features an integrated DC/DC converter, allowing it to support a 9-24V/DC power input, which powers both the motors and the ATOM controller. It also includes a voltage divider circuit mapped to the ADC pin (G33) for real-time monitoring of the power supply status. With robust built-in protections—including thermal shutdown, overcurrent protection, and undervoltage lockout—it ensures reliable operation in demanding environments.
Note: Product images are for reference only. The actual product may vary in appearance depending on manufacturer marking. Please refer to the official documentation for complete wiring diagrams and library integration guides.
Features
- Driver Chip: Based on the high-efficiency DRV8876 H-bridge driver.
- High Performance: Delivers 1.5A continuous output current with a 2A peak capacity.
- Power Management: Integrated DC/DC circuit for powering the ATOM series via 9-24V DC input.
- Monitoring: Real-time power input monitoring via an onboard voltage divider.
- Safety & Protection: Built-in UVLO, CPUV, OCP, and TSD protection with a dedicated FAULT pin indicator.
- EMI Reduction: Spread spectrum clocking minimizes electromagnetic interference.
Benefits
- Seamless compatibility with the M5Stack ATOM controller ecosystem.
- Compact form factor suitable for robotics and small-scale automation projects.
- Extensive diagnostic protections prevent device damage under fault conditions.
- Supports high-voltage inputs (up to 24V), expanding application range beyond low-voltage logic.
Applications
- Precision DC Motor Control
- Robotics and Automated Vehicles
- Small-scale Industrial Automation
- Prototyping with M5Stack ATOM series
Package Includes
- 1 x Atomic H-Driver Base
- 1 x VH3.96-4P Connector
Specifications
| Parameter | Specification |
|---|---|
| Product Name | ATOMIC H-Bridge Driver Base (DRV8876) |
| Input Voltage | 9 – 24V DC |
| Output Current | 1.5A (Continuous), 2A (Peak) |
| Dimensions | 48 × 24 × 17.5 mm |
| Weight | 0.015 kg |
