Description

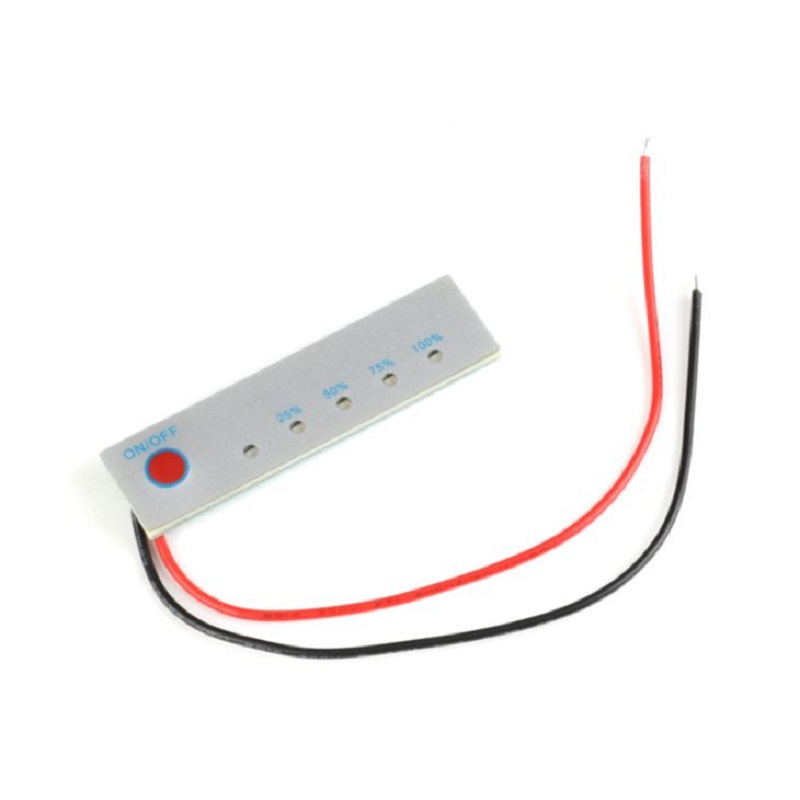

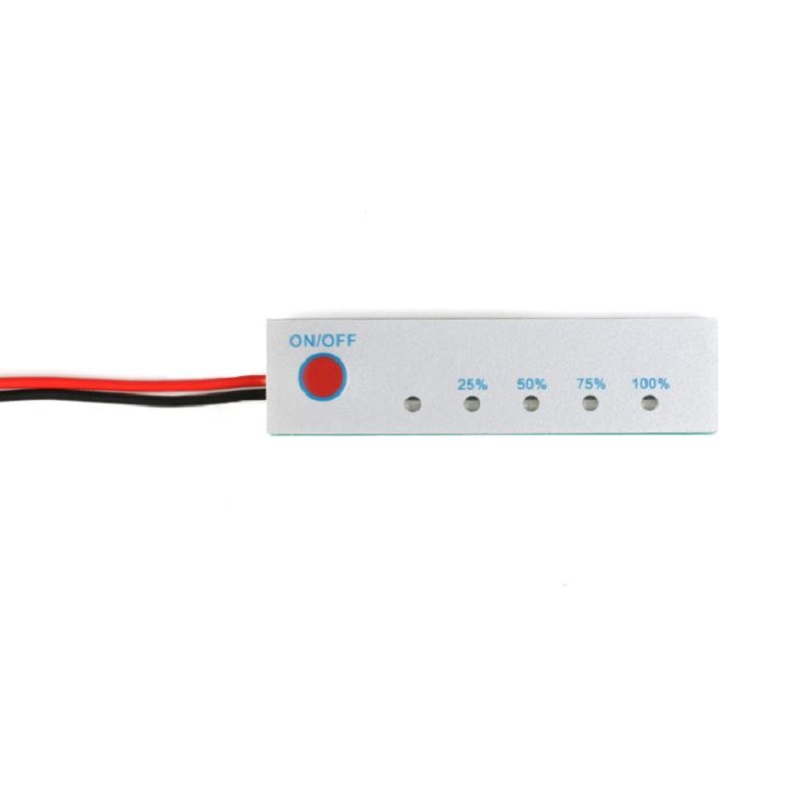

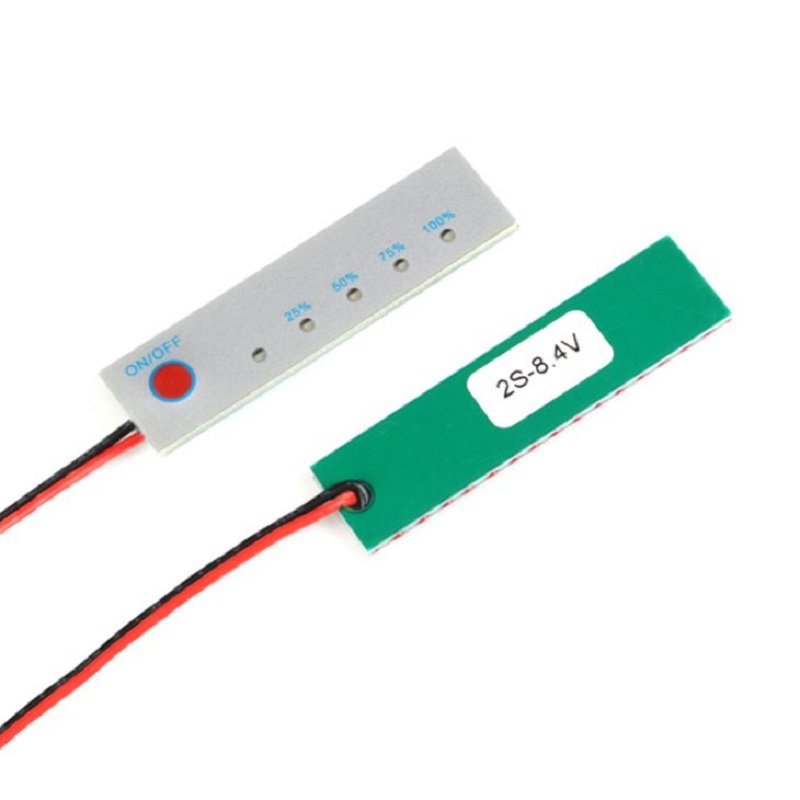

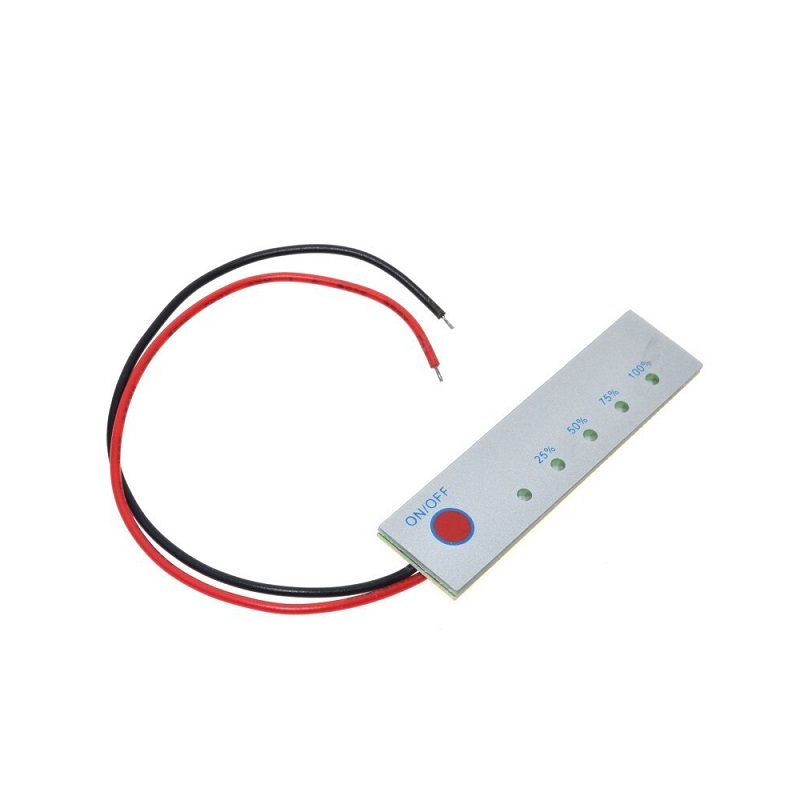

The Five-Level Lithium Battery Level Indicator is a compact, press-to-test diagnostic module designed to provide quick and reliable capacity monitoring for LiPo and lithium battery packs. Featuring a clear five-level LED display and a tactile red push button, this indicator allows you to check your battery’s charge and discharge state on demand simply by pressing and holding the button.
Engineered with built-in reverse polarity protection, the module safely prevents circuit damage if the wires are accidentally mismatched during installation. Equipped with a 140mm connection cable and an ultra-slim profile, it is an ideal portable power monitoring accessory for DIY electronics, custom battery boxes, and mobile projects.
Note: The module draws approximately 300mA only while the push button is actively held down; releasing the button immediately powers off the unit to conserve energy. Package includes 1 indicator board with integrated cable.
Key Features
- On-Demand Push-Button Activation: Press and hold the integrated red push button to check power levels; automatically powers off when released.
- Five-Level LED Voltage Display: Clear multi-stage LED array maps directly to specific voltage thresholds (L1: 9.6V, L2: 10.2V, L3: 10.8V, L4: 12.6V, plus full tier status).
- Reverse Polarity Protection: Smart internal circuit design safeguards the board against accidental reverse-wiring during hookup.
- Pre-Wired Lead Harness: Includes a convenient 140mm connection cable for fast and flexible wiring to your battery terminals.

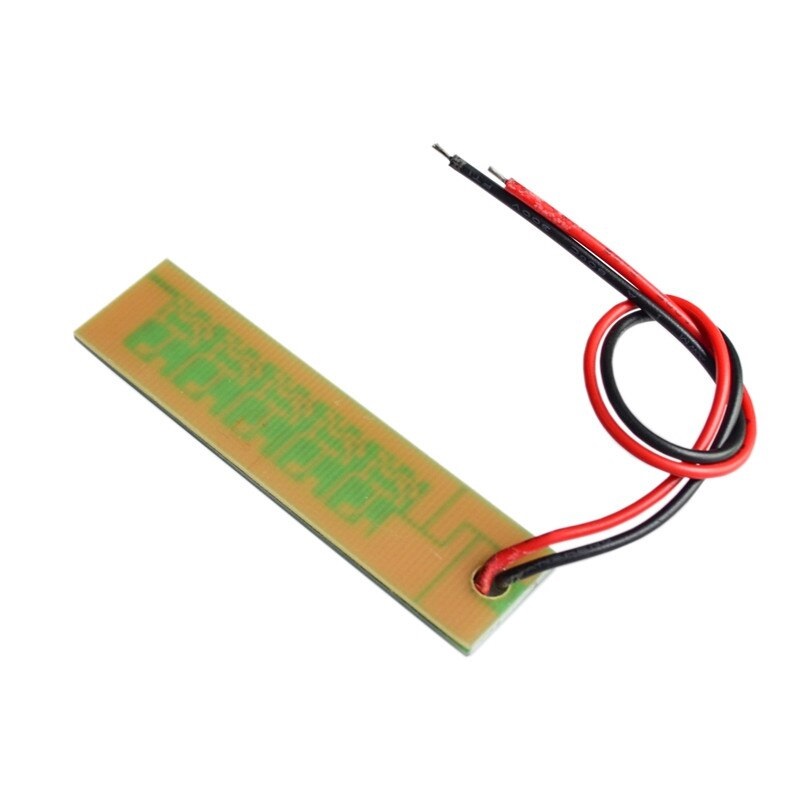

- Ultra-Compact Profile: Slim circuit board design (approx. 62 × 16 × 2.7 mm) fits easily into tight enclosures and custom faceplates.
Benefits
- Instant Power Checks: Quickly evaluate your battery pack’s operational status without dragging out a digital multimeter.
- Zero Standby Drain: Because power is only drawn while the button is pressed, the module creates zero parasitic battery drain during normal storage.
- Safe & Foolproof Setup: Reverse connection protection prevents accidental burnout during hobbyist installation.
Applications
- LiPo Battery Packs: State-of-charge monitoring for custom RC, drone, and portable LiPo power assemblies.
- DIY Power Banks & Enclosures: Add a quick-check voltage gauge to custom portable electronics and battery boxes.
- Maker & Prototyping Projects: Compact voltage monitoring tool for breadboards and experimental DC rigs.
Package Includes
- 1 x Five-Level Lithium Battery Level Indicator Board (with 140mm cable)
- 1 x Instruction Manual / Quick Guide
Specifications
| Parameter | Specification |
|---|---|
| Item Type | Battery Testing Equipment / Power Level Indicator Module |
| Model Type / Series | Five-Level LiPo Voltage LED Indicator Board |
| Battery Compatibility | LiPo and General Lithium Battery Packs |
| Display Type & Features | 5-Level LED Array with Tactile Red Push-Button Switch & Reverse Protection |
| Voltage Threshold Tiers | L1: 9.6V | L2: 10.2V | L3: 10.8V | L4: 12.6V (Plus 5th tier) |
| Max Operating Current | ~300 mA (Active only while push button is held down) |
| Connection Lead Length | 140 mm |
| Physical Product Dimensions (Thickness × Length × Width) | 2.7 mm × 62 mm × 16 mm |
| Net Weight / Shipping Weight | ~5 g / 0.005 kg |
| Shipping Dimensions | 5 cm × 2 cm × 1 cm |
