Description

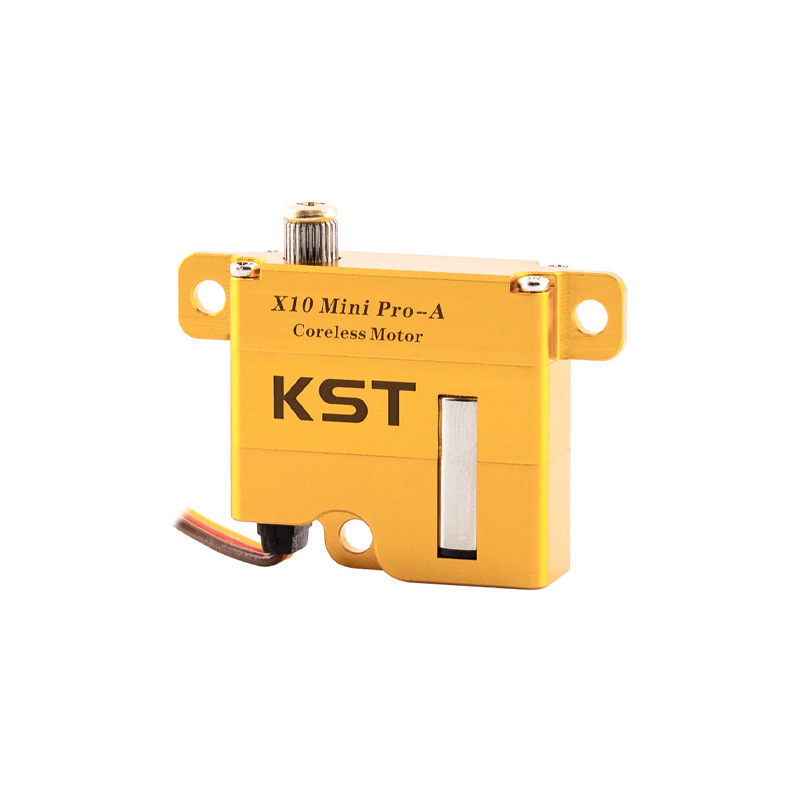

The KST X10 Mini Pro-A is a high-performance digital actuator engineered for demanding precision applications where volumetric efficiency and reliable motion control are critical. Featuring a coreless DC motor and a reinforced geartrain, this unit delivers high-fidelity output with superior torque-to-size density. The chassis is constructed from anodized CNC-machined aluminum, which provides exceptional structural rigidity and efficient passive heat dissipation during sustained high-duty operations.
Designed for complex mechatronic environments, the X10 Mini Pro-A offers an extended 120° rotation range and 1µs-class response accuracy, making it ideal for automated inspection platforms, specialized robotic gimbals, and high-precision instrumentation. Integrated firmware features—including programmable soft-start ramps, travel limit adjustments, and signal direction customization—allow for seamless integration into diverse custom control architectures.
Note: Product images are for reference only. The actual product may vary slightly in appearance or dimensions.
Key Features
- Anodized CNC Aluminum Housing: Precision-machined for high structural rigidity and efficient passive heat dissipation.
- Hardened Steel Geartrain: Engineered for minimal backlash and exceptional wear resistance, ensuring long-term positional accuracy.
- Programmable Logic: Advanced firmware support for customizing neutral points, travel limits, signal direction, and soft-start profiles.
- High Torque-to-Mass Ratio: Delivers 8.0kg-cm of stall torque within a compact 20g footprint, ideal for high-density hardware installations.
- Enhanced Travel Geometry: Supports an extended 120° rotation range, providing greater versatility in mechanical linkage design.
- High-Speed Response: Optimized for rapid, transient-free positioning at 0.08 sec/60° transit speeds for responsive control loops.
Benefits
- Enhanced Operational Reliability: Robust coreless motor technology and dual-bearing (2BB) support ensure smooth operation and extended service life.
- System Integration Flexibility: Wide-input voltage compatibility (4.8V – 8.4V) enables direct implementation with 2S LiPo battery architectures.
- Mechanical Stress Reduction: Programmable soft-start functionality minimizes initial torque spikes, protecting delicate mechanical linkages during system power-up.
- Precision Repeatability: High-frequency (333Hz) signal processing maintains consistent performance under varying mechanical loads.
- Weight-Optimized Construction: High-strength CNC components provide performance-grade motion without excessive mass, essential for payload-sensitive deployments.
Applications
- Mechatronic Actuation: Ideal for high-torque joint articulation, micro-positioning hardware, and precision robotic grippers.
- Precision Instrumentation: Suitable for automated sensor orientation, optical alignment systems, and specialized testing fixtures.
- Automated Systems: Deployed in compact conveyor diverters, sorting gates, and laboratory monitoring actuators.
- Industrial Prototyping: A dependable component for validating mechanical linkages and motion control logic in research and development.
Package Includes
- 1 x KST X10 Mini Pro-A Servo
- 2 x Plastic Servo Horns
- 4 x Mounting Screws
- 1 x Servo Horn Screw
Specifications
| Parameter | Specification |
|---|---|
| Model Name | KST X10 Mini Pro-A |
| Operating Voltage | 4.8V – 8.4V DC |
| Torque (@8.4V) | 8.0 kg-cm |
| Transit Speed (@8.4V) | 0.08 sec/60° |
| Motor Type | Coreless DC Motor |
| Gear Material | Hardened Steel |
| Weight | 20g ± 10% |
| Dimensions | 30mm x 10mm x 28mm |
