Description

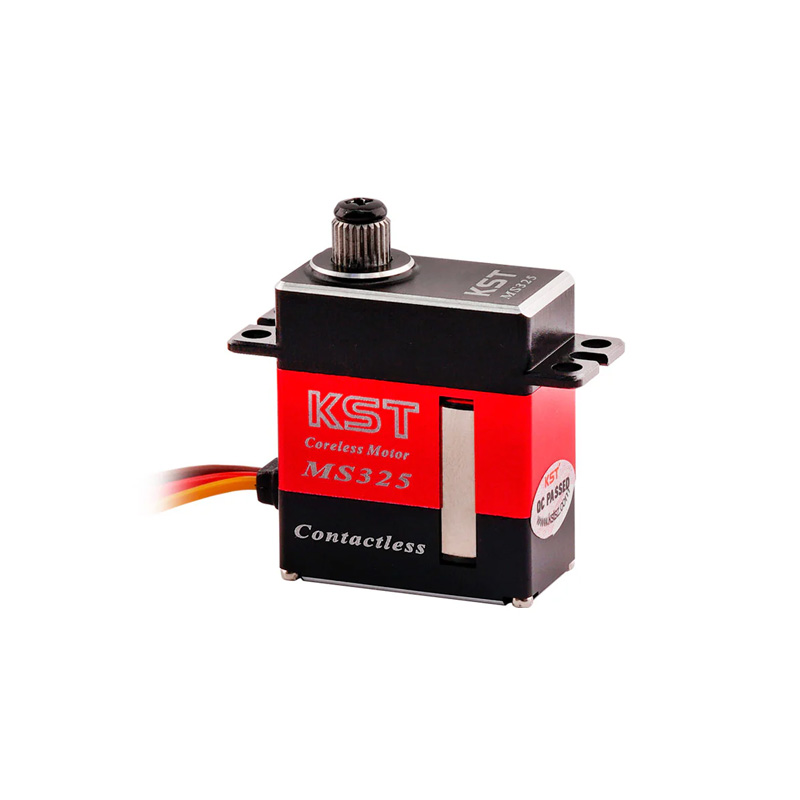

The KST MS325 V6.0 is a high-precision digital actuator incorporating advanced contactless Hall-effect magnetic sensors for position feedback. By eliminating the mechanical wear associated with traditional potentiometers, this servo offers superior positional repeatability and operational longevity. Powered by a high-efficiency coreless DC motor and featuring a reinforced hardened steel geartrain, the MS325 provides the high-fidelity motion control necessary for mission-critical industrial automation and compact robotic systems.
Housed in a precision-machined CNC aluminum alloy chassis, the MS325 V6.0 is built to withstand rigorous mechanical stress while maintaining excellent thermal dissipation. Its programmable firmware supports a soft-start feature, which mitigates initial motor strain, further extending the lifecycle of the component. For developers and engineers seeking a reliable, low-maintenance micro-actuator, the MS325 represents a professional-grade integration of modern sensing technology and robust mechanical construction.
Note: Product images are for reference only. The actual product may vary slightly in appearance or dimensions.
Key Features
- Hall-Effect Magnetic Sensing: Contactless feedback technology ensures high-resolution positional accuracy and eliminates wear-prone mechanical components.
- Hardened Steel Geartrain: Engineered for minimal backlash and exceptional wear resistance, ensuring long-term mechanical reliability.
- CNC Aluminum Housing: Precision-machined chassis facilitates rapid thermal dissipation, maintaining performance stability under prolonged operation.
- High-Torque Density: Delivers 5.2kg-cm of stall torque within a compact 20g, micro-servo footprint, ideal for high-density hardware installations.
- Programmable Soft-Start: Advanced firmware profiles prevent mechanical shock during system power-on, protecting sensitive linkages.
- Industrial-Grade Build: Dual-ball bearing (2BB) support ensures smooth, low-friction operation in continuous-use environments.
Benefits
- Enhanced Operational Longevity: Magnetic sensing and coreless motor technology significantly reduce internal friction and mechanical failure points.
- System Integration Flexibility: Wide-input voltage compatibility (6.0V – 8.4V) enables direct implementation with diverse industrial power architectures.
- Superior Thermal Management: The aluminum alloy case acts as an integrated heat sink, preventing performance degradation during intensive duty cycles.
- Precision Repeatability: Advanced feedback processing guarantees consistent, jitter-free performance under varying mechanical loads.
- Simplified Calibration: Programmable parameters allow for exact fine-tuning of motion paths, vital for high-accuracy industrial positioning tasks.
Applications
- Precision Instrumentation: Ideal for automated sensor orientation, optical alignment systems, and laboratory monitoring actuators.
- Compact Industrial Automation: Suitable for high-precision robotic grippers, automated gate mechanisms, and micro-sorting hardware.
- Embedded Mechatronics: Perfectly suited for developers integrating reliable, high-speed motion capability into space-constrained enclosures.
- Industrial Prototyping: A dependable component for validating motion control logic in professional product development and automated test rigs.
Package Includes
- 1 x KST MS325 V6.0 Digital Servo
- 1 x Comprehensive Accessories Set (mounting hardware, screws)
Specifications
| Parameter | Specification |
|---|---|
| Model Name | KST MS325 V6.0 |
| Operating Voltage | 6.0V – 8.4V DC |
| Stall Torque (@8.4V) | 5.2 kg-cm |
| Transit Speed (@8.4V) | 0.07 sec/60° |
| Motor Type | Coreless DC Motor |
| Feedback Type | Contactless Hall-Effect |
| Gear Material | Hardened Steel |
| Weight | 20g ± 10% |
| Dimensions | 23mm x 12mm x 27.5mm |
