Description

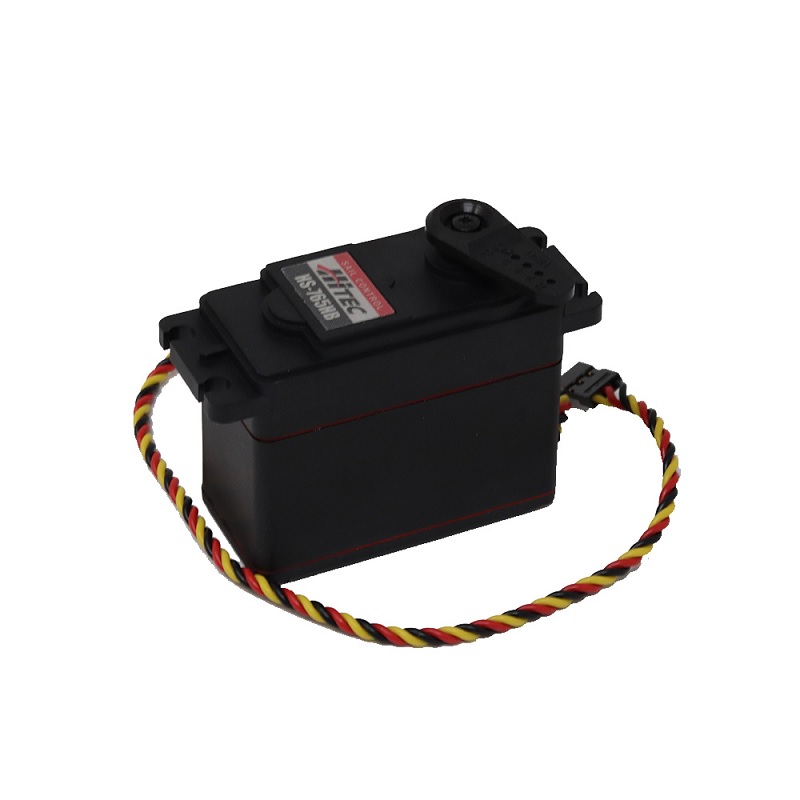

The Hitec HS-765HB is a specialized, high-performance sail control servo engineered specifically for the demanding environment of competitive and recreational RC sailing. Featuring Hitec’s proprietary Karbonite gear train, this servo offers a remarkable balance of strength and wear resistance, significantly outperforming standard plastic gears. With a robust torque rating of up to 13.2kg-cm, it provides the sustained pulling power required to adjust sails precisely, even under heavy wind loads.
Designed for reliability in marine settings, the HS-765HB includes a water and dust-resistant case, ensuring that internal electronics are protected from moisture and salt air. It utilizes a dual ball-bearing output shaft and a high-efficiency 3-pole ferrite motor to deliver smooth, consistent actuation throughout its 140° range of movement. Whether you are navigating an RC sailboat in light breezes or competitive heavy-air conditions, this servo provides the precision and durability necessary to keep your vessel performing at its peak.
Note: Product images are for reference only. The actual product may vary slightly in appearance or dimensions.
Key Features
- High-Torque Performance: Delivers up to 13.2kg-cm of torque, providing the necessary force to manage large sails in varying wind conditions.
- Durable Karbonite Gearing: Advanced gear material provides exceptional shock resistance and longevity, far exceeding the lifespan of standard resin gears.
- Marine-Ready Protection: Features a robust water and dust-resistant housing, specifically designed to withstand the harsh, wet environments encountered in RC sailing.
- 140° Sail Control Range: Includes a 4.9-inch sail arm engineered for high-travel movement, enabling quick and efficient sail adjustments.
- Dual Ball Bearing Output: The output shaft is supported by dual ball bearings, reducing friction and ensuring jitter-free, smooth sail rotation.
Benefits
- Enhanced Reliability: The sealed case and Karbonite gears significantly reduce the risk of mechanical or electrical failure in damp marine conditions.
- Precise Sail Geometry: High-resolution control allows for exact sail-trimming, giving you a competitive edge on the water.
- Long-Term Durability: Premium internal components minimize wear and tear, ensuring consistent performance throughout long racing seasons.
- Optimized Efficiency: The 3-pole ferrite motor and low-friction bearings provide reliable power with optimized current draw, extending your radio system’s battery life.
- Versatile Mounting: The industry-standard 24mm output shaft diameter ensures easy compatibility with most existing RC sailboat mounting systems and linkages.
Applications
- RC Sailboat Racing: The gold standard for competitive sail control, offering the precision needed for tactical sailing.
- Recreational RC Sailing: Provides trouble-free operation for weekend sailors who demand high reliability and minimal maintenance.
- Scale Marine Models: Perfect for large-scale maritime models requiring powerful, waterproof control for complex rigging.
- Automated Winch Systems: Can be repurposed for any automation project that requires high-torque, waterproof rotary control within an RC-compatible format.
- Environmental Monitoring Buoys: The waterproof construction makes it suitable for experimental remote-operated water-based sensor platforms.
Package Includes
- 1 x Hitec HS-765HB Karbonite Sail Control Servo
- 1 x 4.9-inch Sail Arm
- 1 x Comprehensive Accessory Hardware Kit
Specifications
| Parameter | Specification |
|---|---|
| Model Name | HS-765HB |
| Operating Voltage | 4.8V – 6.0V DC |
| Max Torque (@6V) | 13.2 kg-cm |
| Transit Speed (@6V) | 0.23 – 0.28 sec/60° |
| Gear Material | Karbonite |
| Motor Type | 3-Pole Metal Brush Ferrite |
| Dimensions | 59mm x 29mm x 50mm |
| Weight | 110g |
