Description

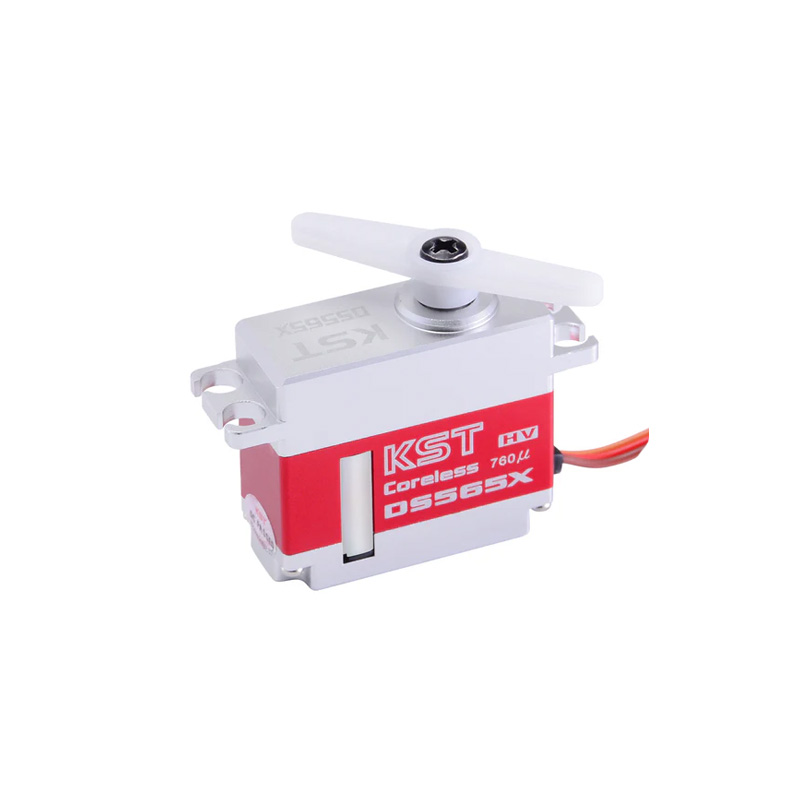

The KST DS565X is a specialized high-speed digital actuator engineered for applications requiring rapid, ultra-responsive tail-control dynamics. Featuring an advanced coreless DC motor and a reinforced hardened steel geartrain, this unit is optimized for environments where micro-second latency is critical. The chassis is constructed from anodized CNC aluminum, providing the structural rigidity and efficient heat dissipation necessary for high-frequency (560Hz) continuous-duty industrial and mechatronic applications.
Designed for absolute precision, the DS565X incorporates programmable logic, allowing for granular adjustments of travel limits, neutral points, and soft-start acceleration profiles. Its high-frequency signal processing and dual-ball bearing support ensure smooth, jitter-free positioning, making it a professional-grade solution for automated control systems, precision gimbals, and high-speed robotic linkages. With a compact 15mm-thick profile, it offers seamless integration into space-constrained automated assemblies.
Note: Product images are for reference only. The actual product may vary slightly in appearance or dimensions.
Key Features
- Ultra-High-Speed Response: Optimized for rapid movement with transit speeds as low as 0.04sec/60°, essential for high-fidelity control loops.
- Programmable Logic: Advanced firmware supports digital adjustment of travel limits, soft-start profiles, and signal parameters for custom synchronization.
- Hardened Steel Geartrain: Features ultra-durable steel gears with minimal backlash, ensuring long-term positional accuracy.
- CNC Aluminum Housing: Precision-machined chassis facilitates rapid thermal dissipation, maintaining performance stability under prolonged operation.
- Coreless DC Motor Technology: Provides high power-to-weight density and exceptional responsiveness for dynamic control environments.
- Industrial-Grade Reliability: Dual-ball bearing (2BB) configuration ensures smooth, low-friction operation in continuous-use environments.
Benefits
- Minimal Latency: High-frequency (560Hz) signal processing improves system reaction times, increasing overall automation throughput.
- Superior Thermal Management: The aluminum alloy case acts as a heat sink, preventing performance degradation during intensive duty cycles.
- Durability Under Stress: Hardened steel components resist wear and mechanical fatigue, reducing maintenance intervals in harsh environments.
- Versatile Integration: Wide input voltage range (6.0V – 8.4V) enables seamless implementation into diverse industrial power architectures.
- Precision Repeatability: Programmable settings allow for exact calibration, vital for high-accuracy industrial positioning and alignment tasks.
Applications
- Industrial Automation: Ideal for high-speed robotic linkages, automated sorting gates, and precision-timed divert systems.
- Precision Instrumentation: Suitable for automated sensor orientation, optical alignment systems, and laboratory monitoring actuators.
- Automated Testing: A dependable component for validating mechanical linkages and motion control logic in research-grade test rigs.
- Embedded Mechatronics: Perfectly suited for developers integrating high-speed motion capability into compact, automated enclosures.
Package Includes
- 1 x KST DS565X Mini Digital Tail Servo
- 1 x Comprehensive Accessories Set
Specifications
| Parameter | Specification |
|---|---|
| Model Name | KST DS565X |
| Operating Voltage | 6.0V – 8.4V DC |
| Stall Torque (@8.4V) | 6.0 kg-cm |
| Transit Speed (@8.4V) | 0.04 sec/60° |
| Motor Type | Coreless DC Motor |
| Gear Material | Hardened Steel |
| Operating Frequency | 760μs / 560Hz |
| Weight | 40g ± 10% |
| Dimensions | 35.5mm x 15mm x 32.5mm |
