Description

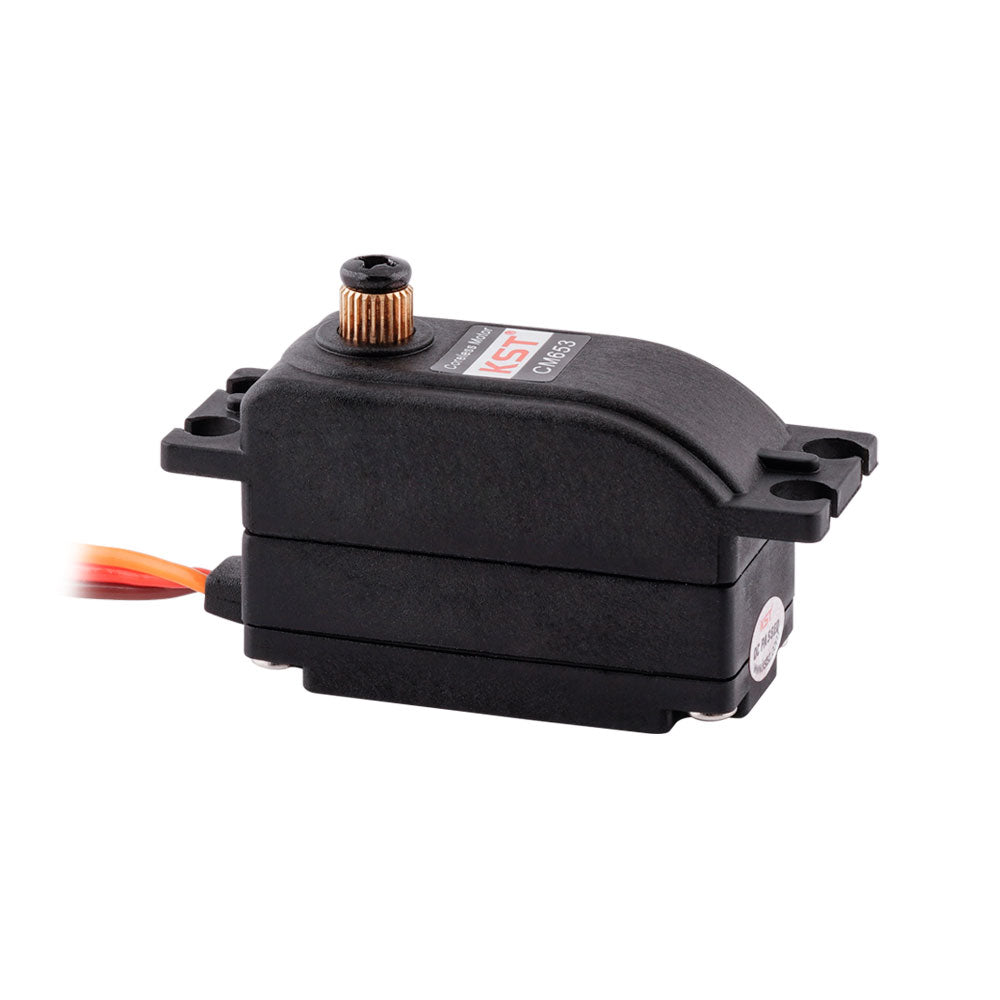

The KST CM653 is a high-performance, low-profile digital actuator engineered specifically for space-constrained industrial and automotive applications. Despite its sleek design, this servo delivers a formidable 18kg-cm of stall torque at 8.4V, making it an ideal candidate for robotic steering mechanisms, automated test rigs, and high-precision ground vehicle control. Featuring an IP65-rated splash-proof housing, the CM653 provides enhanced reliability in challenging environmental conditions where dust or moisture ingress might compromise standard actuators.
Driven by an efficient coreless DC motor and supported by a robust dual-ball bearing geartrain, the CM653 offers high-fidelity motion control with minimal internal friction. Its advanced programmable firmware supports custom configuration of travel endpoints, acceleration profiles, and a soft-start function to mitigate mechanical shock during power-on. As a versatile and rugged actuator, the CM653 is a professional-grade solution for developers needing consistent, responsive, and durable motion control in demanding automation environments.
Note: Product images are for reference only. The actual product may vary slightly in appearance or dimensions.
Key Features
- Low-Profile Form Factor: Optimized for installations where vertical space is limited, without sacrificing torque or structural rigidity.
- IP65 Splash-Proof Rating: Ruggedized design provides protection against water spray and dust, ensuring longevity in diverse operational environments.
- High-Torque Performance: Delivers up to 18kg-cm of stall torque, providing powerful, decisive action for high-load steering and articulation tasks.
- Coreless Motor Efficiency: High-performance motor technology ensures rapid response times and consistent power delivery with reduced electrical noise.
- Programmable Logic: Advanced firmware allows for digital adjustment of operating parameters via programming box or USB link for specialized motion requirements.
- Soft-Start Functionality: Integrated soft-start profile protects mechanical linkages and drive gears from torque spikes during system startup.
Benefits
- Enhanced Operational Longevity: IP65 protection and high-efficiency coreless motor technology minimize the impact of external environmental factors.
- System Integration Flexibility: Wide-input voltage compatibility (4.8V – 8.4V) enables seamless implementation across various power architectures.
- Superior Reliability: Dual-ball bearing support and robust metal geartrain ensure smooth, stable operation even under sustained mechanical stress.
- Precision Calibration: Programmable parameters facilitate granular control over motion profiles, reducing time spent on manual linkage adjustment.
- Consistent Performance: Engineered for high repeatability, vital for automated steering and precision orientation systems in ground-based robotics.
Applications
- Industrial Automation: Suitable for compact steering mechanisms, auxiliary robotic arms, and automated gate actuators.
- Precision Instrumentation: A dependable component for validating motion control in specialized testing and diagnostic equipment.
- Ground-Based Robotics: Perfect for high-performance scale vehicles, autonomous mobile platforms, and ruggedized sensors.
- Embedded Mechatronics: Ideally suited for developers integrating high-torque, splash-resistant motion capability into compact industrial enclosures.
Package Includes
- 1 x KST CM653 Low-Profile Digital Servo
- 1 x Comprehensive Accessories Set
Specifications
| Parameter | Specification |
|---|---|
| Model Name | KST CM653 |
| Operating Voltage | 4.8V – 8.4V DC |
| Stall Torque (@8.4V) | 18.0 kg-cm |
| Transit Speed (@8.4V) | 0.08 sec/60° |
| Motor Type | Coreless DC Motor |
| Waterproof Level | IP65 Splash-Proof |
| Programmable | Yes (via Tool/USB) |
| Bearings | Dual Ball Bearings |
