Description

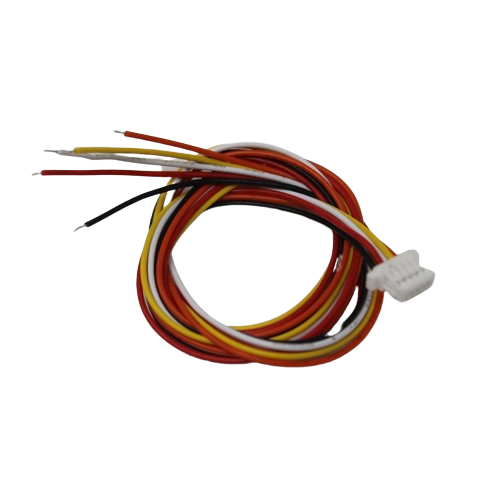

The WD100EW-05 is a 5-pin female housing connector featuring a 1mm pitch, pre-assembled with 300mm long 30 AWG gauge wire leads. Engineered for applications requiring precise and compact electrical connections, this assembly offers an insulation impedance rating of 10 MΩ at 300V DC. It provides a ready-to-install solution for internal signal transmission in space-constrained electronic devices and modular systems.
Features
- Connector Type: 5-pin Female Housing Connector
- Pitch: 1.0 mm
- Wire Specifications: 300mm length, 30 AWG gauge
- Insulation Impedance: 10 MΩ (DC 300V)
- Pre-assembled configuration for efficient installation
Package Includes
- 1 x JST-SH 1.0mm 5-pin Female Housing Connector with 300mm Wire (30 AWG)
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Wenda Connectors |
| Model/Type | WD100EW-05 / Female Housing |
| Pitch | 1.0 mm |
| Number of Pins | 5 |
| Wire Length | 300 mm |
| Wire Gauge | 30 AWG |
| Insulation Impedance | 10 MΩ (DC 300V) |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 5 × 5 × 1 cm |
