Description

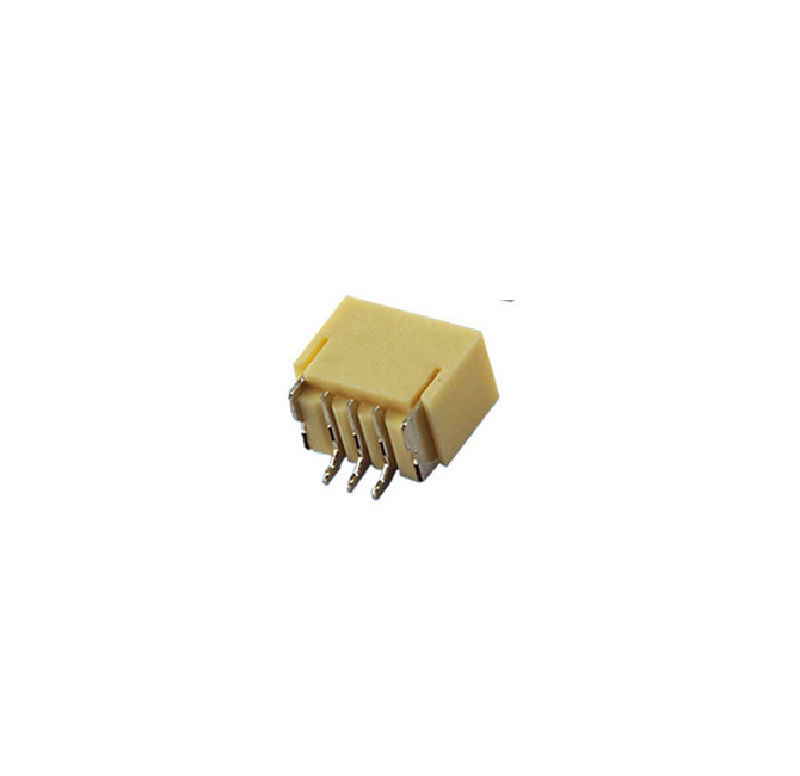

The JST-SH 1mm Pitch 3-Pin Male E-Type Horizontal Wafer Connector is a high-precision, ultra-compact interconnect solution designed for space-constrained electronic applications. Featuring a 1mm pitch and a horizontal (right-angle) single-row configuration, this connector is optimized for high-density wire-to-board (WTB) connections. Its streamlined design simplifies assembly and maintenance, making it an ideal choice for miniaturized devices, portable electronics, and modern control systems that demand reliable, low-profile connectivity.
Key Features
- Ultra-Compact Design: 1mm pitch provides a tiny footprint, perfect for designs where space is at an absolute premium.
- Horizontal Orientation: The E-type horizontal configuration allows for low-profile cable routing parallel to the PCB surface.
- Efficient Single-Row Layout: Simplifies PCB layout, installation, and inspection processes.
- Reliable Connectivity: Engineered for secure, consistent electrical contact in demanding, small-scale electronic environments.
Applications
- Miniaturized Electronics: Perfect for internal connections in smartphones, wearables, and handheld diagnostic tools.
- Advanced Sensor Modules: Ideal for compact sensor-to-board interfaces in industrial and robotics applications.
- Consumer Devices: A dependable choice for low-power signal routing in modern, slim-profile electronics.
Package Includes
- 1 x JST-SH 1mm Pitch 3-Pin Male E-Type Horizontal Single-Row WTB Connector
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Wenda Connectors |
| Item Type | Horizontal Male Wafer Connector (WTB) |
| Pitch | 1.0 mm |
| Number of Pins | 3 |
| Gender | Male |
| Rated Voltage | 50 V AC/DC |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 5 x 5 x 1 cm |
