Description

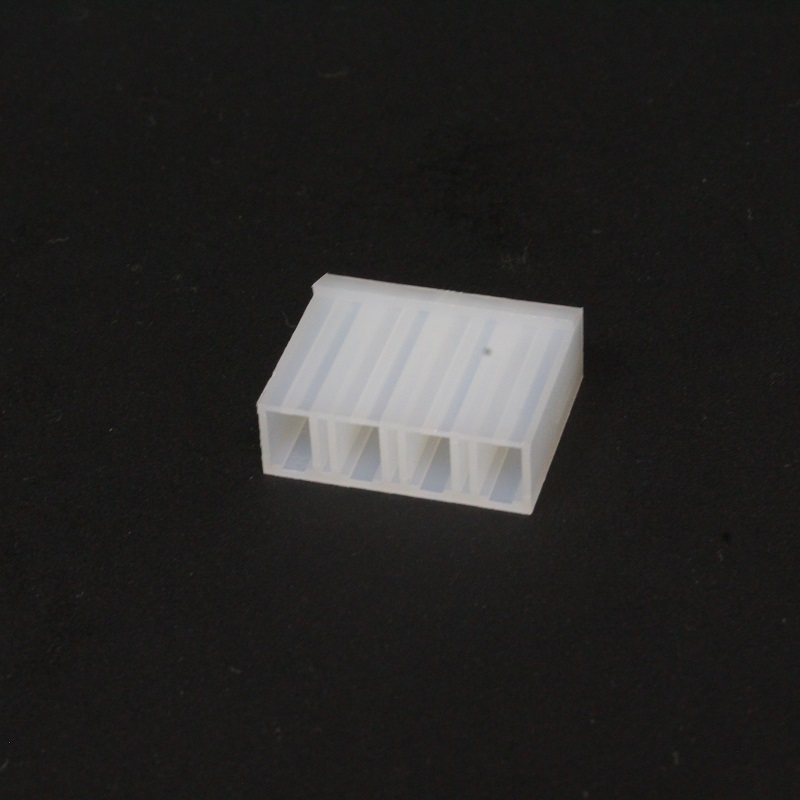

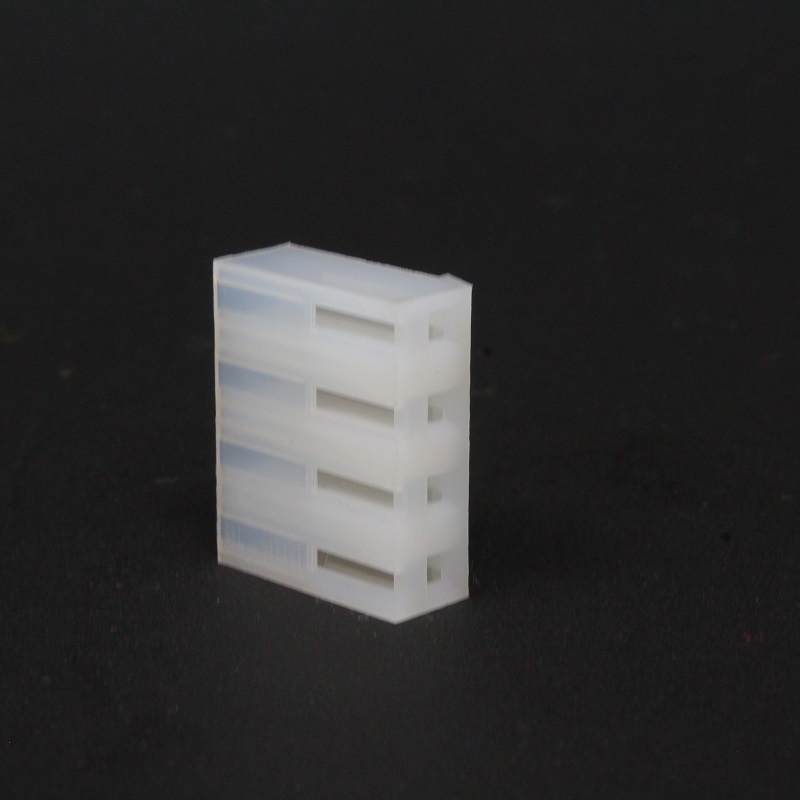

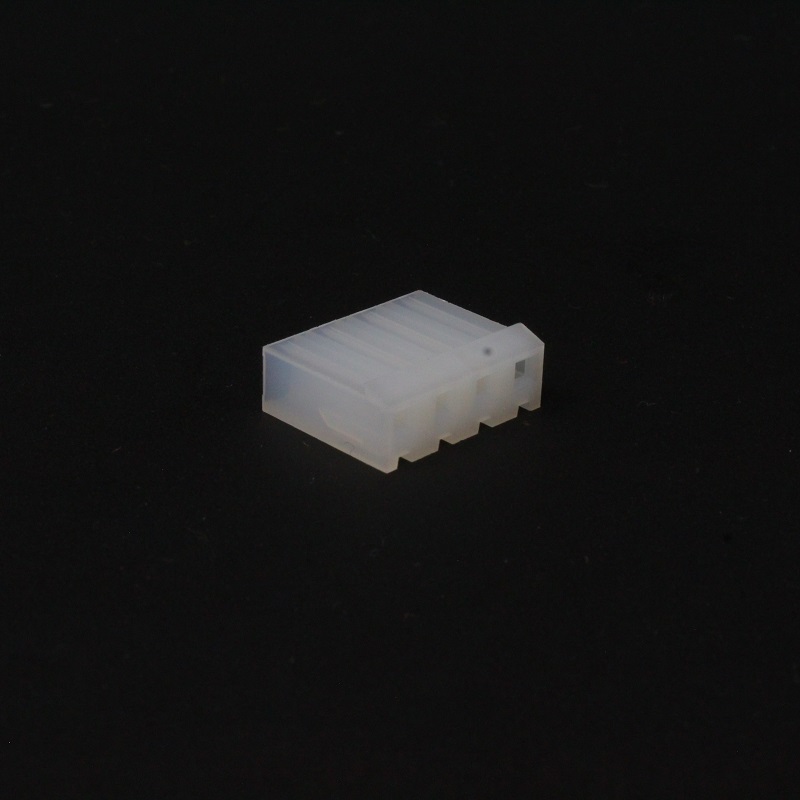

The 5.08-A/AW 4-pin female housing connector is designed for high-performance and reliable electrical connectivity. With a precise 5.08mm pitch, this component offers excellent compatibility with a wide range of standard wire sizes (AWG #24 to #18). Available in both straight and right-angle configurations, it provides the flexibility needed for various wiring setups, while its robust construction ensures long-term durability even in demanding environments.
Engineered for versatility, this connector is a preferred choice for professionals requiring a secure interface in electronics, automotive, and industrial systems. Its compact design makes it an ideal solution for projects where space is limited but electrical integrity remains a top priority.
Features
- Flexible Configuration: Available in both straight (A) and right-angle (AW) orientations to suit specific board layouts.
- Reliable Connectivity: 4-pin design ensures a secure, stable electrical path for consistent power and signal transmission.
- Durable Build: Constructed with high-grade materials to withstand the rigors of industrial and automotive environments.
- Space-Efficient: Compact form factor makes it perfect for applications where internal space is at a premium.
- User-Friendly: Designed for easy installation, streamlining the assembly process for both prototypes and mass production.
- Wide Compatibility: Supports wire gauges from 24 to 18 AWG, offering great versatility for different current requirements.
Applications
- Automotive Electronics: Reliable interface for vehicle wiring harnesses, sensors, and lighting modules.
- Industrial Automation: Used for connecting control boards to motors, actuators, and power supplies in machinery.
- Power Supply Units: Ideal for distributing current to various components within power supply assemblies.
- Consumer Electronics: Standard choice for modular internal connections in high-current home appliances.
- HVAC Systems: Secure connectivity for control panels and heating/cooling system electronics.
- Robotics & Hardware: Essential for building high-reliability modular hardware systems.
Package Includes
- 1 x 5.08-A/AW 5.08mm 4-pin Female Housing Connector
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Current | 7A |
| Rated Voltage | 250V |
| Withstand Voltage | 1000V AC (1 min) |
| Contact Resistance | 20MΩ |
| Insulation Resistance | 1000MΩ |
| Operating Temperature | -40°C to +85°C |
| Wire Size Compatibility | 24 to 18 AWG |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 12 × 9 × 2 cm |
