Description

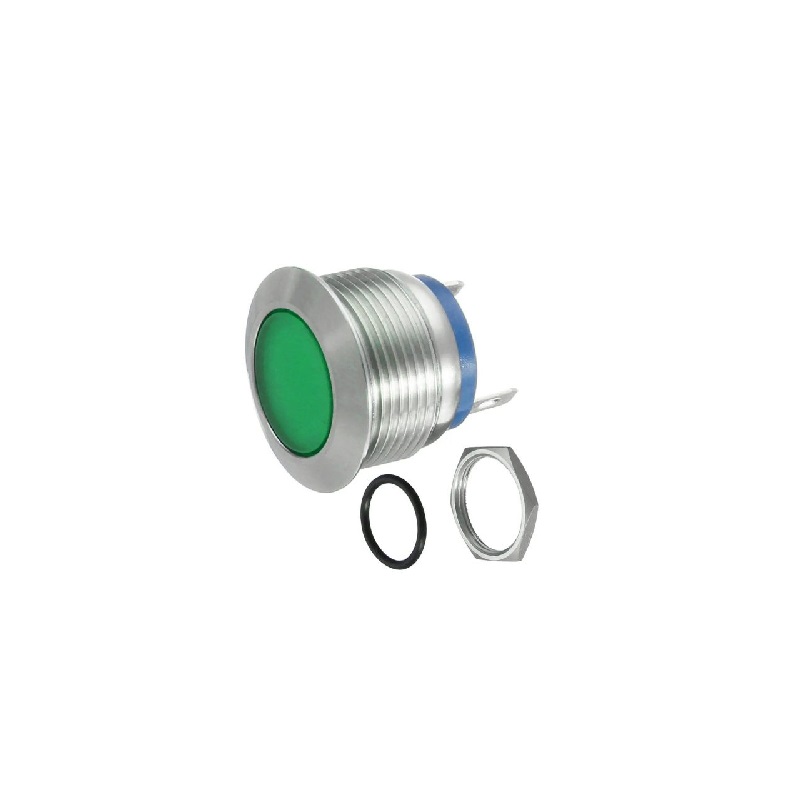

The 22MM Green LED Metal Indicator is a robust and highly visible signal lamp tailored for industrial, automotive, and electrical control environments. Encased in a premium stainless steel body, this indicator offers excellent resistance to impact, vibration, and harsh environmental conditions. It is engineered to operate reliably across a 10V to 24V DC/AC voltage range, providing consistent performance for critical system status monitoring.
With an IP65 protection rating, this pilot lamp is fully dustproof and resistant to low-pressure water sprays, making it suitable for both indoor control panels and outdoor-facing instrumentation. Its 22MM standard mounting diameter ensures it can be seamlessly integrated into existing industrial cutouts, providing a sleek, professional look to any control dashboard.
Safety Note: While this unit operates at lower voltage levels (10V-24V), always ensure the installation area is clean of metallic debris before mounting to prevent unintended shorts. Ensure the included gasket is properly seated before tightening the rear nut to maintain the IP65 environmental seal.
To help you ensure a secure and weather-resistant installation in your equipment, please refer to the standard panel-mount assembly sequence:
Applications
- 12V/24V industrial automation and control panels
- Automotive and marine dashboard “System Ready” or “Power On” indicators
- Machinery operational status monitoring
- Custom instrumentation and panel prototyping
- Outdoor electronic enclosures and control consoles
Features
- Stainless Steel Construction: High-quality material provides exceptional mechanical strength and corrosion resistance.
- Wide Voltage Compatibility: Optimized for stable operation between 10V and 24V DC/AC.
- Environmental Resilience: IP65-rated design provides professional-grade protection against dust and moisture ingress.
- Industrial Standard: 22MM mounting diameter is compatible with most standard industrial panel interfaces.
Package Includes
- 1 x 22MM Green LED Metal Indicator Light (10V-24V)
Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | 10V – 24V DC/AC |
| LED Glow Color | Green |
| Body Material | Stainless Steel |
| Mounting Hole Diameter | 22 mm |
| Waterproof Rating | IP65 |
| Weight | 27 g |
| Shipping Weight | 0.028 kg |
| Shipping Dimensions | 8 × 7 × 1 cm |
