Description

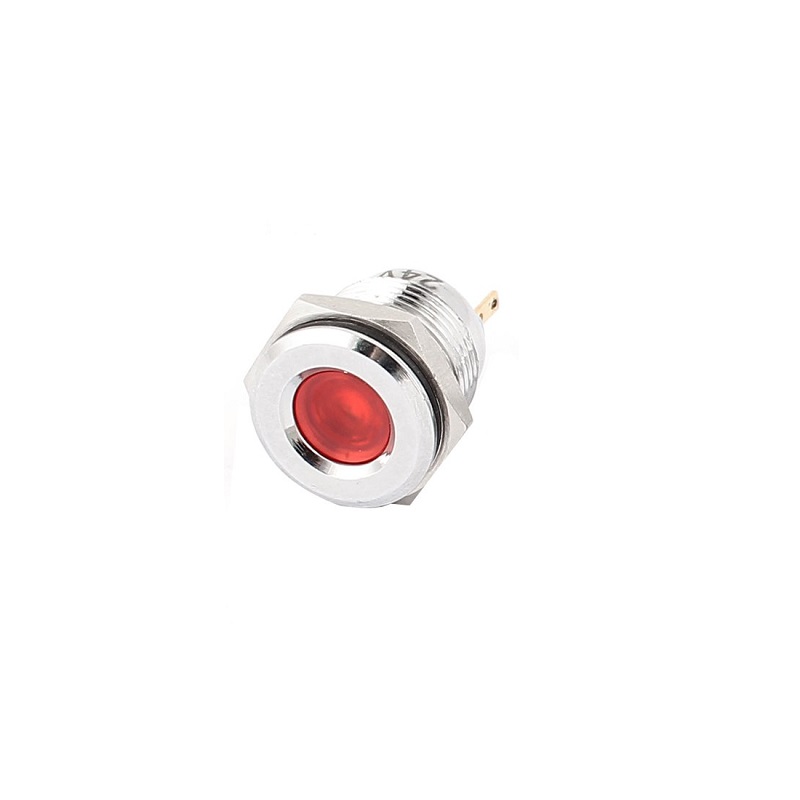

The 12MM Red LED Metal Indicator is a high-durability, professional-grade signaling component engineered for clear status monitoring in demanding industrial and electronic environments. Housed in a robust Stainless Steel Alloy 304 body, this indicator combines mechanical resilience with a clean, polished aesthetic, making it an ideal choice for control panels, heavy-duty machinery, and high-end electronic interfaces.
Featuring an IP65 protection rating, this lamp is fully dustproof and protected against low-pressure water ingress, ensuring long-term reliability. It comes pre-fitted with a 15CM cable for efficient, plug-and-play installation into an 11mm mounting hole. With a versatile 10V-24V operating range, this indicator is highly adaptable for diverse DC/AC electrical applications.
Installation Note: This device operates on 10V-24V. Always ensure your power supply is within this rated range before installation. Since LEDs are semiconductor devices, they are polarity-sensitive. Always verify the positive (+) and negative (-) connections before final wiring to ensure the lamp functions correctly.
Applications
- 10V-24V industrial control and distribution panels
- Machinery operational status monitoring
- Power availability and system activity notifications
- Custom control dashboards and instrumentation
- High-durability interfaces for electrical apparatus
Features
- Stainless Steel Housing: Premium 304 Alloy construction for superior mechanical strength and corrosion resistance.
- Environmental Resilience: IP65-rated, offering reliable protection against dust and moisture ingress.
- High-Visibility LED: Efficient red light output for clear and immediate status feedback.
- Ready-to-Install: Includes a 15CM pre-fitted cable to significantly reduce assembly time.
- Versatile Power: Operates efficiently across a wide 10V-24V voltage range.
Package Includes
- 1 x 12MM Red LED Metal Indicator Light (10V-24V) with 15CM Cable
Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | 10V – 24V DC/AC |
| Rated Current | 10 mA |
| LED Glow Color | Red |
| Mounting Hole Diameter | 11 mm |
| Body Material | Stainless Steel Alloy 304 |
| Protection Standard | IP65 |
| Weight | 9 g |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 9 × 7 × 1 cm |
