Description

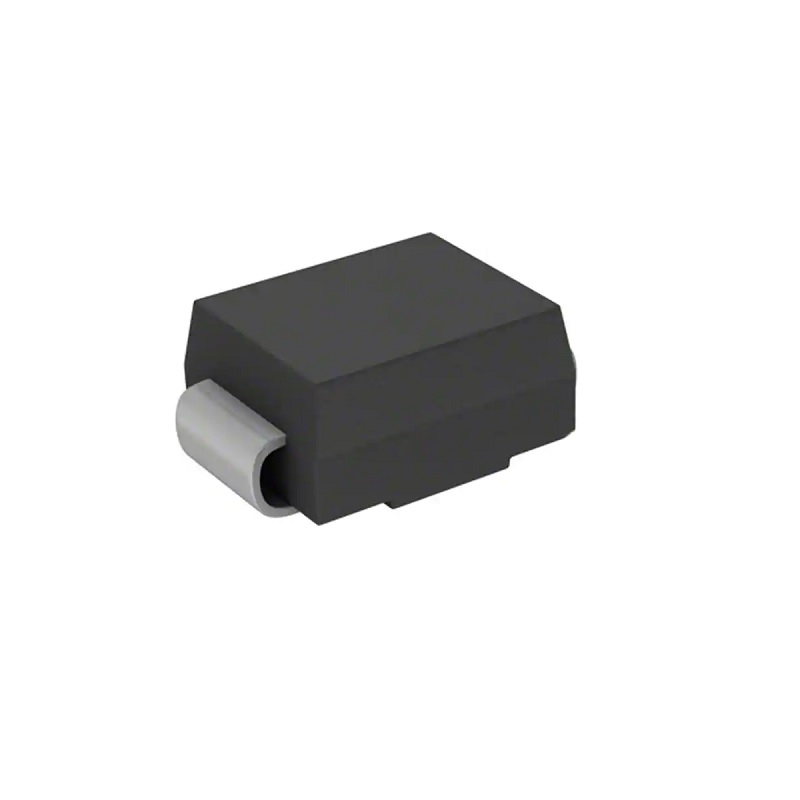

The ES2BA-13-F is a high-performance Fast/Ultrafast Recovery Diode engineered for high-efficiency power conversion and circuit protection. Designed with a glass-passivated die construction, this diode is ideal for rectifying AC supplies to stable DC, while also functioning as a robust transient voltage suppressor to protect sensitive electronics from voltage surges and transients.
Featuring a 25ns super-fast recovery time, the ES2BA-13-F maximizes efficiency in high-frequency applications. Its 50A surge overload rating provides exceptional durability under stress, and the package is specifically designed for automated assembly, making it a reliable choice for professional PCB manufacturing. This diode is a perfect solution for power supply designs, signal rectification, and high-speed protection circuitry.
Key Features
- Ultrafast Recovery: 25ns recovery time for high-efficiency switching
- High Surge Protection: Up to 50A peak surge overload rating
- Robust Design: Glass-passivated die construction for long-term stability
- Manufacturing Friendly: Ideally suited for high-speed automated PCB assembly
- Dual-Purpose: Efficient AC-to-DC rectification and effective transient voltage suppression
Applications
- High-speed switching power supplies
- AC-to-DC power conversion
- Transient voltage protection for sensitive electronics
- Freewheeling diode for inductive loads
- Automated electronic assembly and mass production
Package Includes
- 1 x ES2BA-13-F Fast/Ultrafast Diode
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | ES2BA-13-F |
| Diode Type | Fast/Ultrafast Recovery |
| Reverse Voltage (Vr) | 100 V |
| Forward Current (If) | 2 A |
| Forward Voltage Drop (Vf) | 920 mV |
| Recovery Time (trr) | 25 ns |
| Peak Surge Current | 50 A |
| Operating Temp. Range | -55°C to 150°C |
