Description
The BZX55C10V is a high-precision small-signal Zener diode, designed to provide stable voltage regulation and signal clipping in electronic systems. Featuring a nominal Zener voltage range of 9.4V – 10.6V, this component is ideal for maintaining consistent reference voltages in sensitive control and power management circuits.
Engineered for professional performance, the BZX55C10V maintains an extremely low reverse leakage current of < 0.1μA and robust thermal tolerance with a maximum junction temperature of 175°C. These features ensure reliable operation in demanding industrial environments. This pack of 40 units offers an excellent value-to-performance ratio, making it a perfect addition to your professional inventory for R&D labs, component maintenance, or small-batch manufacturing.
Key Features
- Precision Regulation: Stable Zener voltage range of 9.4V – 10.6V
- High Efficiency: Minimal reverse leakage current (< 0.1μA) for power-sensitive designs
- Thermal Robustness: Stable performance in harsh conditions up to 175°C
- Output Consistency: Low temperature coefficient (0.03 – 0.1 %/K) for steady output drift
- Value Bundle: Convenient 40-pack, optimized for maintenance and R&D requirements
Applications
- Voltage reference and stabilization stages
- Signal clipping and protective clamping
- Over-voltage protection in industrial automation
- Signal processing for control systems
- Laboratory prototyping and electronic repair
Package Includes

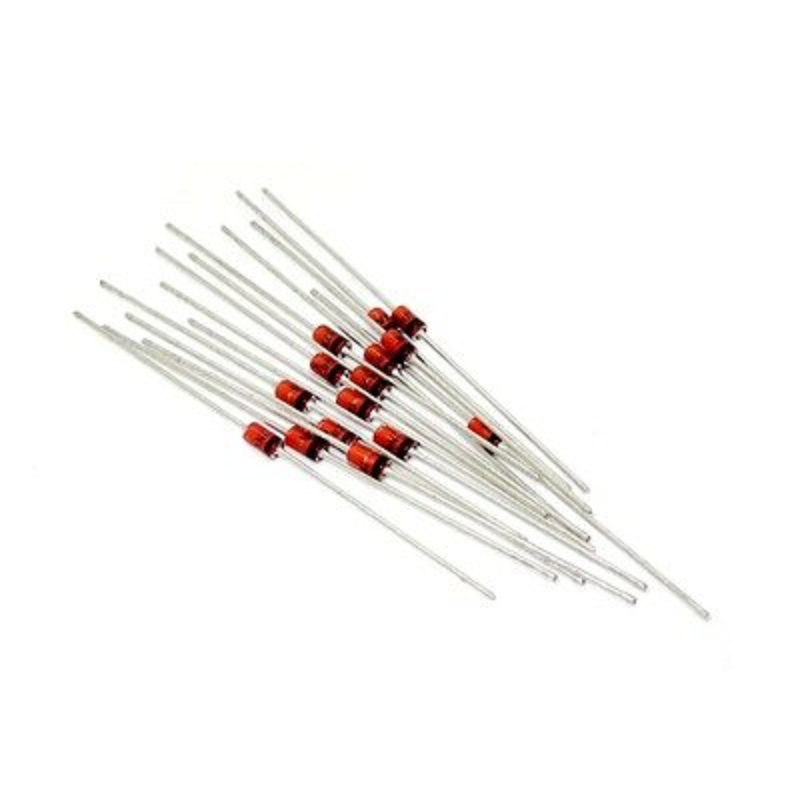

- 40 x BZX55C10V Zener Diodes
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | BZX55C10V |
| Zener Voltage Range | 9.4 V – 10.6 V |
| Power Rating | 0.5 W (1/2W) |
| Reverse Leakage Current | < 0.1 μA |
| Max. Junction Temp | 175°C |
| Quantity | Pack of 40 |
