SPIDER Automation 3-Phase Brushless Motor Controller | 15–36V 500W Sensorless BLDC Driver | For High-Performance Motor Control
Description
The SPIDER Automation 3-Phase Brushless Motor Controller Driver Board is a compact electronic controller designed for three-phase sensorless brushless DC (BLDC) motors. It operates from a 15–36V DC supply and supports motor power up to 500W with a specified current capacity of up to 15A.
The controller provides multiple speed-control methods, including voltage-based speed regulation, single-chip control and PWM speed regulation. This flexibility allows the board to be integrated into different motor-control architectures depending on the control requirements of the application.
Integrated overload protection, locked-rotor protection and over-current protection provide protection against several abnormal operating conditions. These features make the controller suitable for embedded motor-control systems where compact size, adjustable speed control and protection functions are required.
As a sensorless BLDC controller, compatibility and driving performance can vary depending on the characteristics of the specific three-phase motor. If the motor exhibits startup jitter, unstable speed, excessive no-load current, reverse-rotation problems, reduced efficiency or difficulty starting under load, the resistance and capacitance values on the driver board may need to be adjusted according to the actual motor characteristics.
Proper adjustment should therefore be carried out during system development and testing to obtain stable startup, suitable speed regulation and the required operating performance for the selected motor.
Key Features
- 3-Phase BLDC Control: Designed for three-phase sensorless brushless DC motors.
- Sensorless Operation: Intended for compatible sensorless BLDC motor configurations.
- 15–36V DC Supply: Supports a wide DC input-voltage range.
- 500W Power Capacity: Supports motor systems up to the specified 500W power capacity.
- 15A Current Capacity: Provides up to 15A current capacity according to the supplied specification.
- PWM Speed Regulation: Supports PWM-based motor speed control.
- Voltage Speed Regulation: Provides voltage-based speed adjustment.
- Single-Chip Control: Supports speed regulation through a single-chip control system.
- Overload Protection: Helps protect the controller during excessive load conditions.
- Locked-Rotor Protection: Provides protection when the motor is unable to rotate normally.
- Over-Current Protection: Helps protect the driver against excessive current conditions.
- Wide Operating Temperature: Specified for operation from -40°C to +85°C.
- Compact Construction: Small controller board suitable for space-constrained embedded systems.
Benefits
- Flexible Motor Control: Multiple speed-control methods allow integration with different control architectures.
- High-Power Capability: Supports BLDC motor applications requiring up to 500W of motor power.
- Wide Voltage Compatibility: The 15–36V operating range accommodates a variety of DC motor power systems.
- Integrated Protection: Overload, locked-rotor and over-current protection help improve system protection.
- Compact Integration: The small board format makes it suitable for embedded motor-control assemblies.
- Adjustable Drive Characteristics: Resistance and capacitance values can be adjusted when required to optimize operation for a compatible motor.
Speed Control Methods
- Voltage Speed Regulation: Motor speed can be controlled through an appropriate voltage-based control method.
- PWM Speed Regulation: PWM control can be used for electronic speed adjustment.
- Single-Chip Control: The controller can be integrated with a single-chip control architecture for speed regulation.
Motor Compatibility & Drive Adjustment
This controller is designed for three-phase sensorless BLDC motors, but the supplied product information specifically indicates that it is not universally suitable for every three-phase sensorless brushless motor without adjustment.
Motor and controller characteristics can affect startup and running performance. Depending on the motor, the system may exhibit startup vibration or jitter, unstable speed, excessive no-load operating current, reverse-rotation behavior, reduced efficiency or difficulty starting when a load is connected.
When such conditions occur, the resistance and capacitance values of the driver circuit can be adjusted according to the actual motor characteristics to obtain a more suitable driving response. Motor-controller compatibility should therefore be verified under the intended operating conditions before final system deployment.
Protection Functions
- Overload Protection: Provides protection during excessive motor-load conditions.
- Locked-Rotor Protection: Helps protect the controller when the motor is stalled or unable to rotate.
- Over-Current Protection: Provides protection against excessive current conditions.
Applications
- BLDC Motor Systems: Three-phase sensorless brushless motor control applications.
- Industrial Motor Equipment: Embedded BLDC motor-control systems requiring adjustable speed regulation.
- Automation Systems: Motorized mechanisms using compatible sensorless three-phase BLDC motors.
- Embedded Motor Controllers: Microcontroller and PWM-controlled motor applications.
- High-Power Motor Prototypes: Development systems requiring up to 500W motor-control capability.
- Variable-Speed Drives: Applications requiring voltage or PWM-based BLDC speed control.
Package Includes

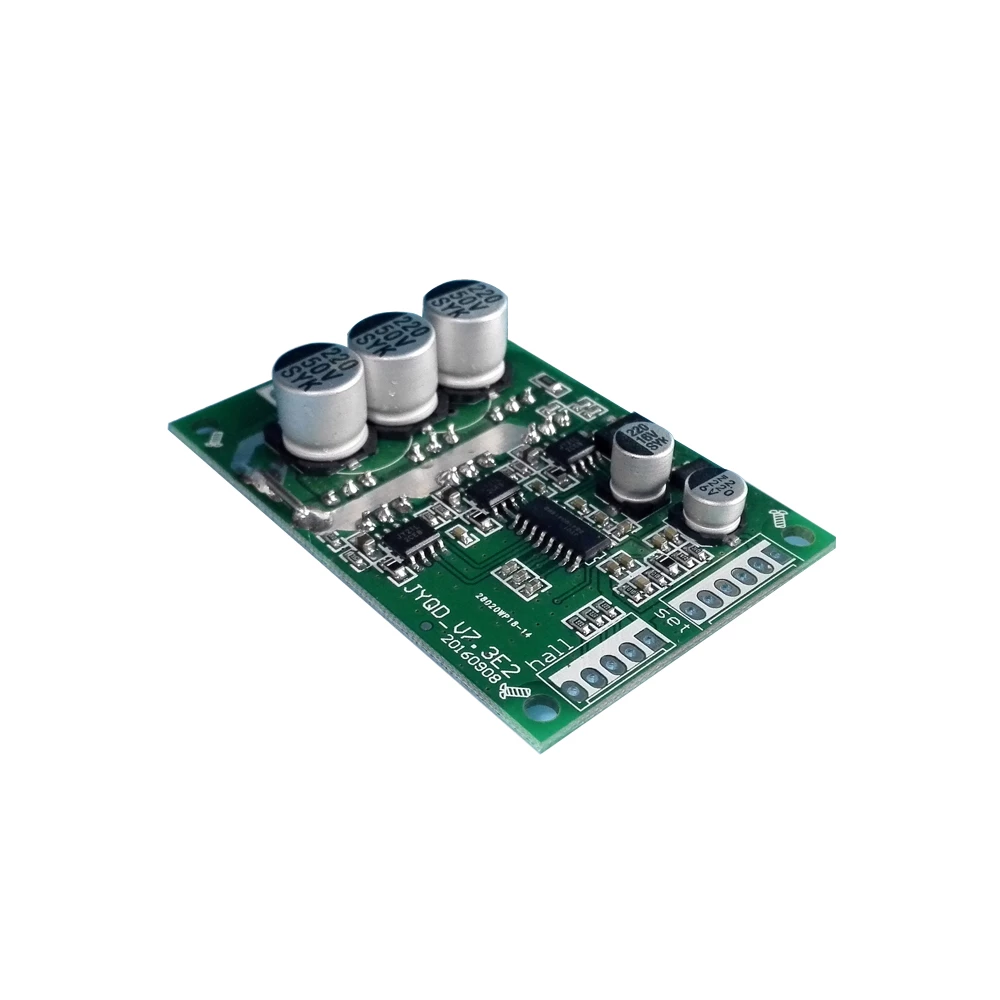

- 1 × DC 15V–36V 15A 500W Brushless Motor Controller
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | 3-Phase Brushless Motor Controller Driver Board |
| Motor Type | 3-Phase Sensorless Brushless DC Motor (BLDC) |
| Number of Phases | 3-Phase |
| Voltage Rating | 15–36V DC |
| Operating Voltage | 15–36V DC |
| Current Rating | 15A |
| Current Capacity | 15A |
| Power Capacity | 500W |
| Speed Control | Voltage Regulation, Single-Chip Control and PWM Speed Regulation |
| PWM Speed Control | Supported |
| Voltage Speed Regulation | Supported |
| Single-Chip Control | Supported |
| Overload Protection | Yes |
| Locked-Rotor Protection | Yes |
| Over-Current Protection | Yes |
| Operating Temperature | -40°C to +85°C |
| Board Length | 60mm |
| Board Width | 42.5mm |
| Board Height | 10mm |
| Overall Size | 62 × 42.5 × 17mm |
| Product Weight | 29g |
| Shipping Weight | 0.03kg |
| Shipping Dimensions | 7 × 5 × 1cm |
