Description

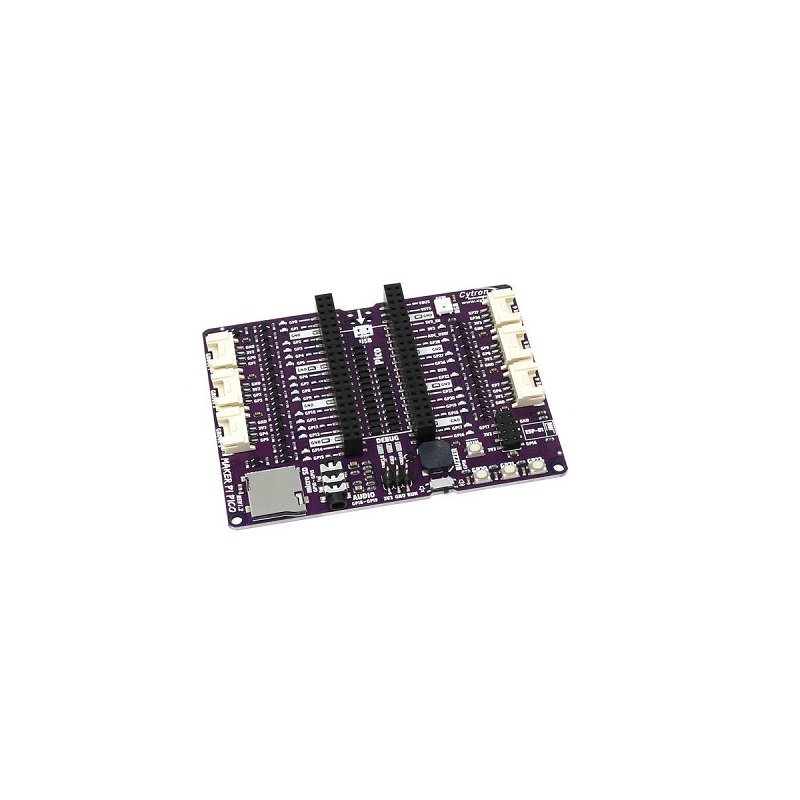

The Maker Pi Pico Base is a robust, feature-rich expansion board specifically engineered to maximize the industrial prototyping capabilities of the Raspberry Pi Pico. By consolidating all GPIO access onto clearly labeled 20-way pin headers and providing integrated LED status indicators for every pin, this board transforms the Pico from a bare-metal microcontroller into a sophisticated, diagnostic-ready development platform. Its design eliminates the need for manual soldering, allowing engineers to transition rapidly from concept to functional validation.
The board serves as a centralized hub for robotics and automated systems, featuring six dedicated Grove ports for solder-free sensor integration and three programmable push buttons for custom user-interface logic. With a comprehensive pinout diagram silkscreened on the underside for immediate reference, the Maker Pi Pico Base is an essential tool for firmware engineers and industrial designers working with CircuitPython, MicroPython, or C/C++ environments.
Key Features
- Streamlined Connectivity: Provides access to all Raspberry Pi Pico GPIO pins via clearly labeled headers, eliminating complex wiring harnesses.
- Integrated Diagnostic Array: Features dedicated LED indicators for every GPIO pin, facilitating real-time logic monitoring and troubleshooting.
- Enhanced Control Interface: Includes three programmable push buttons and a dedicated hardware Reset button for rapid development workflows.
- Modular Expansion: Six dedicated Grove ports support high-speed, solder-free connection of industrial-grade sensors and peripheral modules.
- Rapid Deployment: Designed for “out-of-the-box” operation; connects to any computer via USB for drag-and-drop firmware deployment.
- Clear Reference Design: The PCB underside features a comprehensive pinout schematic, ensuring correct wiring in high-density integration projects.
Benefits for Industrial Integration
- Accelerated Prototyping: Eliminates the time-consuming process of breadboarding and soldering, allowing for immediate focus on control logic and system architecture.
- Reduced Development Overhead: Integrated LEDs and buttons significantly shorten the debugging cycle, enabling faster iteration of custom automation firmware.
- Modularity & Maintenance: The use of Grove-compatible interfaces simplifies component swapping and maintenance in custom test fixtures or control nodes.
- Robust Compatibility: Supports all Raspberry Pi Pico-compatible programming languages, providing flexibility across diverse embedded system requirements.
Applications
- Custom Automation Fixtures: An ideal control hub for validating industrial components or managing automated assembly sequences.
- Environmental Sensing Nodes: Facilitates rapid setup of data acquisition systems using modular sensors for industrial climate or process monitoring.
- Robotics Development: Provides a stable, modular base for developing autonomous mobile platforms and high-precision actuated mechanisms.
- Embedded HMI: Serves as a reliable interface for manual input and status verification in specialized factory equipment.
Package Includes
- 1 x Cytron Maker Pi Pico Base (Note: Raspberry Pi Pico not included)
Specifications
| Parameter | Specification |
|---|---|
| Item Type | Development Board Expansion |
| Input Voltage | 4.5V to 5.5V DC |
| GPIO Indicator | Integrated LED Array |
| Peripheral Ports | 6 x Grove Ports |
| User Interface | 3 x Programmable Buttons, 1 x Reset Button |
| Dimensions | 98 (L) x 68 (W) mm |
