Description

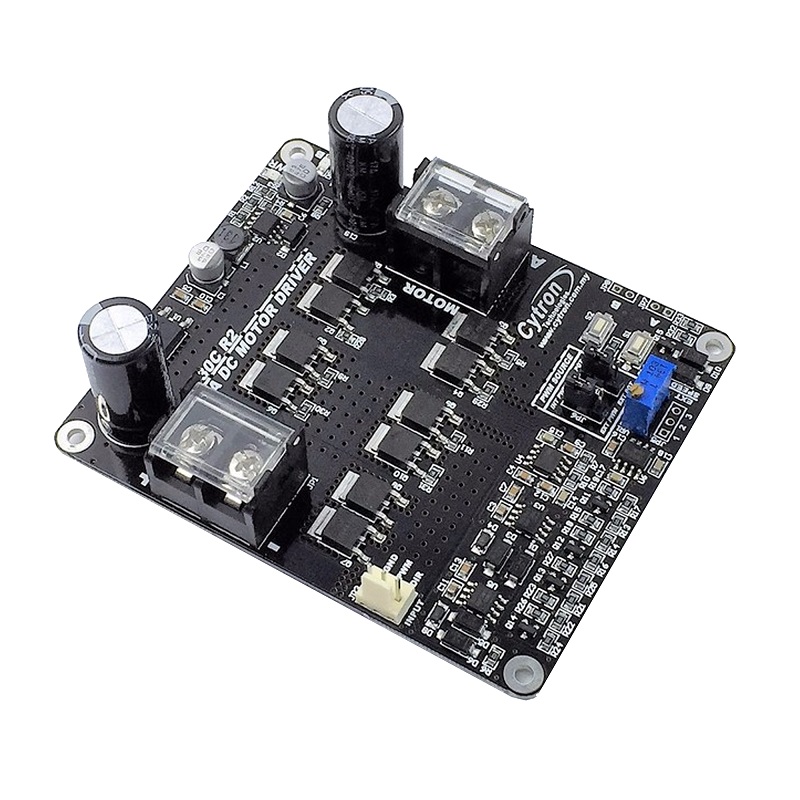

The Cytron 30Amp DC Motor Driver (MD30C R2) is a robust, single-channel motion control solution engineered for medium-to-high-power brushed DC motors. Built on a fully integrated NMOS H-Bridge architecture, this driver delivers exceptional power efficiency and rapid switching response times, capable of sustaining 30A of continuous current and 80A peak surges without the requirement for external heat sinks or cooling fans.
Designed for both standalone operation and complex system integration, the MD30C R2 features an onboard PWM generator, allowing for speed and direction control via simple manual switches and a potentiometer. For advanced industrial applications, it seamlessly accepts external PWM and DIR signals, supporting both locked-antiphase and sign-magnitude control modes. With added reverse-polarity protection and broad logic-level compatibility (3.3V and 5V), the MD30C R2 provides a reliable, high-integrity drive solution for mission-critical automation and robotics.
Key Features
- High-Power Density: Handles 30A continuous and 80A peak current in a compact, passively cooled design.
- Enhanced Safety: Includes integrated reverse-polarity protection to prevent hardware damage during installation or power source switching.
- Standalone & Logic Control: Features an onboard PWM generator for manual speed and direction control, with high-performance pads for external controller integration.
- Universal Logic Compatibility: Control inputs are fully compatible with both 3.3V and 5V logic architectures.
- Advanced NMOS Design: Optimized for higher efficiency and faster switching, reducing thermal overhead in high-duty-cycle applications.
- Flexible PWM Modes: Supports both locked-antiphase and sign-magnitude control, allowing for precise motion profiling in various automation contexts.
Benefits for Industrial Integration
- Maintenance-Free Reliability: Passive cooling design eliminates potential failure points associated with mechanical fans and heat sink maintenance.
- Simplified Setup: Manual control capabilities allow for immediate drive-train validation without the need for firmware development.
- Deployment Versatility: Wide operating voltage range (5V–30V) facilitates integration across diverse power delivery systems.
- Robust Electrical Integrity: Reverse-polarity protection provides critical safeguards against common wiring errors in complex industrial assemblies.
Applications
- Automated Guided Vehicles (AGV): Reliable, high-torque drive solution for mobile logistics and warehouse transport platforms.
- Industrial Actuation: Ideal for controlling linear actuators, conveyors, and automated material handling machinery.
- Mobile Robotic Bases: Robust drive hub for heavy-duty rovers and remote-operated industrial platforms.
- Custom Automation Jigs: Easily integrated into test benches and assembly fixtures requiring manual or automated variable speed control.
Package Includes
- 1 x Cytron 30Amp DC Motor Driver (MD30C R2)
- 1 x Fitting Accessories Set
Specifications
| Parameter | Specification |
|---|---|
| Item Type | Single-Channel DC Motor Driver |
| Operating Voltage | 5V to 30V DC |
| Continuous Current | 30A |
| Peak Current | 80A |
| Control Interface | Onboard PWM Generator or External PWM/DIR |
| Logic Compatibility | 3.3V and 5V |
| Dimensions | 94 x 79 x 30 mm |
