Description

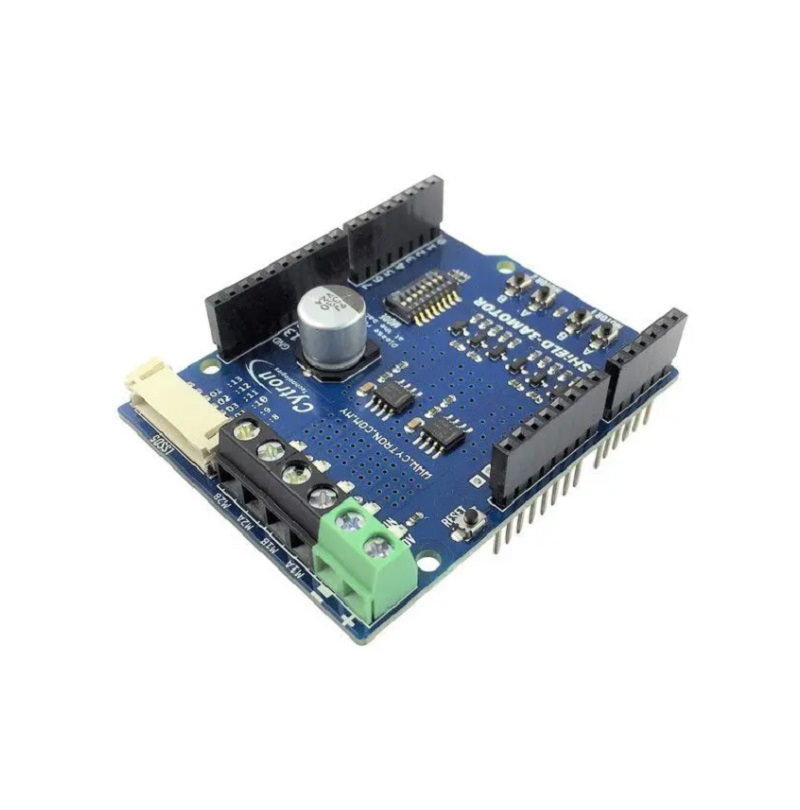

The Cytron Dual-Channel Motor Driver Shield is a robust, high-efficiency motion control solution optimized for professional-grade robotics and automation projects. Engineered around the reliable DRV8871 SMD IC, this shield provides seamless, bidirectional control for two brushed DC motors, making it an essential component for differential drive systems, automated mobile platforms, and precision mechatronic prototypes.
This shield stands out in its class by offering a 3A peak current capacity and 1.2A of continuous operation per channel, protected by an integrated auto-current limit system to safeguard against motor stalls and electrical surges. Designed for industrial-level compatibility, the board supports both 3.3V and 5V logic levels and is fully stackable, allowing for rapid integration with Arduino, Mega, Leonardo, and other industry-standard controller boards. Whether you are developing complex line-following logic or multi-axis automated actuators, the Cytron Motor Driver Shield provides the stable, predictable performance required for engineering excellence.
Note: Product images are for reference only. Please note that this shield does not feature reverse polarity protection for the motor supply; ensure correct wiring before powering the system.
Key Features
- Dual-Channel Bi-Directional Control: Independent drive capability for two brushed DC motors, supporting sophisticated maneuvering.
- Industrial Power Range: Wide motor voltage support from 7VDC to 30VDC, enabling use with a diverse range of industrial-grade power sources.
- Advanced Protection Architecture: Features automatic current limit protection, ensuring system integrity during high-torque startup or accidental stalls.
- Flexible Logic Interface: Compatible with both 3.3V and 5V logic levels, allowing for easy integration with modern microcontrollers.
- Modular Design: Stackable I/O header pins simplify hardware expansion, while the integrated LSS05 connector facilitates rapid deployment for autonomous line-following applications.
- Diagnostics & Testing: Includes onboard quick-test switches for both channels, allowing for efficient troubleshooting without requiring full system code execution.
Benefits
- Enhanced Reliability: The DRV8871-based design ensures consistent, high-efficiency power transmission in demanding automation cycles.
- Seamless Integration: Designed to stack directly onto standard Arduino-compatible mainboards, reducing assembly time and wiring complexity.
- Adaptable Operational Modes: Selectable DIP switches allow for configuration in either Signed Magnitude or Locked Anti-Phase modes to suit various control algorithms.
- Rapid Prototyping: Built-in diagnostic switches and standardized pinouts accelerate the validation phase of motion control development.
- High-Performance Scalability: Robust construction makes this shield a reliable foundation for scaling from initial lab prototypes to field-deployed autonomous systems.
Applications
- Autonomous Mobile Robotics: Perfect for line-following robots, differential drive platforms, and small automated guided vehicles (AGVs).
- Industrial Actuation: Reliable control for motorized flaps, automated sorting gates, and small-scale conveyor mechanisms.
- Prototyping & Education: A foundational component for validating motion control algorithms in mechatronics and engineering labs.
- Embedded Mechatronics: Suitable for precision control of custom jigs, laboratory test benches, and sensor-guided automated systems.
Package Includes
- 1 x 1.2Amp 7V-30V DC Motor Driver Shield for Arduino (2 Channels)
Specifications
| Parameter | Specification |
|---|---|
| Item Type | DC Motor Driver Shield |
| Motor Channels | 2 |
| Operating Voltage (Motor) | 7V to 30V DC |
| Continuous Current | 1.2A per channel |
| Peak Current | 3A per channel |
| Logic Compatibility | 3.3V / 5V |
| Control Modes | Signed Magnitude, Locked Anti-Phase |
