Description

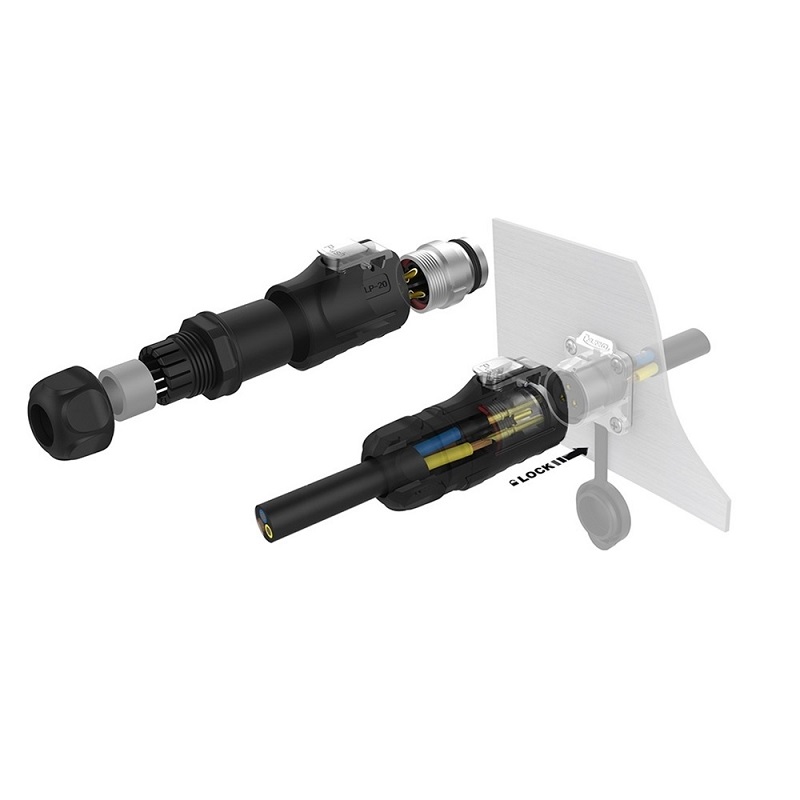

The LP-20 Male 4 Pin Waterproof Power Connector is a heavy-duty circular connector designed to provide secure and reliable power connections in harsh industrial and outdoor environments. Featuring a rugged plastic and metal shell construction, this connector delivers excellent mechanical strength, corrosion resistance, and long-term durability.
Designed with a 4-pin male configuration and solder-type terminals, the LP-20 connector ensures stable electrical performance and secure cable termination. With an IP67 waterproof and dustproof rating, it offers reliable protection against moisture, dust, and other environmental contaminants, making it ideal for demanding applications.
Rated for 500V and 20A, the connector is suitable for industrial automation, machinery, LED lighting systems, power distribution equipment, communication systems, robotics, and outdoor electrical installations where dependable high-current connectivity is required.
Note: Product images are shown for reference only. The actual product may vary slightly in appearance or manufacturer markings depending on production batch.
Features
- LP-20 industrial waterproof circular connector
- 4-pin male connector configuration
- IP67 waterproof and dustproof protection
- 500V rated operating voltage
- 20A current carrying capacity
- Solder-type terminals for secure wiring
- Plastic and metal hybrid shell construction
- Excellent mechanical strength and durability
- Reliable electrical performance in harsh environments
- Suitable for indoor and outdoor installations
Benefits
- Provides secure and reliable power connections
- Protects against dust, moisture, and water ingress
- Ideal for harsh industrial environments
- Supports high-current electrical applications
- Offers long service life with rugged construction
- Improves connection reliability in outdoor equipment
- Reduces maintenance requirements
- Suitable for demanding industrial and commercial applications
Applications
- Industrial Automation Systems
- Power Distribution Equipment
- Control Panels
- LED Lighting Systems
- Outdoor Electrical Installations
- Robotics
- Factory Automation
- Communication Equipment
- Machine Tools
- Test and Measurement Equipment
- Solar Power Systems
- Marine Electronics
- Electric Vehicles
- Industrial Sensors
- Automation Control Cabinets
- Portable Industrial Equipment
- Heavy-Duty Electrical Connections
- Power Supply Systems
- Embedded Industrial Electronics
- General Waterproof Power Connections
Package Includes
- 1 x LP-20 Male 4 Pin Waterproof Power Connector (Plastic + Metal Shell, Solder Type, IP67, 500V, 20A)
Specifications
| Parameter | Specification |
|---|---|
| Product Name | LP-20 Male 4 Pin Waterproof Power Connector |
| Model | LP-20 |
| Connector Type | Circular Waterproof Power Connector |
| Connector Gender | Male |
| Number of Pins | 4 |
| Termination Type | Solder |
| Shell Material | Plastic + Metal |
| Ingress Protection | IP67 |
| Rated Voltage | 500 V |
| Rated Current | 20 A |
| Operating Temperature | -40°C to +80°C |
| Shipping Weight | 0.05 kg |
| Shipping Dimensions | 12 × 10 × 4 cm |
