Description

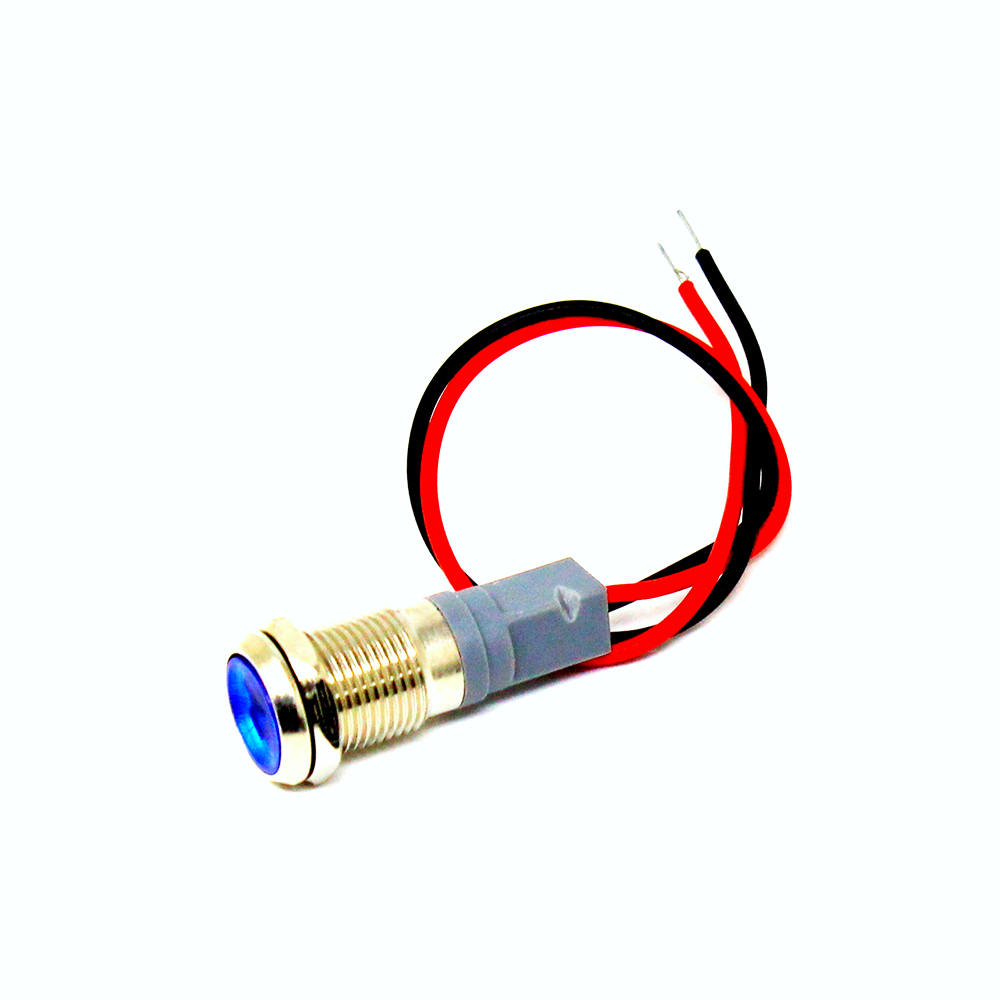

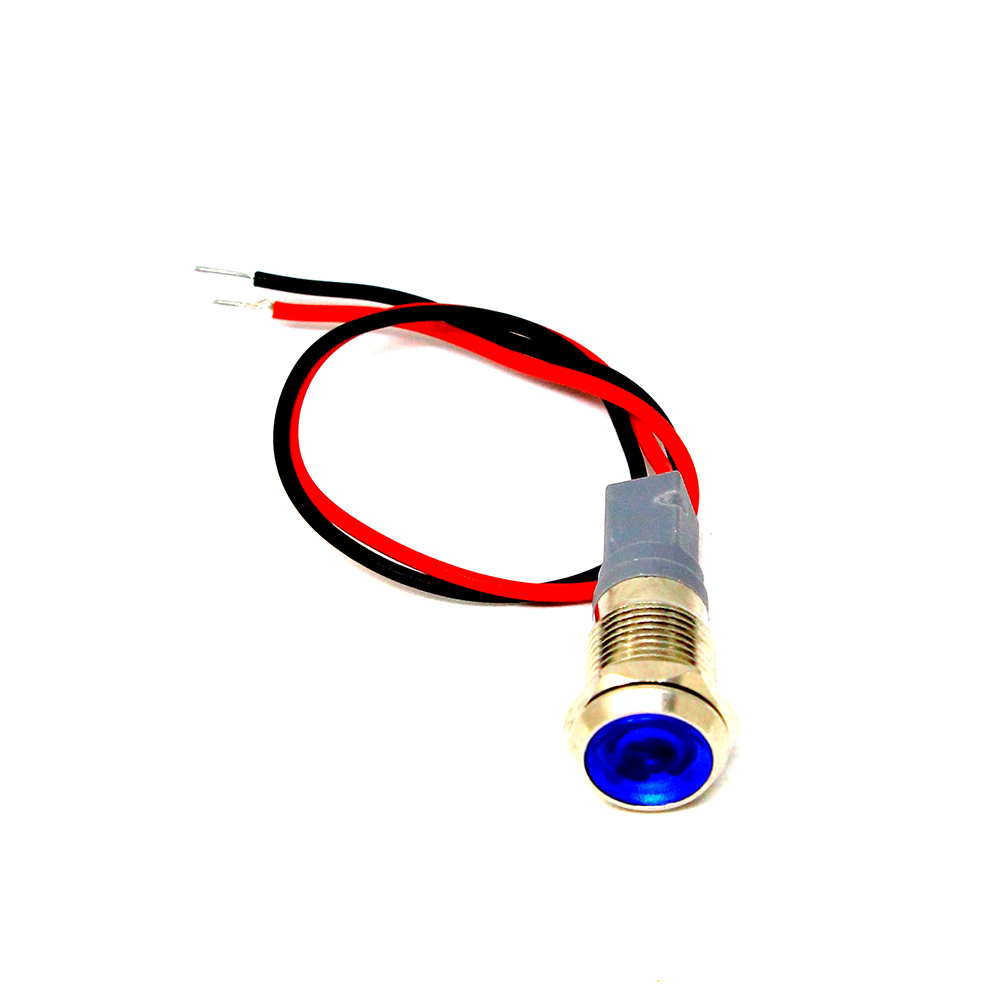

The 10MM Blue LED Metal Indicator is a compact, high-durability signal lamp designed for precision status monitoring in tight spaces. Constructed from premium Stainless Steel Alloy 304, this indicator offers excellent resistance to corrosion, impact, and mechanical shock, ensuring a professional and long-lasting finish for your equipment.
Operating efficiently within a 3V-9V DC/AC range, this unit includes a 14CM pre-wired cable for streamlined installation. With an IP65 ingress protection rating, it provides a reliable defense against dust and low-pressure water, making it suitable for automotive dashboards, custom electronics, and industrial control panels.
Applications
- Automotive, marine, and motorcycle dashboard signaling
- 3V-9V low-voltage control and automation panels
- Power availability and diagnostic status monitoring
- Custom electronic instrumentation and interface illumination
- Small-scale electronic enclosure status monitoring
Features
- Premium Build: Crafted from Stainless Steel Alloy 304 for superior durability and a sleek aesthetic.
- Integrated Wiring: Pre-attached 14CM cable simplifies the wiring process in cramped installations.
- Environmental Resilience: IP65-rated, ensuring the indicator remains protected against dust and moisture ingress.
- Versatile Voltage: Optimized for stable performance between 3V and 9V DC/AC.
Package Includes
- 1 x 10MM Blue LED Metal Indicator Light (3V-9V) with 14CM cable
Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | 3V – 9V DC/AC |
| Rated Current | 10 mA |
| LED Glow Color | Blue |
| Mounting Hole Diameter | 11 mm |
| Body Material | Stainless Steel Alloy 304 |
| Protection Standard | IP65 |
| Weight | 9 g |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 9 × 7 × 1 cm |
