Description

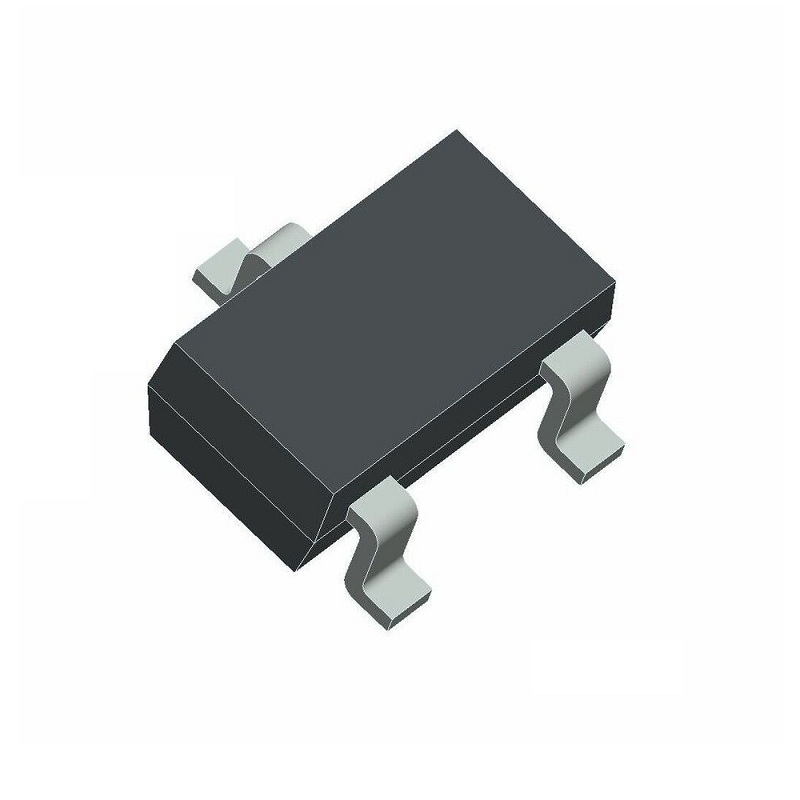

The BC847 is a versatile NPN general-purpose transistor, engineered for high-performance signal amplification and small-scale switching. Its compact surface-mount (SMD) SOT-23 design makes it an industry-standard choice for modern, high-density PCB layouts where space efficiency is a primary design constraint.
Featuring a wide DC current gain (hFE) range of 110 to 800, the BC847 offers exceptional flexibility for varied circuit requirements, from low-power amplification to robust logic-level switching. With a maximum collector current of 100 mA and a wide operating temperature range of -65°C to +150°C, it provides the consistent performance and thermal reliability needed for professional consumer and industrial electronics. This pack of 15 units is a high-value essential for any R&D lab, repair facility, or production inventory.
Key Features
- Flexible Gain: DC current gain (hFE) of 110–800 for versatile circuit integration
- Compact SMD Package: Optimized for space-saving, high-density PCB designs
- Reliable Performance: 45V Vce rating suitable for a wide range of signal-level tasks
- Thermal Robustness: Operates reliably across a wide range of -65°C to +150°C
- Value Bundle: Convenient 15-pack for efficient inventory and production management
Applications
- Small-signal switching and general-purpose amplification
- Driver stages for indicator LEDs and low-power relays
- Portable consumer electronics and mobile devices
- Signal processing in industrial control systems
- Automated surface-mount PCB assembly
Package Includes
- 15 x BC847 NPN Transistor
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | BC847 |
| Polarity | NPN |
| Collector Current (Ic) | 100 mA |
| Gain (hFE) | 110 – 800 |
| Collector-Emitter Voltage (Vce) | 45 V |
| Mounting Type | Surface Mount (SMD) |
| Quantity | Pack of 15 |
