Description
The TNC Female Right-Angle PCB Mount Connector is a high-performance RF interface engineered for demanding applications that require vibration resistance and high signal integrity. Featuring a 90-degree right-angle orientation, this connector is ideal for space-constrained PCB layouts where horizontal cable entry is necessary. Utilizing a 7/16-28 threaded coupling mechanism, it provides a significantly more secure connection than standard bayonet-style connectors, making it the preferred choice for high-vibration industrial and communication environments.
This connector supports microwave frequencies up to 11 GHz, offering superior performance over standard BNC interfaces. It is constructed from a high-quality, nickel-plated copper body, ensuring excellent electrical conductivity and long-term environmental protection. Designed for through-hole PCB mounting, it provides a stable and reliable signal path for cellular infrastructure, aviation controls, and advanced telemetry systems.
Features
- Design: TNC Female (Jack), Right-Angle (90°) orientation
- Mounting: Through-hole PCB mount with solder-type termination

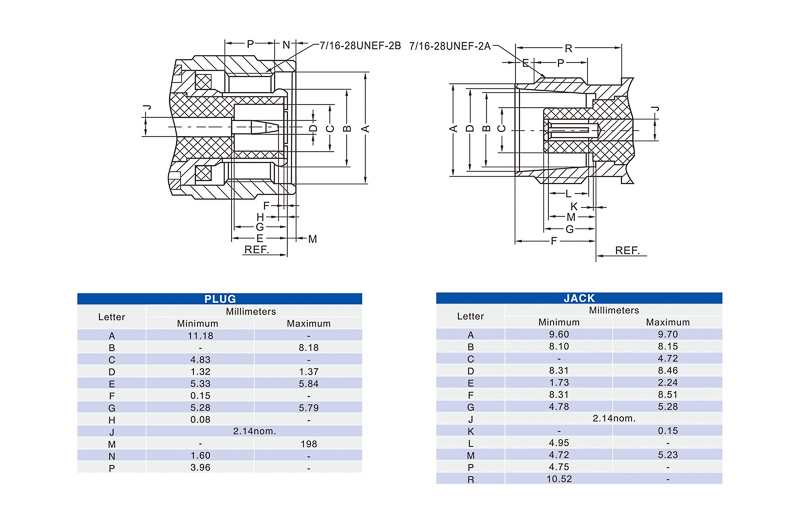

- Coupling: Threaded 7/16-28 interface for exceptional vibration resistance
- Performance: High-frequency operation up to 11 GHz
- Impedance: 50Ω optimized for RF systems
- Durability: Nickel-plated copper body built to withstand harsh conditions
- Reliability: Engineered in compliance with MIL-STD-202 and MIL-C-39012 standards
Benefits
- 90-degree profile optimizes vertical space in compact enclosures
- Threaded locking prevents signal loss due to mechanical shock or vibration
- High-grade copper material ensures a long operational lifespan (≥500 mating cycles)
- Provides a professional, OEM-quality signal interface
- Resilient in extreme thermal environments (-65°C to +145°C)
Applications
- Wireless Base Stations and Cellular Infrastructure
- Aviation and Aerospace Control Systems
- Telemetry, GPS, and Bluetooth Equipment
- Microwave Components and Radar Systems
- Machine-to-Machine (M2M) Industrial Communications
- Instrumentation and Security Devices
Package Includes
- 1 x 90-Degree TNC Female PCB Mount Through-Hole Connector
Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Right Angle (90°) |
| Gender | Female (Jack) |
| Mounting Type | PCB Mount / Through-Hole |
| Termination Style | Solder Type |
| Body Material | Copper |
| Body Plating | Nickel Plating |
| Impedance | 50 Ω |
| Frequency Range | 0 to 11 GHz |
| Operating Temperature | -65°C to +145°C |
