Description

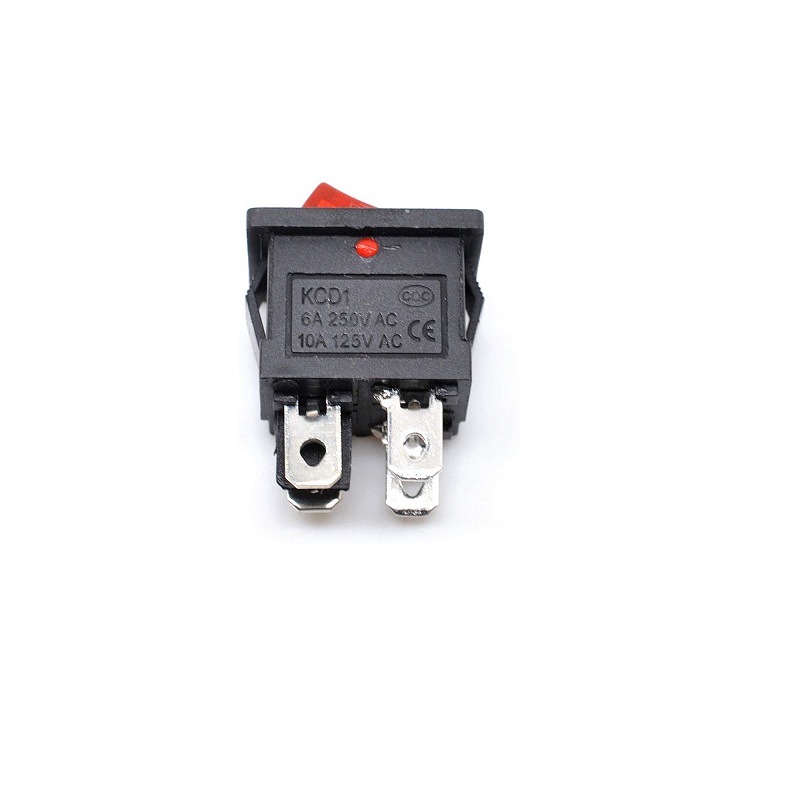

The KCD1 6A 250V SPDT Rocker Switch is a versatile, high-reliability power control solution ideal for a wide range of electronic projects, automotive systems, and household appliances. Featuring a convenient snap-in design with integrated mounting tabs, this switch secures firmly into panels or enclosures without the need for additional screws or hardware. Its clearly marked “I/O” positions and integrated illumination ensure users have instant visual confirmation of the circuit status during operation.
Engineered for endurance, this 3-pin SPDT (Single-Pole, Double-Throw) switch is rated for a load capacity of 6A at 250VAC (up to 10A at 125VAC). With a mechanical and electrical lifespan rated for 50,000 to 100,000 cycles, it provides consistent, long-term performance for robotics, DC motor control, industrial machinery, and marine applications. Its compact form factor makes it an excellent choice for modernizing control panels or custom DIY enclosures.
Key Features
- Design: 3-Pin SPDT (Single-Pole, Double-Throw) ON-OFF configuration
- Illumination: In-built light for clear status identification
- Mounting: Snap-in “tab” design for fast, tool-free installation
- Durability: Heavy-duty construction rated for 50,000–100,000 cycles
- Visibility: Clearly marked positions on the rocker for easy identification
- Performance: Versatile ratings (6A @ 250VAC / 10A @ 125VAC)
Technical Benefits
- SPDT architecture offers flexible wiring options, allowing for control over two separate circuits or modes
- Snap-in tabs significantly reduce assembly time and simplify maintenance in project enclosures
- Compact footprint fits standardized 17 x 13 mm panel cut-outs, making it a perfect upgrade or replacement
- Robust plastic and metal construction ensures mechanical strength and resistance to wear
- Reliable electrical performance supports a wide range of DC motor and general-purpose power loads
Applications
- Robotics & Automation: Power control for DC motors, servos, and automated systems
- Automotive & Marine: Ignition and auxiliary power switches for cars, boats, and motorcycles
- Appliances: Power management for water dispensers, humidifiers, and laboratory gear
- Industrial: Control interfaces for small-to-medium machinery and instrumentation
- DIY Projects: Power control for custom gadgets, enclosures, and prototypes
Package Includes
- 1 x KCD1 6A 250V SPDT Illuminated Rocker Switch
Specifications
| Parameter | Specification |
|---|---|
| Switch Type | Rocker Switch (KCD1) |
| Configuration | SPDT (3-Pin) |
| Max Rating | 6A @ 250V AC / 10A @ 125V AC |
| Panel Cut-Out | 17 x 13 mm |
| Dimensions | 21 x 15 x 16 mm |
| Switching Life | 50,000 – 100,000 Cycles |
