Description

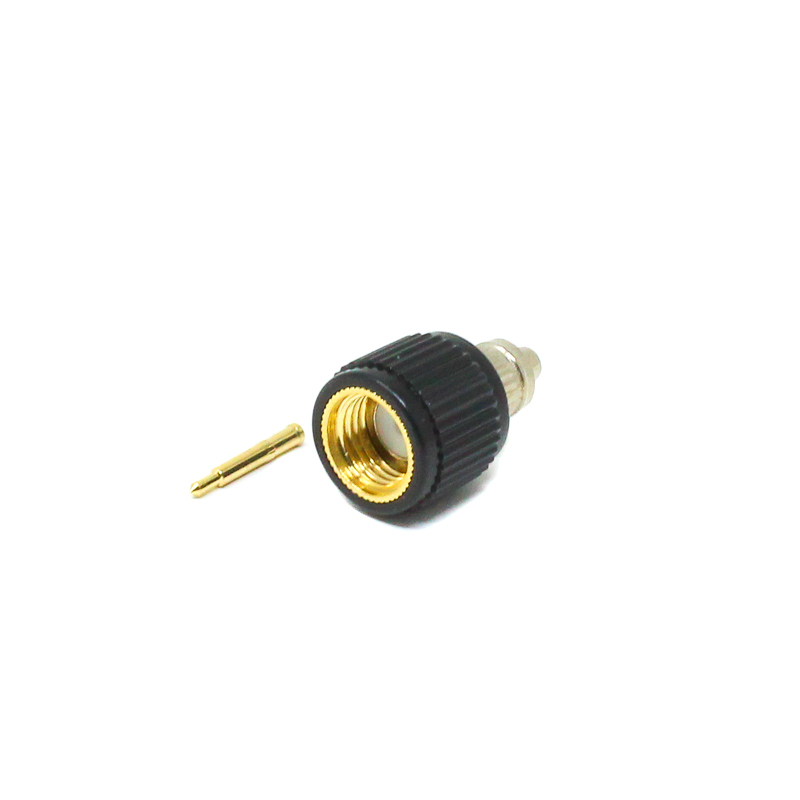

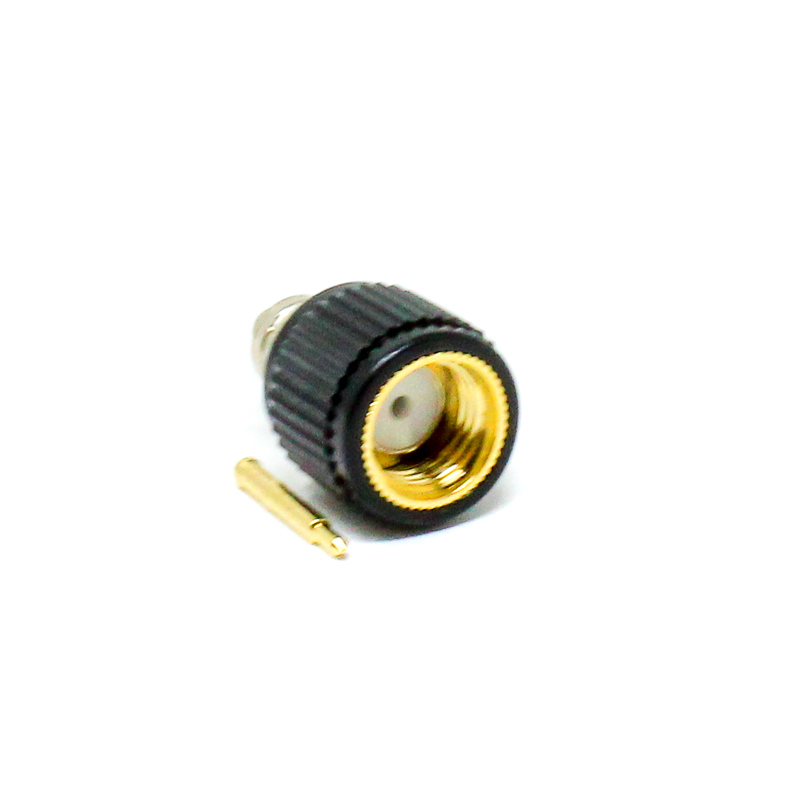

The SMA Male Straight Connector with a sleek black plastic shell is designed for high-performance RF cable assemblies. Featuring the precision 1/4-36 threaded coupling mechanism, this connector ensures a secure, low-loss connection for high-frequency applications up to 18 GHz (optimized for 0–6 GHz). The professional black plastic housing not only provides a modern, aesthetic finish but also offers additional protection, making it ideal for high-density wireless communication hardware, GPS modules, and industrial M2M systems.
Constructed with a robust copper body and nickel plating, this SMA plug delivers excellent signal integrity and mechanical durability. It is engineered to withstand extreme thermal environments (-55°C to +155°C) and rigorous vibration, meeting strict MIL-STD-202 standards. This connector is the perfect choice for professional-grade RF equipment where space, reliability, and low signal reflection are critical.
Key Features
- Design: SMA Male (Plug), Straight (180°) orientation with protective black plastic shell
- Mounting: Cable mount with professional solder-type termination
- Coupling: Threaded 1/4-36 interface for high-security, vibration-resistant connections
- Performance: Broadband operation (up to 18 GHz) with exceptionally low signal reflection
- Impedance: 50Ω standardized for professional RF/Microwave systems
- Build Quality: Copper body with durable nickel plating and aesthetic black housing
- Reliability: Engineered for ≥500 mating cycles and harsh environment compliance
Technical Benefits
- Threaded coupling mechanism prevents signal dropouts in high-vibration applications
- Solder-type termination ensures a high-integrity electrical bond for critical data paths
- Compact design perfectly suits handheld field devices and modern IoT hardware
- High-grade materials offer superior resistance to corrosion and mechanical wear
- Optimized for low VSWR and consistent performance across the specified frequency range
Applications
- Wireless Base Stations and Cellular Mobile Infrastructure
- GPS Tracking and Bluetooth Communication Modules
- WIFI and WiMAX Data/Broadband Networks
- Aerospace, Defense, and Field Instrumentation
- Industrial M2M Communications and Vehicle Tracking Systems
- Active and Passive RF Component Integration
Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Straight (180°) |
| Gender | Male (Plug) |
| Mounting Type | Cable Mount |
| Termination Style | Solder Type |
| Body Material | Copper |
| Body Plating | Nickel Plating |
| Impedance | 50 Ω |
| Frequency Range | 0 – 6 GHz (Supports up to 18 GHz) |
| Operating Temperature | -55°C to +155°C |
