Description

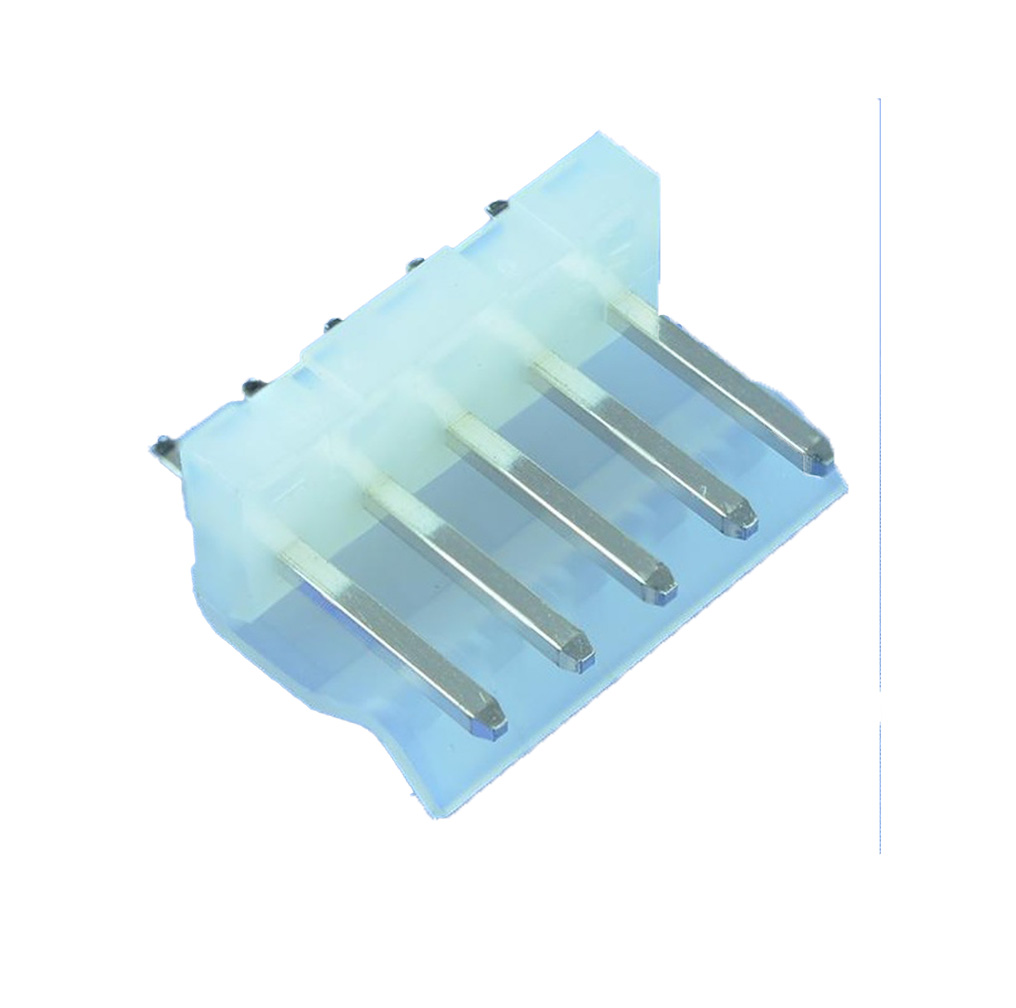

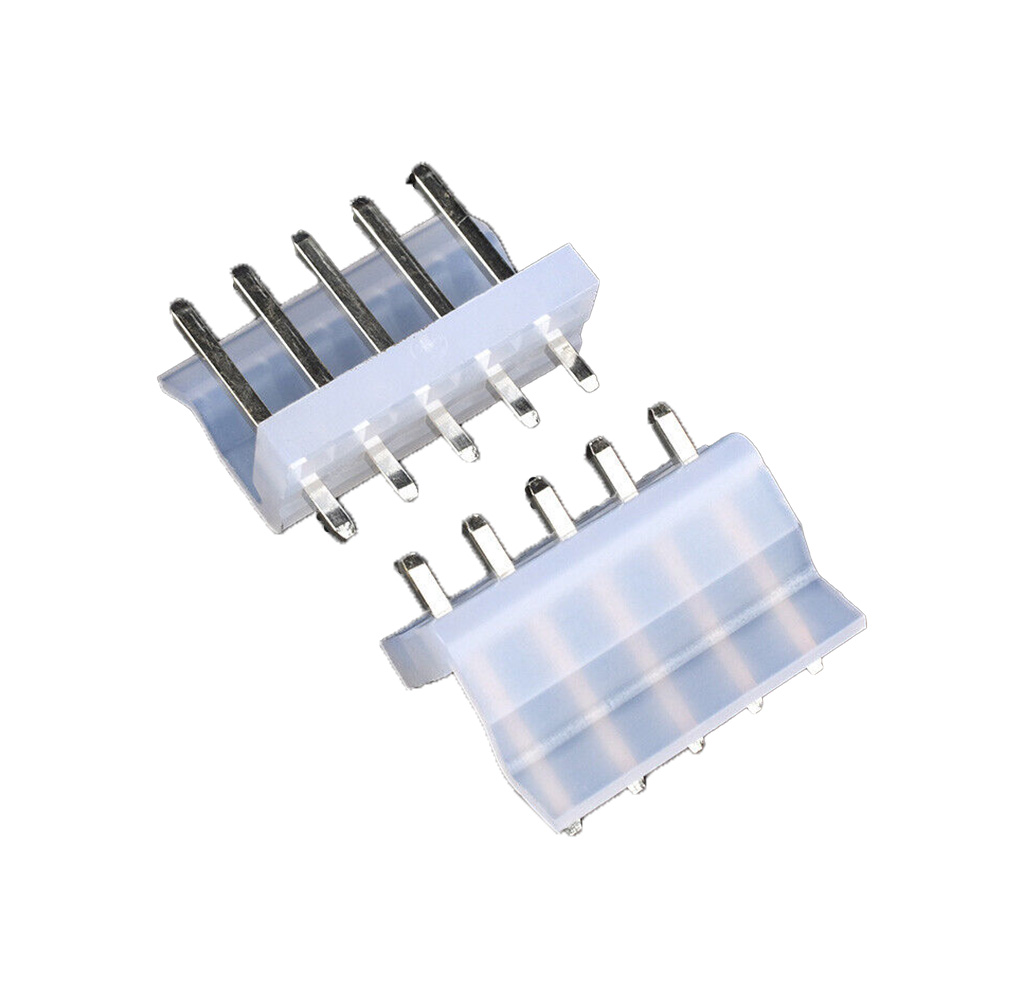

The 5.08-A 5-pin male wafer connector is a robust, high-performance solution designed for reliable PCB assemblies. Featuring a standard 5.08mm pitch and a vertical (straight) through-hole mounting design, this connector provides a secure interface for power and signal transmission. It is fully Molex compatible, ensuring broad versatility and easy integration into a wide array of industrial and consumer electronic systems.
Engineered for demanding applications, this component supports a high rated current of 7A and a rated voltage of 250V AC/DC. It maintains superior electrical integrity with an insulation resistance of 1000MΩ minimum and low contact resistance. With a wide operating temperature range of -40°C to +85°C and a high voltage withstand capacity of 1000V AC/min, it delivers consistent, long-term performance in varied environments.
Features
- Straight Orientation: Vertical design ideal for clear-path board-to-wire connections.
- Molex Compatible: Industry-standard footprint ensures seamless compatibility with existing components and systems.
- Through-Hole Mounting: Provides strong mechanical attachment and enduring electrical stability.
- High Electrical Capacity: Rated for 7A current, making it perfect for power distribution and high-demand circuits.
- Durable Engineering: Designed to withstand 1000V AC per minute, ensuring safety and robust performance.
- Environmental Versatility: Operates reliably across a wide temperature range of -40°C to +85°C.
Applications
- Power Distribution: Reliable interface for routing power to compact modules and subsystems.
- Industrial Automation: Suitable for connecting sensors, controllers, and actuators in control panels.
- Automotive Electronics: Secure connectivity for auxiliary lighting, wiring harnesses, and control units.
- Consumer Appliances: Standard choice for modular electrical connections in home and kitchen devices.
- Robotics & R&D: Essential for building high-current power interfaces in custom hardware builds.
Package Includes
- 1 x 5.08-A 5.08mm 5-pin Male Wafer Connector Through-Hole Straight (Molex Compatible)
Technical Specifications
| Parameter | Specification |
|---|---|
| MPN | 5.08-A |
| Rated Current | 7A AC/DC |
| Rated Voltage | 250V AC/DC |
| Contact Resistance | 20mΩ |
| Insulation Resistance | 1000MΩ min |
| Operating Temperature | -40°C to +85°C |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 5 × 4 × 2 cm |
